PAW GmbH & Co. KG
Böcklerstr. 11, 31789 Hameln, Germany
Phone: +49-5151-9856-0, Fax: +49-5151-9856-98
E-mail: info@paw.eu, Web: www.paw.eu

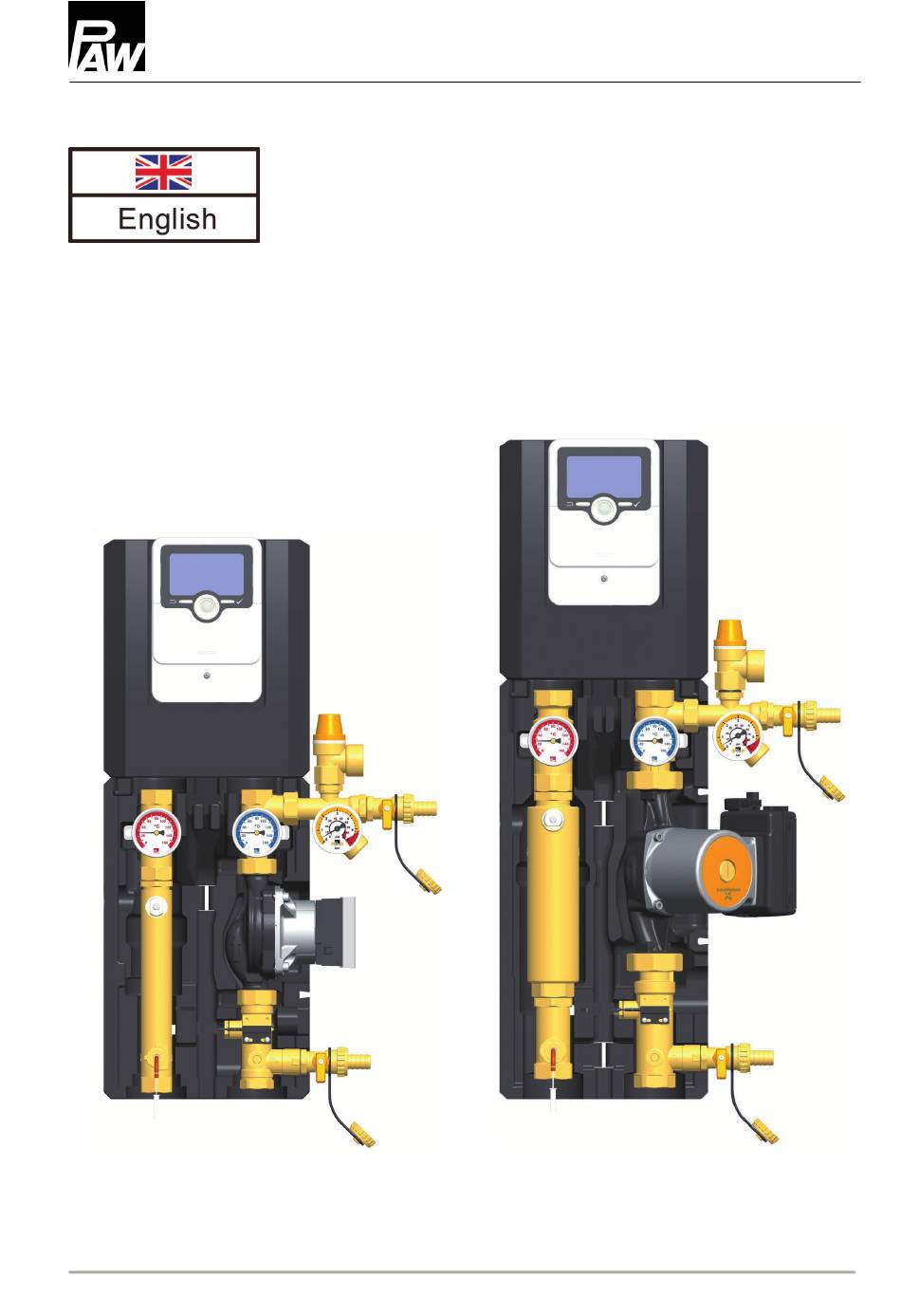

Installation and Operation Instructions
Solar stations
SolarBloC midi Premium - DN 20
SolarBloC maxi Premium - DN 25
with SC3.5 controller
SolarBloC midi Premium
SolarBloC maxi Premium
2020/08
997xx3xx-mub-en – V01
1
Advertisement
Table of Contents
Related Manuals for PAW SolarBloC midi Premium
Summary of Contents for PAW SolarBloC midi Premium
- Page 1 Böcklerstr. 11, 31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions Solar stations SolarBloC midi Premium - DN 20 SolarBloC maxi Premium - DN 25 with SC3.5 controller SolarBloC midi Premium SolarBloC maxi Premium 2020/08 997xx3xx-mub-en –...
- Page 2 Translation of the original instructions PAW GmbH & Co. KG We reserve the right to make technical changes without notice! Böcklerstraße 11 Printed in Germany – Copyright by PAW GmbH & Co. KG 31789 Hameln, Germany 997xx3xx-mub-en – V01 2020/08...
-
Page 3: Table Of Contents
Dimensional drawing SolarBloC midi Premium (DN 20) ..........25 Dimensional drawing SolarBloC maxi Premium (DN 25) ..........25 Pressure drop and pump characteristic curves SolarBloC midi Premium (DN 20) ..26 Pressure drop and pump characteristic curves SolarBloC maxi Premium (DN 25) ..26 Disposal ........................ -
Page 4: General Information
1 General Information 1 General Information Carefully read these instructions before installation and commissioning. Save these instructions in the vicinity of the installation for future reference. About these instructions These instructions describe the installation, commissioning, function and operation of the solar stations SolarBloC midi (DN 20) and SolarBloC maxi (DN 25) with Premium equipment. -
Page 5: Designated Use
Due to its design, the station must be mounted and operated in a vertical position with upward flow direction of the pump! Only use PAW accessories with the solar station. Improper usage excludes any liability claims. Under the influence of solar radiation, the collectors can get very hot. -
Page 6: Safety Instructions
2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist]. - Page 7 2 Safety instructions CAUTION Personal injury and damage to property due to overpressure! By closing the two ball valves in the primary circuit, the safety group is separated from the heat exchanger. A rise in temperature in the storage tank will cause high pressures which can result in personal injury or damage to property! ...
-
Page 8: Assembly And Installation [Specialist]
Secure the housing of the compression fitting ⑤ against distort, in order to avoid damaging the sealing ring. Not included in the scope of delivery! 1. Remove the station from the packaging. 2. Remove the insulating front shell. Example: SolarBloC midi Premium 997xx3xx-mub-en – V01 2020/08... - Page 9 3 Assembly and installation [specialist] 3. Copy the mounting holes besides the thermometers to the mounting surface. 4. Drill the holes and mount the solar station to the wall with appropriate wall plugs and screws. 5. Connect the solar station to the installation by using the pipes: ①...
- Page 10 3 Assembly and installation [specialist] WARNING Risk to life and limb due to electric shock! Prior to commencing electrical work on the controller, pull the mains plug! Only after completing all installation work as well as the flushing and filling, the mains plug of the controller can be plugged into a socket.
-
Page 11: Commissioning [Specialist]
4 Commissioning [specialist] 4 Commissioning [specialist] Please observe the following safety instructions regarding the commissioning of the station: WARNING Risk of burns and scalding! The valves and fittings can heat up to more than 100 °C. It is therefore not allowed to flush or fill the installation when the collectors are hot (intense solar radiation). -
Page 12: Flushing And Filling The Solar Circuit
4 Commissioning [specialist] Flushing and filling the solar circuit The fill and drain valves necessary to flush and fill the installation are integrated in the solar station. Make sure not to wash dirt particles that may be present in the solar installation into the expansion tank. - Page 13 4 Commissioning [specialist] Airstop The Airstop with manual vent valve is used to vent the solar installation. To ensure a perfect venting of the solar circuit, the flow velocity in the flow line must be at least 0.3 m/s. Pipe diameter [mm] Flow rate at 0.3 m/s ∅...
-
Page 14: Preparations Before Flushing
4 Commissioning [specialist] Preparations before flushing The solar circuit is flushed in the direction of flow. 1. Disconnect the expansion tank from the solar installation. Please observe the separate instructions regarding the expansion tank! 2. Turn the check valve in the flow ball valve [5.2] into operating position (0°, see page 12). -
Page 15: Flushing And Filling
4 Commissioning [specialist] Flushing and filling 1. Put the flush and fill station into operation and flush the solar installation for at least 15 minutes. 2. Vent the solar system several times at the vent plug of the Airstop [4.2] until the solar fluid exits without bubbles (see page 13). - Page 16 4 Commissioning [specialist] WARNING Risk to life and limb due to electric shock! Check if the sensors and pumps are properly connected to the controller and if the controller housing is closed. Only then, the mains plug of the controller can be plugged into a socket. 10.
-
Page 17: Maintenance [Specialist]
5 Maintenance [specialist] 5 Maintenance [specialist] WARNING Risk of burns and scalding! The valves, fittings and the solar fluid can heat up to more than 100 °C. The solar fluid can escape as vapour and cause scalding. Only carry out maintenance work if the collector temperatures are below 50 °C. -
Page 18: Draining The Solar Installation
5 Maintenance [specialist] Draining the solar installation 1. Switch off the controller and make sure that a restart is not possible. 2. Open the check valves in the flow and return ball valve [5.2|1.2] by turning them into position 45° (see page 12). 3. -
Page 19: Spare Parts [Specialist]
The serial number is placed on the safety group of the solar station. In case of a complaint, please send us the entirely completed commissioning report on page 30. SolarBloC midi Premium DN 20 2020/08 997xx3xx-mub-en – V01... - Page 20 6 Spare parts [specialist] Position Spare part Item number Return ball valve DN 20, ¾" int. thread x F ¾" x ¾" ext. thread N00290 on the right, check valve for solar application 200 mm wc Pressure relief valve ½" x ¾", 6 bars N00300 Pressure gauge 0-6 bars, with automatic isolation N00301...
-
Page 21: Solarbloc Maxi Premium Dn 25
6 Spare parts [specialist] SolarBloC maxi Premium DN 25 2020/08 997xx3xx-mub-en – V01... - Page 22 6 Spare parts [specialist] Position Spare part Item number Return ball valve DN 25, F1" x 1" int. thread, N00306 check valve for solar application 200 mm wc Pressure relief valve ½" x ¾", 6 bars N00300 Pressure gauge 0-6 bars, with automatic isolation N00301 ⅜"...
-
Page 23: Connection Of The Pwm Pumps
7 Assembly of the insulation Connection of the PWM pumps DN 20 / DN 25 brown blue 7 Assembly of the insulation 2020/08 997xx3xx-mub-en – V01... -
Page 24: Technical Data
8 Technical data 8 Technical data Dimensions SolarBloC midi (DN 20) SolarBloC maxi (DN 25) Height (with controller) 560 mm 654 mm Width (total) 332 mm 335 mm Depth (total) 150 mm 161 mm Centre distance flow/return 100 mm 100 mm Pipe connections ¾"... -
Page 25: Dimensional Drawing Solarbloc Midi Premium (Dn 20)
8 Technical data Dimensional drawing SolarBloC midi Premium (DN 20) Dimensional drawing SolarBloC maxi Premium (DN 25) 2020/08 997xx3xx-mub-en – V01... -
Page 26: Pressure Drop And Pump Characteristic Curves Solarbloc Midi Premium (Dn 20)
8 Technical data Pressure drop and pump characteristic curves SolarBloC midi Premium (DN 20) Flow rate [l/h] Pressure drop and pump characteristic curves SolarBloC maxi Premium (DN 25) Flow rate [l/h] 997xx3xx-mub-en – V01 2020/08... -
Page 27: Disposal
9 Disposal 9 Disposal NOTICE Electrical and electronic devices must not be disposed of in the household waste. For your return, there are free collection points for electrical appliances and, if necessary, additional points of acceptance for the reuse of the devices in your area. -
Page 28: Function Of The Check Valves [Expert]
10 Function of the check valves [Expert] 10 Function of the check valves [Expert] Within their application range, the check valves of this station prevent unwanted gravity circulation. The functioning of the check valves depends on: the installation height • the temperature difference between the storage tank and the collector •... - Page 29 10 Function of the check valves [Expert] Do you wish to get further information? The density of the solar fluid decreases with rising temperature. In high installations with large temperature differences, the difference in density will cause gravity circulation. This circulation can lead to a cooling down of the storage tank.
-
Page 30: Commissioning Report
11 Commissioning report 11 Commissioning report Installation operator Location of installation Collectors (number / type) Collector surface m² (Height difference between station Installation height and collector field) Piping ⌀ Venting ⃞ Not existent ⃞ Vented (collector field) ⃞ Manual vent valve ⃞... - Page 31 11 Commissioning report 2020/08 997xx3xx-mub-en – V01...
- Page 32 PAW GmbH & Co. KG www.paw.eu Böcklerstraße 11 Phone: +49 (0)5151 9856 - 0 31789 Hameln, Germany Fax: +49 (0) 5151 9856 - 98 997xx3xx-mub-en – V01 2020/08...
