Installation and Operation Instructions
HeatBloC
K33 - DN 25
®
2020/03
9936073x-mub-en – V03
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HeatBloC K33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PAW HeatBloC K33

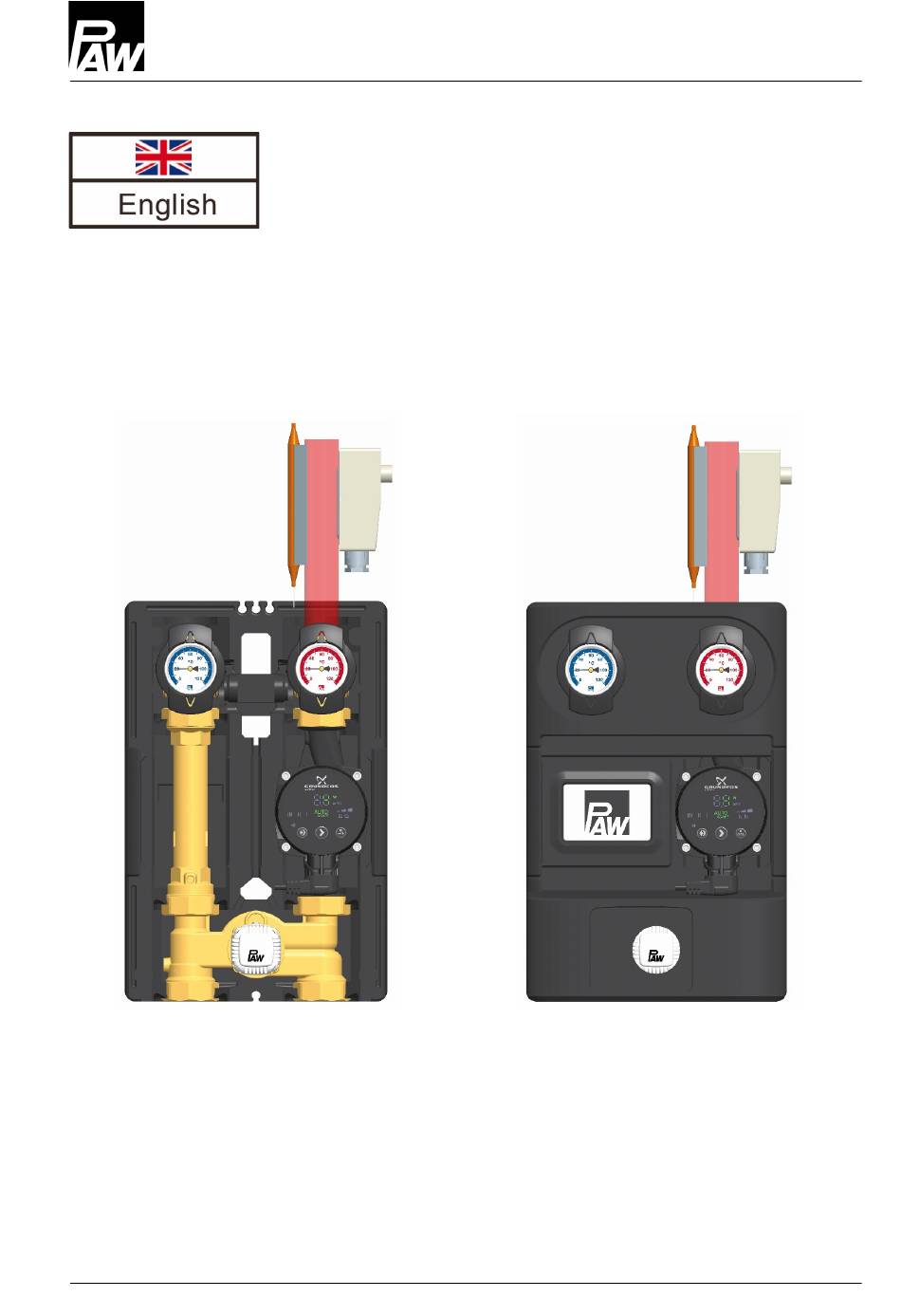

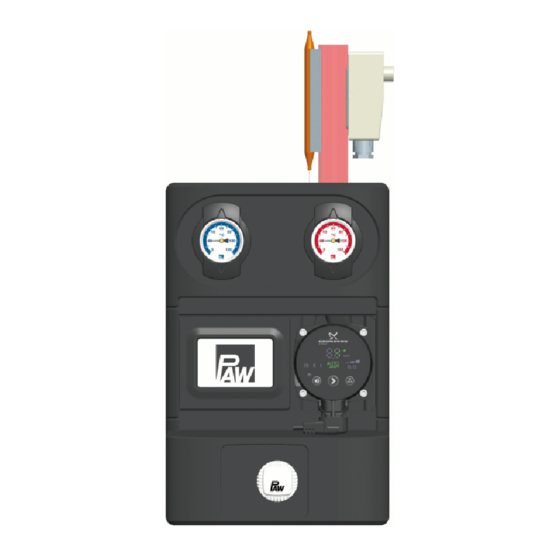

  • Page 1 PAW GmbH & Co. KG Böcklerstr. 11, 31789 Hameln - Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions HeatBloC K33 - DN 25 ® 2020/03 9936073x-mub-en – V03...
  • Page 2: Table Of Contents

    Translation of the original instructions PAW GmbH & Co. KG We reserve the right to make technical changes without notice! Böcklerstraße 11 Printed in Germany – Copyright by PAW GmbH & Co. KG 31789 Hameln, Germany 9936073x-mub-en – V03 2020/03...
  • Page 3: General Information

    This product complies with the relevant directives and is therefore labelled with the CE mark. The Declaration of Conformity is available upon request. Please contact the manufacturer. Only use PAW accessories with the HeatBloC ® The wrapping materials are made of recyclable materials and can be disposed of with recyclable materials.
  • Page 4: Safety Instructions

    2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist].
  • Page 5: Product Description

    The PAW HeatBloC is designed such that it can be directly mounted onto a PAW distribution ® manifold or a mounting plate. With transition connections, PAW HeatBloC s can also be ®...
  • Page 6: Function

    3 Product description 3.2 Function K33 - constant value control circuit 20-50 °C with 3-way mixing valve and bypass 0-50 % The flow temperature of the heating circuit is controlled by the integrated mixing valve. Hot water from the boiler and cold return water are mixed to obtain the desired flow temperature.
  • Page 7: 3-Way Mixing Valve With Bypass [Specialist]

    3 Product description 3.2.1 3-way mixing valve with bypass [specialist] The 3-way mixing valve is a constant-value mixing valve for radiant panel heating systems (radiant floor heating, wall heating etc.) which are operated with a constant flow temperature and thus guarantee a basic heat supply. The desired flow temperature can be adjusted at the thermostatic head.
  • Page 8 3 Product description 1. During commissioning, determine the optimum bypass position for the operation of the installation through a trial-and-error process. If the slot of the bypass screw is in a vertical position, the bypass is closed (normal operation). If the slot of the bypass screw is in a horizontal position, the bypass is completely open.
  • Page 9 Please specify the following information when ordering the conversion kit: - Nominal diameter of the group of fittings (see designation of the pump), - PAW item number or PAW designation - Change from/to: "change from flow on the right to flow on the left" or "change from flow on the left to flow on the right"...
  • Page 10 3 Product description Proceeding: Take off the thermometer handles (A-2, F-2) and remove the insulating front shell. • Take the group of fittings out of the insulating back shell. • Dismount the mixing valve (C) and assemble it as described in the instructions •...
  • Page 11: Check Valve And Non-Return Valve

    3 Product description 3.2.2 Check valve and non-return valve The HeatBloC is equipped with a check valve (D-1, opening pressure 200 mm wc) in the return ® pipe and with a non-return valve (C-3, opening pressure 50 mm wc) in the return of the mixing valve.
  • Page 12: Assembly And Installation [Specialist]

    4 Assembly and installation [specialist] 4 Assembly and installation [specialist] The HeatBloC K33 can be mounted on a PAW modular distribution manifold or on a wall ® bracket. The modular distribution manifold and the wall bracket are optional accessories and are thus not included in the scope of delivery.
  • Page 13 4 Assembly and installation [specialist] Option 2: Option 3: • • on a mounting plate directly on a wall bracket Consumer circuit Flow Return Flow Return Return Flow Return Flow Heat generator Please observe the separate and respectively corresponding instructions regarding the installation of the distribution manifold, of the mounting plate and of the wall bracket.
  • Page 14 ® 2. Unscrew the nuts on the lower connections of the HeatBloC ® and take out the sealing rings. If PAW modular distribution manifold or transition connection is used: 3. Put the two nuts over the flanges. Flange (side view) 4.
  • Page 15: Accessories: Cutting-Ring Compression Fitting (Not Included In The Scope Of Delivery)

    4 Assembly and installation [specialist] 4.2 Accessories: Cutting-ring compression fitting (not included in the scope of delivery) The connection to the heating installation can be carried out fast, pressure-proof and without soldering if you use the optionally available compression fittings. 1.
  • Page 16: Scope Of Delivery [Specialist]

    5 Scope of delivery [specialist] 5 Scope of delivery [specialist] NOTICE Complaints and requests/orders of spare parts will only be processed with information on the serial number! The serial number is placed on the return pipe of the heating circuit. 9936073x-mub-en –...
  • Page 17 5 Scope of delivery [specialist] Position Spare part Item number Thermometer ball valve DN 25, flange 1" x 1" int. thread N00244 Thermometer handle for thermometer ball valve 1" N00248 Dial thermometer, red scale, d = 50 mm, 0-120 °C N00242 Dial thermometer, blue scale, d = 50 mm, 0-120 °C N00243...
  • Page 18: Technical Data

    6 Technical data 6 Technical data DN 25 (1") Dimensions Centre distance (1) 125 mm Width insulation (2) 250 mm Height insulation (3) 383 mm Installation length (4) 340 mm Connections Outlet (A-1, F-1) 1" internal thread Inlet (C-1, C-2) 1½"...
  • Page 19: Pressure Drop And Pump Characteristic Curves

    6 Technical data DN 25 (1") Hydraulics Maximum pressure 6 bars Maximum temperature 110 °C value [m 6.1 Pressure drop and pump characteristic curves Flow rate [l/h] 2020/03 9936073x-mub-en – V03...
  • Page 20 PAW GmbH & Co. KG www.paw.eu Böcklerstraße 11 Phone: +49 (0) 5151 9856 - 0 31789 Hameln - Germany Fax: +49 (0) 5151 9856 - 98 9936073x-mub-en – V03 2020/03...
