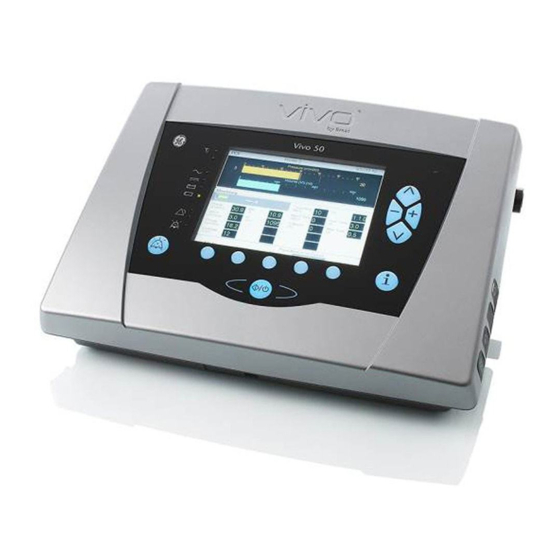

Breas Vivo 50 Quick Reference Manual

Vivo 50
Quick Reference Guide
Quick Usage Guide
This is not a complete guide for the
Vivo 50. See your manual for complete
instructions.
Switching On/Off
Press the On/Off button
on the side panel.
Start/Stop Treatment
1. To start treatment and
enter operating mode
first press and hold the
Start/Stop button on
the front panel.
2. Release the Start/Stop
button when the
progress bar is filled.
1. To stop treatment and enter standby mode, first
press and hold the Start/Stop button on the front
panel.
2. Release the Start/Stop
button when the
progress bar is filled.
3. Press the On/Off
button on the side panel
within 10 seconds.
Press the button firmly.
*Vivo by Breas, Breas and the Breas logo are trademarks of Breas Medical AB. © 2017 Breas Medical – All rights reserved. Breas Medical reserves the right to make changes in specifications and features shown herein, or discontinue the product described
at any time without notice or obligation. Contact your Breas representative for the most current information. MAR-5473.v.1.0
Attach the Click-on Battery
1. Use a thin stick to open
the cover for the click-
on battery connectors.
Make sure the cover is
completely opened.
2. Hold the Vivo 50 as
shown in the picture,
in order to target the
click-on battery holders
(marked with circles).
3. Tilt the Vivo 50 into an
upright position. Once
in position, a clicking
sound should be heard.
4. Use the screw to secure
the click-on battery by
pressing it in and turn
clockwise.
5. When attached, the
click-on battery icon
will appear in the icon
field.
i-Button
Use the i-button to
get explanations about
settings and alarms.
