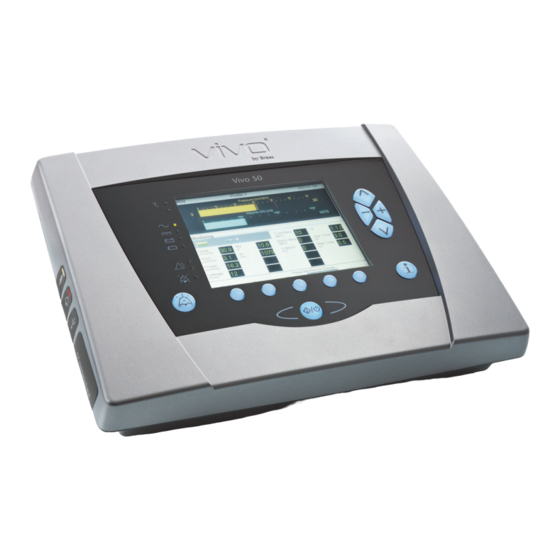

Breas Vivo 50 Quick Reference Manual

Symbols
S D
YMBOL ESCRIPTION
Home Mode activated
Leakage circuit selected (single limb)
Exhalation valve circuit selected (single limb)
Dual limb circuit selected (Vivo 60)
MPV breath mode selected. Circuit with
mouthpiece interface shall be used.
iOxy connected
FiO connected
2
CO connected
2
Multiple pages
Multiple content available
High priority alarm event in history list
Medium priority alarm event in history list
Replacing the Patient Air Inlet Filters
The filters are located in the filter
cassette at the side of the ventilator.
Washable Filter (grey): Replace at
least once a year, wash at least once
a week.
Disposable Filter (white): Replace at
least every 4th week, or more often
in high pollution or pollen-rich
environments.
Using Oxygen
• O must be turned off when the Vivo 50/60 is not in
2
operating mode!
• It is recommended to monitor the oxygen concen-
trations.
• Oxygen flow must not exceed 15 l/min.
1. Mount the oxygen tube to the
connector.
2. Connect the oxygen tube. A
click sound is heard when the
tube is properly attached.
Disconnect:
1. Press the release button to dis-
connect the oxygen tube.
2. Remove the tube.
3. Turn off the oxygen source.
Using the Connectors
Make sure that the colour mark is
facing up.
Pull the connector sleeve, not the
cable itself to release the connector.
ENGLISH
Vivo 50/60
Quick Reference Guide
Doc. 004987 En-Eu C-1
