OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump
material options.
637441-XX for fluid section repair (see page 4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637369 for air section repair (see page 6).
637374-6 major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart
Weight . . PH30X-ASP-XXX-C, -BSP . . . 228.8 lbs (103.8 kgs)
PH30X-FSP-XXX-C, -DSP . . . 245.6 lbs (111.4 kgs)
Maximum Air Inlet Pressure . . . . . . . 100 psig (6.9 bar)
Maximum Material Inlet Pressure . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 200 psig (13.8 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . 150 gpm (567.8 lpm)
flooded inlet . . . . . . . . . . . 160 gpm (605.6 lpm)
Displacement / Cycle @ 100 psig . . . 1.4 gal. (5.3 lit.)
Maximum Particle Size. . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal
material)
E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 32° to 175° F (0° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 50 cpm
 Tested with 67263 muffler assembly installed.
 The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (LA
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276  FAX (800) 892-6276
arozone.com

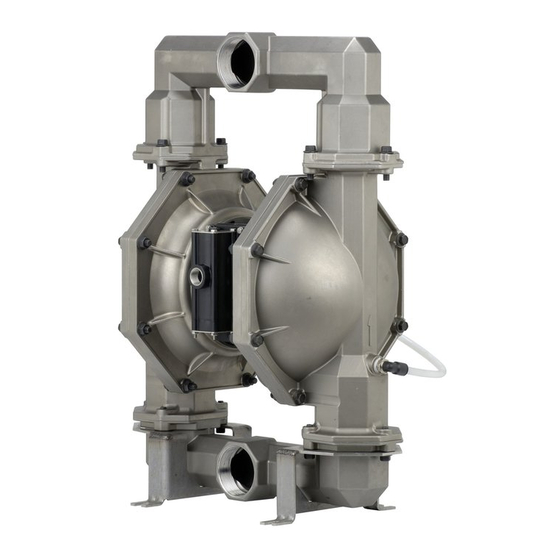

3" DIAPHRAGM PUMP
2:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
 
. . . . 83.0 dB(A)
) to meet the intent of
eq
© 2018 CCN 15307648
PH30X-XXX-XXX-C
MODEL DESCRIPTION CHART
Air Motor / Air Cap Material
A - Allumium
F - Groundable Polypropylene
S - Stainless steel
Fluid Connection
A - 3 - 8 NPTF - 1
B - Rp 3 (3 - 11 BSP parallel)
D - 3" ANSI Flange (4-holes)
F - 3" DIN Flange (8-holes)
Fluid Cap and Manifold Material
S - Stainless Steel
Hardware Material
P - Carbon Steel
Seat Material
S - 316 Stainless Steel
Ball Material
A - Santoprene T - PTFE
C - Hytrel V - Viton
Diaphragm Material
A - Santoprene L - Long Life PTFE
C - Hytrel T - PTFE / Santoprene
Fluid Section Service Kit Selection
EXAMPLE: Model #PH30X-ASP-SAA-C
Fluid Section Service Kit # 637441-AA
RELEASED:
REVISED: 12-21-18
(REV: K)
Figure 1
PH30X - X S P - S X X - C
PH30X - ASP - S X X - C
637441 - X X
Ball Diaphragm
7-17-08
