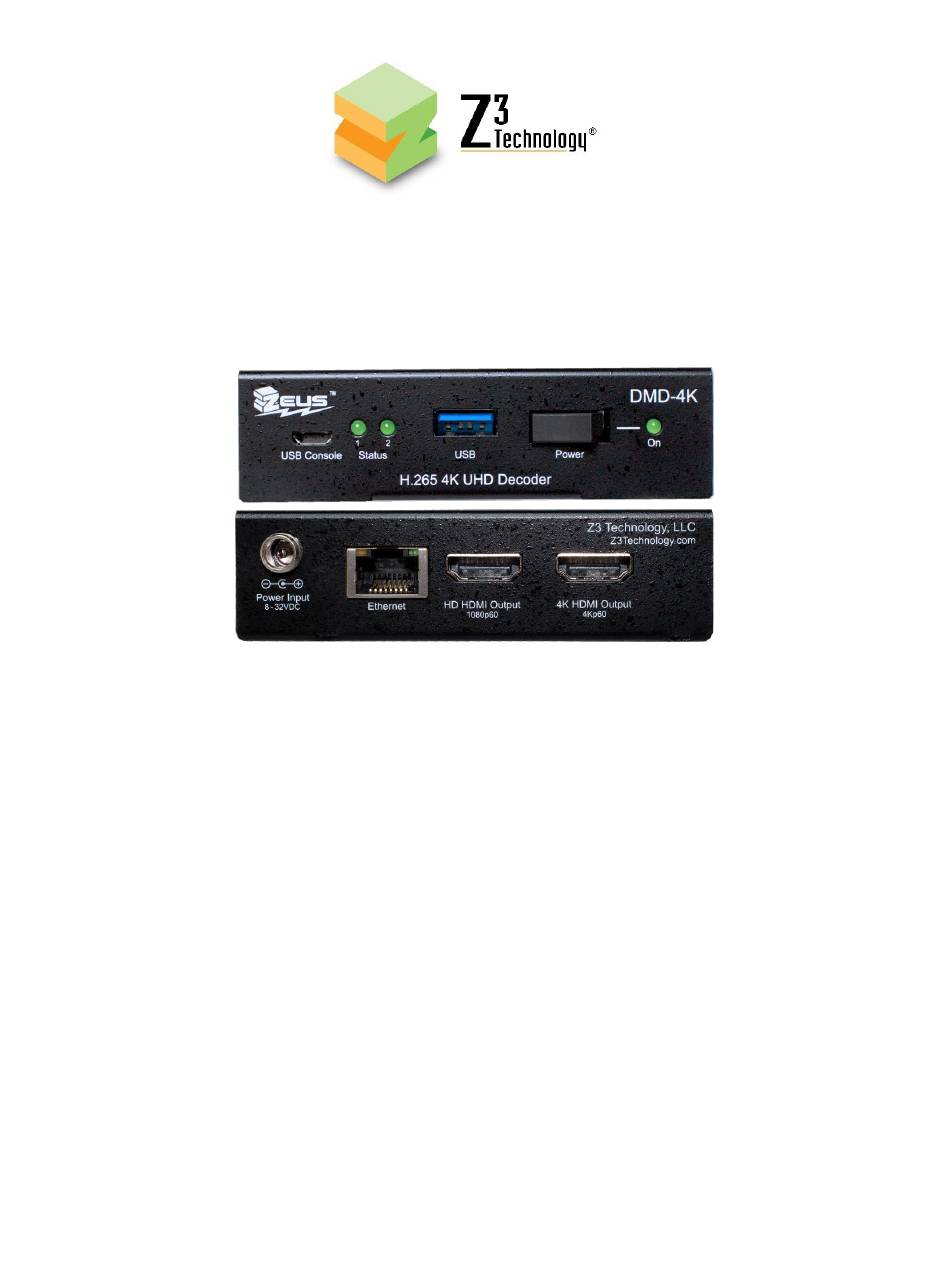

User Instructions
DMD-4K
DOC-USR-0201-01
Version 2.0
October 22, 2019
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Copyright © 2019 Z3 Technology, LLC. All rights reserved.
Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC.
This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or
disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at
any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document are the
property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMD-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Z3 Technology DMD-4K

Summary of Contents for Z3 Technology DMD-4K

  • Page 1 Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC. This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
  • Page 2 DMD-4K User Instructions DOC-USR-0201-01 REVISION HISTORY Version Date Change Note Author 10/22/2019 Original Document for DMD-4K...

  • Page 3: Table Of Contents

    3.0 Features ........................4 3.1 Supported Output Resolutions..........................4 4.0 OPERATING CONTROLS ....................5 5.0 GETTING STARTED WITH THE DMD-4K ................6 5.1 Connecting to the DMD-4K ............................. 6 6.0 QUICK START GUIDE ....................6 6.1 If you have received a system from Z3 with Software Preloaded ................6 6.2 If You Already have a System from Z3 and Need to Update the Firmware ..............
  • Page 4 DOC-USR-0201-01 LIST OF FIGURES Figure 1 Package Contents for the DMD-4K ................3 Figure 2 Front and Rear Interfaces of the DMD-4K ..............5 Figure 3 ZFinder with DMD-4K selected ................7 Figure 4 RTSP Streaming Configured ..................8 Figure 5 Example Streaming UDP ..................9 Figure 6 Multichannel Decode ...................

  • Page 5: General Description

    DMD-4K Multi-Format Video Decoder is a system capable of processing multi-format H.265 and H.264 High Profile video up to 2160p at 60 frames per second. The DMD-4K is a cost-effective system suitable for broadcast encoders and IP streaming. The DMD-4K provides immediate access to multi-format 4K video, integrated system peripherals and production-qualified codecs.

  • Page 6: Package Contents

    DMD-4K User Instructions DOC-USR-0201-01 2.0 PACKAGE CONTENTS DMD-4K 12V.5A Power Adapter HDMI Cable Micro-USB to USB Cable Figure 1 Package Contents for the DMD-4K Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 7: Features

    4K HDMI: 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 1080p60, 1080p59.94, 1080p50, 720p60, 720p59.94, 720p50, 480p60, 576p50, 2560x1600p60, 2560x1440p30, 1920x1200p60 HD HDMI: 1080p60, 1080p59.94, 1080p50, 1080i30, 1080i29.97, 1080i25, 720p60, 720p59.94, 720p50, 480p60, 576p50, Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 8: Operating Controls

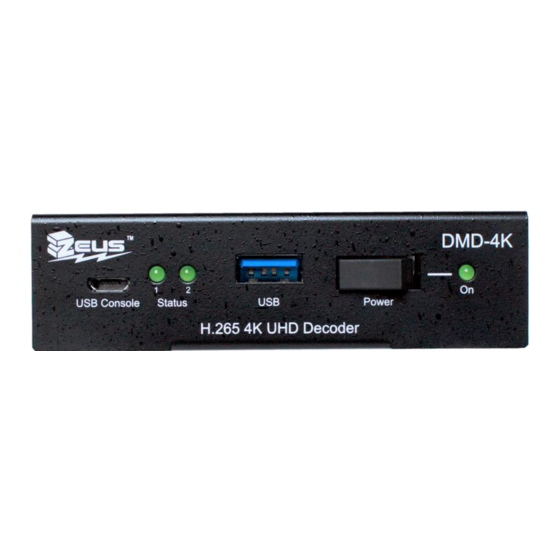

    1 & 2 USB Console Power LED Power Input HDMI 2.0 Gigabit HDMI 1.3 Ethernet Figure 2 Front and Rear Interfaces of the DMD-4K Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 9: Getting Started With The Dmd-4K

    Access the User Interface using ZFinder ZFinder is a PC Utility that allows you to find any Z3 Technology product on your network. If you have not downloaded this to your computer, you can find it on the USB drive provided with your system.

  • Page 10: Figure 3 Zfinder With Dmd-4K Selected

    DMD-4K User Instructions DOC-USR-0201-01 Figure 3 ZFinder with DMD-4K selected *Note: Selecting “Edit Device” allows for manual changes to network settings including the Device Name, IP Address, Netmask and Gateway address. Edit Device will only edit the device in Z-Finder. IP settings will need to changed and Save in the System Set-up tab of the web gui.

  • Page 11: Streaming Rtsp

    7.0 STREAMING RTSP Pictured is a screencap of RTSP streaming configured. In ‘Channel Controls’ there is a “status: RUNNING” showing the DMD-4K is decoding. To stop the stream, click on the “stop” button. Figure 4 RTSP Streaming Configured Z3 Technology, LLC ♦ 100 N 8...

  • Page 12: Streaming Udp

    DMD-4K User Instructions DOC-USR-0201-01 8.0 STREAMING UDP To stream UDP choose the protocol UDP option. The URL format is udp://0.0.0.0:localport Figure 5 Example Streaming UDP Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 13: Multichannel Decode

    It is recommended to review the document DOC-USR-0147-01_Z3Cam-4K_Latency_note.pdf for a better understanding on the testing methodology to obtain optimum latency results with the decoder. Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 14: Dmd-4K Io Connections

    TMDS Data 0 shield TMDS Data 0- TMDS Clock+ TMDS Clock shield TMDS Clock- DDC SCL DDC SDA DDC Ground +5V Power Hot Plug Detect Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 15: Hd Hdmi

    DDC Ground +5V Power Hot Plug Detect 11.3 GigE (Default to DHCP) RJ45 Pin Signal Color Code (Typ) BI_DA+ White/Green BI_DA- Green BI_DB+ White/Orange Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 16: Usb 3.0

    Does not require external USB to TTL adaptor. The cp210x silicon is installed on the HE265-DEC circuit board. cp210x driver may be required for PC to Z3 serial communications. Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 17: Upgrading Z3 Firmware

    12.1 Making a Firmware Update (1) Open the user interface. (2) Select “Update device firmware” from the “System Setup” tab under the “Device Management” section. Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 18: Figure 7 Updating The Device Firmware From The User Interface

    “Open”. Figure 9 File Selection Screen The image file to be used will typically have the word “UPD” in the name. Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 19 (6) You will see screens stating that the image is being uploaded and that the flash is being updated. After about one minute, you should see the main menu again. (7) Your DMD-4K is now updated. Z3 Technology, LLC ♦ 100 N 8...

  • Page 20: Summary Of Options

    Sets HTTP/HTTPS access to the web UI. See App Note for Button more information. Set 802.1X Button Sets configuration for 802.1x on the wired connection. See App Note for details. Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 21: The User Presets Tab

    Load settings from a previously exported file. Reset Resets presets 13.3 The Status Tab *Note: May take a few seconds to load after being clicked Output Value Explanation Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 22: The Media Tab

    Keep Original Size settings and a reboot is needed for changes to this value to take Keep Aspect Ratio effect. Scale Percentage Fit to Display Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 23 For UDP and SRT mode, “Set Max Latency” is recommended for No Latency Control smoother playback. For FILE mode, “No Latency Control” is recommended. “Lowest Latency” mode does not support B-frames (I+P only). Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 24 .tgz file, along with screenshots of the CH1/CH2/Status tabs to Z3 Technol ogy. Z3 Technology’s Express Limited Warranty will be void if the label on the hardware bearing the Serial Number is removed, tampered with or defaced.
