User Guide
BLD265-SC2
DOC-USR-0219-03
Version 3.0
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Copyright © 2020 Z3 Technology, LLC. All rights reserved.
Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC.
This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or
disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at
any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document are the
property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLD265-SC2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Z3 Technology BLD265-SC2

Summary of Contents for Z3 Technology BLD265-SC2

  • Page 1 Z3 Technology and ZEUS are registered trademarks of Z3 Technology, LLC. This document contains proprietary information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
  • Page 2 SNMPv3 section. Added sections on setting SSH idle timeout, HTTPS support, and 08/26/2020 configuring web GUI login. Updated SNMPv3 section. ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 3: Table Of Contents

    9.7 USB 3.0 ........................ 14 9.8 2.5mm console port ....................15 10.0 SNMPv3 ........................ 15 11.0 PERFORMING OTHER OPERATIONS WITH THE BLD265-SC2 ............. 16 11.1 Making a Firmware Update ..................16 11.2 Setting an SSH Idle Timeout ..................18 11.3 HTTP Support ....................... 19 11.4 Configuring Web GUI Login ..................
  • Page 4 BLD265-SC2 User Guide DOC-USR-0219-03 APPENDIX A: Support and Warranty ..................28 Appendix A: Support ..................... 28 Appendix A: Warranty ....................28 ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 5 BLD265-SC2 User Guide DOC-USR-0219-03 LIST OF FIGURES Figure 1 BLD265-SC2 Board Stack Dimensions ................6 Figure 2 ZFinder with BLD265-SC2 selected ................9 Figure 3 RTSP Streaming Configured ..................10 Figure 4 Example Streaming UDP ..................11 Figure 5 Display Setup ...................... 12 Figure 6 Updating the Device Firmware from the User Interface ............

  • Page 6: General Description

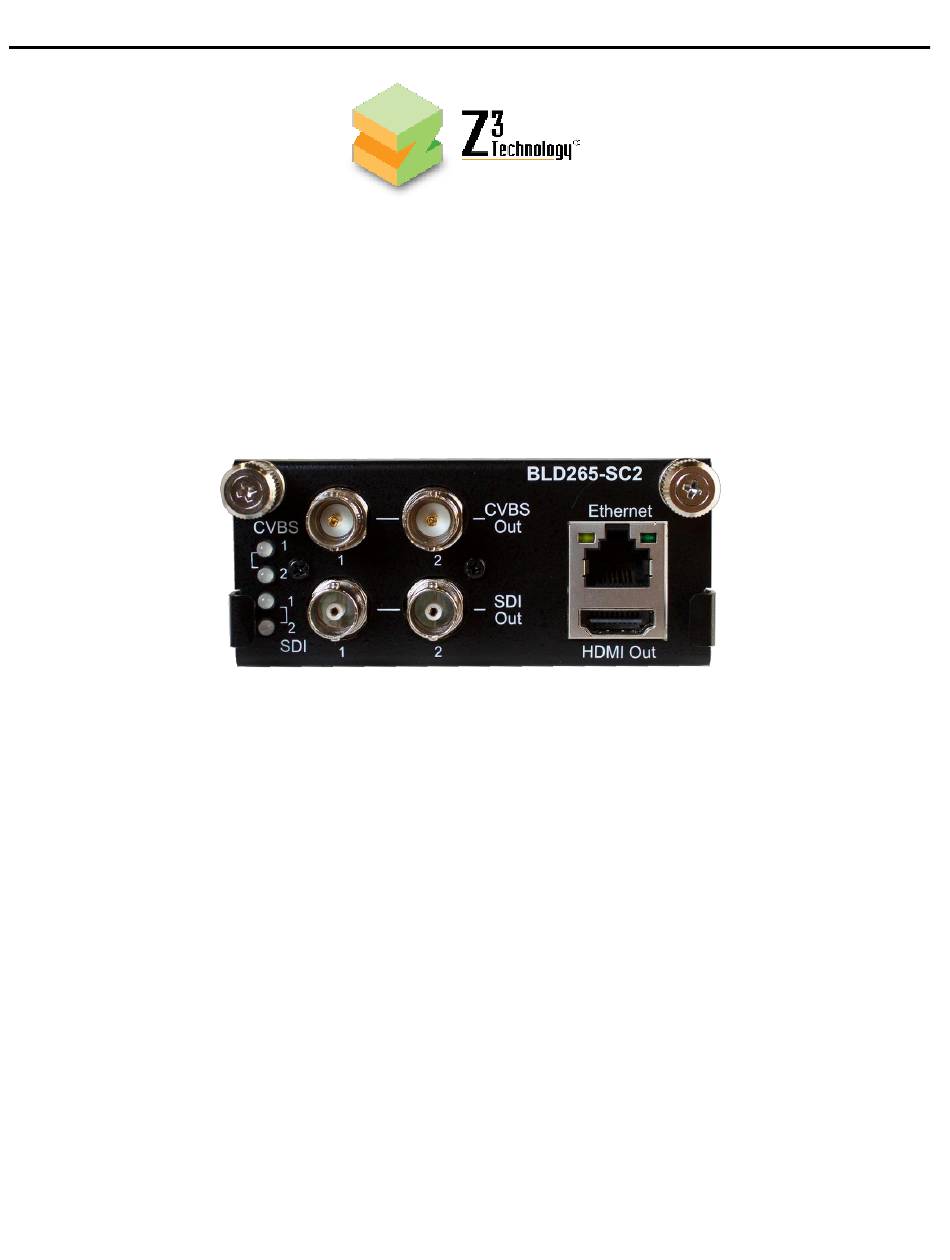

    H.264 High Profile video in resolutions up to 1080p60. The hardware includes 2 decoder channels. The BLD265-SC2 has two CVBS output interfaces and two SDI output interfaces along with Ethernet and HDMI Out interfaces. The HDMI Out interface is not in NTSC display mode.

  • Page 7: Features

    The channel LEDs will flash green while the channel is running. The channel LEDs will flash red while the unit is polling or stopped ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 8: Getting Started With The Bld265-Sc2

    4.3 Access the User Interface using ZFinder ZFinder is a PC Utility that allows you to find any Z3 Technology product on your network. If you have not downloaded this to your computer, you can find it on the USB drive provided with your system.

  • Page 9: Figure 2 Zfinder With Bld265-Sc2 Selected

    BLD265-SC2 User Guide DOC-USR-0219-03 Figure 2 ZFinder with BLD265-SC2 selected *Note: Selecting “Edit Device” allows for manual changes to network settings including the Device Name, IP Address, Netmask and Gateway address. Edit Device will only edit the device in Z-Finder. IP settings will need to changed and Save in the System Set-up tab of the web gui.

  • Page 10: Streaming Rtsp

    DOC-USR-0219-03 5.0 STREAMING RTSP Pictured is a screencap of RTSP streaming configured. In ‘Channel Controls’ there is a “status: RUNNING” showing the BLD265-SC2 is decoding. To stop the stream, click on the “stop” button. Figure 3 RTSP Streaming Configured ______________________________________________________________________________________ Z3 Technology, LLC ♦...

  • Page 11: Streaming Udp

    DOC-USR-0219-03 6.0 STREAMING UDP To stream UDP choose the protocol UDP option. The URL format is udp://0.0.0.0:localport Figure 4 Example Streaming UDP ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 12: Display Setup

    To change display resolutions, select the new resolutions in the “Resolution” and “2 Resolution” drop- downs, then hit the “Set Display” buttons. Figure 5 Display Setup ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 13: Latency

    TMDS Data 0 shield TMDS Data 0- TMDS Clock+ TMDS Clock shield TMDS Clock- DDC SCL DDC SDA DDC Ground +5V Power ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 14: Sdi1

    BI_DC- White Blue BI_DB- Orange BI_DD+ White/Brown BI_DD- Brown 9.7 USB 3.0 USB Standard A Signal Descriptor VBus +5 Volts DC Power ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 15: Mm Console Port

    9.8 2.5mm console port 115,200, 8, 1, N RS-232 Serial Port 10.0 SNMPv3 SNMP V3 is supported on the BLD265-SC2. Please reference the SNMPv3 App Note for additional information. ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 16: Performing Other Operations With The Bld265-Sc2

    BLD265-SC2 User Guide DOC-USR-0219-03 11.0 PERFORMING OTHER OPERATIONS WITH THE BLD265-SC2 11.1 Making a Firmware Update (1) Open the user interface. (2) Select “Update device firmware” from the “System Setup” tab under the “Device Management” section. Click here Figure 6 Updating the Device Firmware from the User Interface (3) This brings you to the update image screen.

  • Page 17: Figure 7 Updater Screen

    (6) You will see screens stating that the image is being uploaded and that the flash is being updated. After about one minute, you should see the main menu again. (7) Your BLD265-SC2 is now updated. ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8...

  • Page 18: Setting An Ssh Idle Timeout

    Set SSH Idle Timeout to the desired number of seconds, use 0 or -1 or forever or else 1 to 9999 seconds. Click change to save the settings. ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 19: Http Support

    BLD265-SC2 User Guide DOC-USR-0219-03 HTTP Support 11.3 The BLD265-SC2 has HTTPS support, to create a self-signed certificate check the Self-signed certificate checkbox: (1) On the System Setup tab Click on Go for Set HTTP/HTTPS Figure 10 Set HTTP/HTTPS Options (2) Click on Choose File for Select SSL certificate and choose the desired crt.

  • Page 20: Configuring Web Gui Login

    This will create a self-signed certificate for HTTPS with the above specifications. 11.4 Configuring Web GUI Login The BLD265-SC2 provides the option to set a password to limit access to the user interface. Note: To disable the password requirement set the password to blank and click change.

  • Page 21: Figure 12 Creating Or Changing The Password

    This is not editable. (9) Enter your selected password and click login to access the user interface. BLD265-SC2 Figure 13 Password Sign In ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 22: Summary Of Options

    Only the selected display output will be active. See section Error! R Resolution eference source not found. See section Error! R Resolution eference source not ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 23 Sets HTTP/HTTPS access to the web UI. See App Note for Button more information. Set 802.1X Button Sets configuration for 802.1x on the wired connection. See App Note for details. ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 24: The User Presets Tab

    Universal Resource Locator of the decoded stream Frames Decoded frame counter Current decoded frames per second Dimensions of decoded picture (width x height) Kbits/s Actual bitrate of decoder ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 25: The Media Tab

    Keep Aspect Ratio effect. Scale Percentage Fit to Display ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 26 SRT decryption passphrase, 10-64 characters long. SRT Password ZIXI maximum receiver latency. ZIXI Latency ZIXI forward error correction enable. ZIXI FEC ZIXI decryption type. ZIXI Decryption None ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 27 HTTP mode can also be used for passing through firewalls. You should specify the port in the rtsp:// URL, for example: rtsp://my_ip:80/z3-1mp4 ______________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 28 Z3. Appendix A: Warranty Z3 Technology’s Express Limited Warranty will be void if the label on the hardware bearing the Serial Number is removed, tampered with or defaced. You can view Z3 Technology’s full hardware warranty at http://z3technology.com/Support/ZEUS-HW-Warranty.html.
