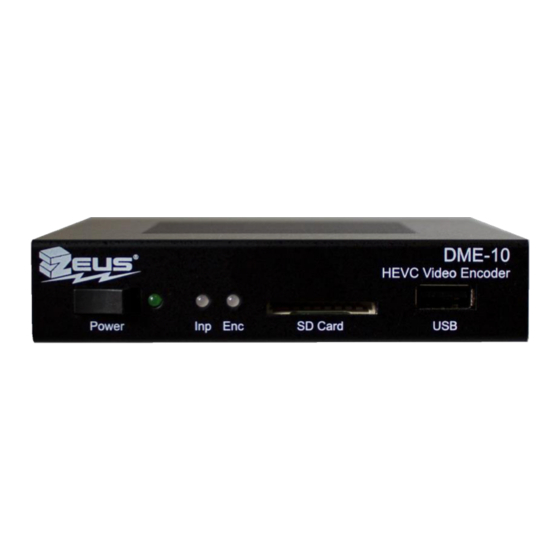

Z3 Technology ZEUS DME-10-G User Instructions

Hevc hd multimedia system, digital encoder and streamer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

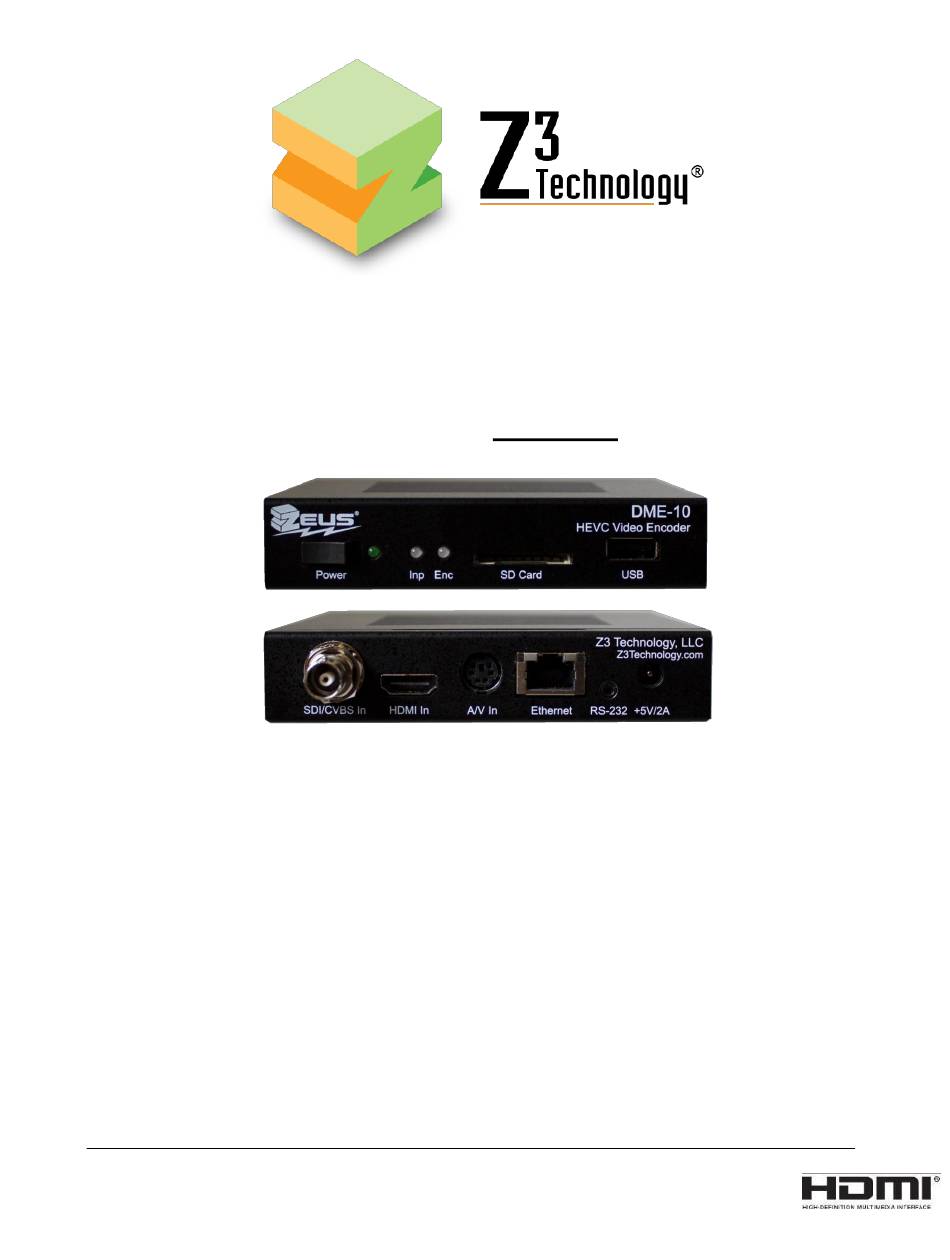

User Instructions
HEVC HD Multimedia System
Digital Encoder and Streamer
DME-10-G
Model Name:
DOC-USR-0214-04
Manual Version 3.0
Software Version 1.0
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Copyright © 2020 Z3 Technology, LLC. All rights reserved.
This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced,
disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this
product at any time and without notice. All product names, trademarks, trade names, service marks, or service names mentioned in this document
are the property of their respective owners.
Z3 Technology, LLC incorporates HDMI® technology. The terms of HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEUS DME-10-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Z3 Technology ZEUS DME-10-G

Summary of Contents for Z3 Technology ZEUS DME-10-G

  • Page 1 Copyright © 2020 Z3 Technology, LLC. All rights reserved. This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized representative of Z3. Z3 reserves the right to change this product at any time and without notice.
  • Page 2 8.7 Setting a Password. 02/19/2020 Changed product name from DME-10-G to DME-10-G 2/27/2020 Added section on LED Functions. Updated SNMP Section. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 3: Table Of Contents

    Saving Current Settings ................... 46 Using a Static IP Address ..................47 Advanced Settings Mode ..................51 Making a Firmware Update ..................53 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 4 APPENDIX A: Configuring the Wowza Server for RTMP ............... 70 APPENDIX B: Support and Troubleshooting ................72 Appendix B: Support ....................72 Appendix B: Troubleshooting ..................72 Appendix B: Warranty....................73 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 5 Figure 33 Saving Updated Network Settings ................48 Figure 34 Save Complete Message ..................49 Figure 35 DME-10-G IP Address Shown in ZFinder ..............49 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 6 Figure 44: System Setup tab configuration ................56 Figure 45 Wowza Performance Settings ................70 Figure 46 Wowza Security Settings ..................71 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 7: 1.0 General Description

    The DME-10-G features HD performance, compact size, and low latency while still having less power consumption than a PC-based encoder platform. 135 mm 24 mm 116 mm Figure 1 DME-10-G Dimensions ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 8: 2.0 Quick Start Guide

    Section 7.4 “Making a Firmware Update” on page 53. Please Note: Actual version numbers for your Z3 product may differ from those pictured in this document. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 9: 3.0 Package Contents

    Note: The serial cable and gender changer are included for advanced troubleshooting purposes only and are not needed by the typical user. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 10: 4.0 Features

    The Encode and Input LEDS will be orange during boot-up. They will be orange until an IP address is assigned. The encode and Input LEDS will be green once an IP address is assigned to the unit. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 11: 5.0 Operating Controls

    Supports non-HDCP HDMI content only. For example, Blu-Ray players cannot be used as a video source. For advanced debugging purposes only. Not needed by typical users. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 12: 6.0 Running The Encoder

    Connect an Ethernet cable from “Ethernet” on the back of the DME-10-G to a switch, router or other DHCP server on the same network as your Windows PC. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 13: Access The User Interface Using Zfinder

    Access the User Interface using ZFinder ZFinder is a PC Utility that allows you to find any Z3 Technology product on your network. If you have not downloaded this to your computer, you can find it on the USB drive provided with your system.

  • Page 14: Figure 6 Dme-10-G User Interface Ch1 Tab

    Click on “Open Device.” An Internet browser window is opened (for best results, Firefox or Chrome are recommended) and the HTTP-based graphical user interface (GUI) appears at the CH1 tab. Figure 6 DME-10-G User Interface CH1 Tab ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 15: Configure Encoder For Streaming Udp

    (4) Verify Is “H265(HEVC)” (7) Note value (8) Click “Start” (1) If necessary, click “Stop” Figure 7 Channel 1 Tab - UDP ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 16: View The Udp Stream In Vlc

    Figure 8 VLC Open Network Screen for UDP Press “Enter.” You will now see video streaming to VLC. Figure 9 Example of Encoded Video Streaming to VLC (UDP) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 17: Configure Encoder For Streaming Rtp

    (5) Change to “RTP” (4) Note value (6) Click “Start” (1) If necessary, click “Stop” Figure 10 Channel 1 Tab - RTP ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 18: View The Rtp Stream In Vlc

    (c) H264(AVC) + no audio: use the SDP file entitled “z3-netra_h264.sdp” Click “Open”. You will now see video streaming to VLC. Figure 11 Example of Encoded Video Streaming to VLC (RTP) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 19: Configure Encoder For Streaming Rtsp

    (5) Change to “RTSP” (4) Note value (6) Click “Start” (1) If necessary, click “Stop” Figure 12 Channel 1 Tab - RTSP ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 20: View The Rtsp Stream In Vlc

    VLC version 2.1.5 or later is needed for RTSP support. You will now see video streaming to VLC. Figure 14 Example of Encoded Video Streaming to VLC (RTSP) ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 21: Configure Encoder For Streaming Rtmp

    When in H.264 mode, the DME-10-G supports streaming to an RTMP streaming server for wide content distribution. Z3 Technology is a member of the Wowza Media Systems™ Technology Alliance partner program, and the Wowza Streaming Engine™ is used here as an example.

  • Page 22: View Rtmp Streaming

    (1) Use IP address of Wowza server + “:1935” (3) Select “live” (4) Select “Test Players” Figure 16 Getting to the Wowza Test Player ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 23: Figure 17 Viewing Content On Wowza

    (1) Select “Adobe RTMP” tab (2) Type stream name (3) Click “Start” (4) Audio and Video start to appear Figure 17 Viewing Content on Wowza ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 24: Encoding Sdi Video

    Verify your remaining settings are as desired. See Section 8.0 for a detailed list of all options. Click the green “Start” button. (1) Change to “HD-SDI” (2) Click “Start” Figure 19 Channel 1 Tab - SDI ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 25: Encoding Composite Video

    Verify your remaining settings are as desired. See Section 8.0 for a detailed list of all options. Click the green “Start” button. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 26: Figure 22 Channel 1 Tab - Composite

    DOC-USR-0214-04 (1) Change to “Composite” (2) Click “Start” Figure 22 Channel 1 Tab - Composite ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 27: Tuning For Latency

    CH1 tab. (3) Verify the settings under “Encoder Setup” match your video source. (4) Under Output Setup, set Output Format to “TSFILE”. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 28 The PC should be at least a quadcore or 8-core PC. If the PC is too slow, frame skips and possibly video artifacts will be observed upon playback. VLC should be version 2.1.3 or newer. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 29: Simultaneous Stream And Record

    (4) The “Output Device” and “File Prefix” fields appear. Follow the steps in Section 6.16 to connect your USB/SD device and set these fields. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 30: Encoding With Forward Error Correction

    “address:port/streamid” (5) Select “True” and enter valid credentials (6) Click “Start” (1) If necessary, click “Stop” Figure 25 Enabling Zixi Feeder Encode ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 31: Figure 26 Enabling Pro-Mpeg Fec Encode

    “Start” button. (2) Change to “TSRTP” (3) Select “True” (4) Click “Start” (1) If necessary, click “Stop” Figure 26 Enabling Pro-MPEG FEC Encode ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 32: Encoding Klv Stream

    DOC-USR-0214-04 For more information on testing and verifying FEC using a Z3 Technology decoder with Pro-MPEG FEC support, please contact your Z3 sales account manager for additional user instructions. Encoding KLV Stream The DME-10-G is STANAG 4609/NGA MISP compliant and can place KLV data from the SDI ancillary data in a UDP stream.

  • Page 33: Figure 27 Enabling Klv

    Synchronous mode includes a timestamp in each TS packet while Asynchronous does not. Choose based on the expectation of your decoder (many support both). The settings below reflect those discussed above: ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 34: Figure 28 Settings For Mutiplex Modes

    (2) When using the back panel RS232 port it is important to disable the serial console. Save your settings and click on the System Setup tab. Uncheck the Enable Serial Console checkbox. A reboot will be required. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 35: Snmp V3

    To start SNMP from the command line as root user run the following command: ~ # lua -e "package.path = package.path .. ';'..[[/opt/z3scripts/?.lua]]" -l "z3util" -e "set_snmp('true')" ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 36 1 3 0x80001f8880c5164f61b6010000 "cnetrw" "cnetrw" NULL .1.3.6.1.6.3.10.1.1.2 0xc6c8f9127c37a04087b5e316cb217dbb .1.3.6.1.6.3.10.1.2.4 0xc6c8f9127c37a04087b5e316cb217dbb "" ------------------------------------------------------------------------------------- At this point the new users can be used with snmp. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 37 ~ $ snmpget -v 3 -a SHA -A z3password -u z3user -l authPriv -x DES -X z3password x.x.x.x Z3-MIB:z3StatusEncoders.0 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 38 What this did is it started a snmptrapd process (SNMP traps receiver) with the following user configured: Engine ID: 0x80001F8880324C06437016C35D Username: test1 Auth Password: z3password1 Auth Protocol: Encryption Password: z3password1 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 39 LAST-UPDATED "201601010000Z" ORGANIZATION "Z3 Technology" CONTACT-INFO "Email: sales@z3technology.com" DESCRIPTION "Z3 root MIB." REVISION "201601010000Z" DESCRIPTION "Initial version." ::= { enterprises 41744 } ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 40 ::= { z3 1 } z3dec MODULE-IDENTITY LAST-UPDATED "201601010000Z" ORGANIZATION "Z3 Technology" CONTACT-INFO "Email: sales@z3technology.com" DESCRIPTION "Z3 MIB." REVISION "201601010000Z" DESCRIPTION "Initial version." ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 41 SnmpAdminString MAX-ACCESS read-only STATUS current DESCRIPTION "Returns audio stream status of z3 encoder" ::= { z3Status 3 } z3StatusSources OBJECT-TYPE SYNTAX SnmpAdminString ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 42 NOTIFICATION-TYPE STATUS current DESCRIPTION "This trap is sent when video input signal is recovered" ::= { z3Traps 3 } z3TempAbnormal NOTIFICATION-TYPE ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 43 "Returns display status of z3 decoder"2 ::= { z3DecStatus 2 } z3DecControlRunning OBJECT-TYPE SYNTAX INTEGER { start(1), stop(2) MAX-ACCESS read-write STATUS current DESCRIPTION ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 44 STATUS current DESCRIPTION "This trap is sent when decoder input stream is recovered" ::= { z3DecTraps 5 } z3DecPacketLoss NOTIFICATION-TYPE STATUS current DESCRIPTION ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 45 NOTIFICATION-TYPE STATUS current DESCRIPTION "This trap is sent when decoder input packet loss is recovered" ::= { z3DecTraps 7 } ---------------------------------------------------- ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 46: 7.0 Performing Other Operations With The Dme-10-G

    Once your changes have been set in this configuration, click on the “Save” button. Click “Save” Figure 32 Saving a User Preset ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 47: Using A Static Ip Address

    Enter in your desired network settings including “Local IP Address”, “Local Netmask”, “Default Gateway”, “DNS Server IP 1”, and “DNS Server IP 2”. Click on the “Save” button. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 48: Figure 33 Saving Updated Network Settings

    DOC-USR-0214-04 (2) Enter IP Address and desired network settings (1) Uncheck box (3) Click “Save” Figure 33 Saving Updated Network Settings ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 49: Figure 34 Save Complete Message

    If the unit appears in red, your computer’s IP address or Network Mask may not be compatible with the encoder and changes may be required before you can access the user interface. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 50: Figure 36 User Interface Using New Ip Address

    Open the User Interface Manually You can also access the user interface by manually typing your unit’s static IP address into a web browser. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 51: Advanced Settings Mode

    (8) Return to your channel tab to set additional encoding configuration parameters for your stream. See Section 8.2, Error! Reference source not found., for more information on the advanced s ettings available for each streaming output. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 52: Figure 38 Default Udp Settings (Left) And Advanced Udp Settings (Right)

    (9) You can return to the use of limited settings by un-checking the “Advanced Settings” box in the System Setup tab and saving that to the preset. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 53: Making A Firmware Update

    Update Via the User Interface The DME-10-G supports updating of firmware through the user interface. You will need an update file provided by Z3 Technology. You can find the software originally loaded on your encoder on the USB drive provided with your system.

  • Page 54: Figure 41 Insert Sd Card For Firmware Update

    Update Via SD Card The DME-10-G supports updating of firmware through an SD card. You will need an update file provided by Z3 Technology. You can find the software originally loaded on your encoder on the USB drive provided with your system.

  • Page 55: Setting A Password

    This is not editable. (4) Enter your selected password and click login to access the user interface. DME-10-G Figure 43 Password Entry Screen ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 56: Https Support

    Clicking on the “Go” button again will show you if your key and certificate file are valid. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 57 Upon completion selfsigned key and selfsigned.crt will be generated, these are the key and certificate files to be uploaded via the web ui in the section above. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 58: 8.0 Summary Of Options

    Sets a password to limit access to the user interface. Button Set HTTP/HTTPS Sets HTTP/HTTPS access to the web UI. See App Button Note for more information. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 59: The User Presets Tab

    Delete a configuration file. export Export current settings to a file. import Load settings from a previously exported file. reset Resets presets ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 60: The Status Tab

    Capture resolution for that input Capture frames per second for that input Parameter Options (default in Description bold) Refresh Click button to manually refresh information. Button ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 61 DOC-USR-0214-04 Auto Checked Sets whether the status tab will automatically refresh Refresh information once every ten seconds. Unchecked ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 62: The Ch1 Tab

    In separated mode the fields are set separately for an HEVC stream. The decoder will need to support ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 63 Kbps or higher is recommended for best results). The bitrate range for AACHE and AACHE V2 is 32 – 64 Kbps. Source HD-SDI Selects audio input source. HDMI ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 64 ZIXI causes streaming via Zixi Feeder to a Zixi Receiver compatible device. Shows the url for use in VLC (and others) to decode Decoder URL the stream. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 65 This can be especially useful for ensuring smooth playback at lower bitrates. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 66 SDI Mode and or a file for FILE Mode. Enables/Disables Forward Error Correction (FEC) FEC Enable (TSRTP Only) True False Sets number of FEC columns. FEC Columns (L) 1-19 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
  • Page 67 RUNNING indicates the unit is currently encoding. Error statuses will be preceded by an exclamation point and include a description of the error. Note 1: Encode Resolutions Supported: ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 68: The Ch2 & Ch3 Tabs (Channels 2 & 3)

    Encoder Setup Output 320x180 – 1280x720 The encode resolution. If this resolution is different from the Resolution capture resolution, resizing will occur. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 69: Values Appearing At The Bottom Of All Tabs

    “RUNNING” indicates the unit is currently encoding video. Error statuses will be preceded by an exclamation point and include a description of the error. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 70: Appendix A: Configuring The Wowza Server For Rtmp

    Click on “Applications” in the top band of options. On the left column, click on “live” and then “Incoming Security”. Click “Edit” and then make sure “RTMP Publishing” and “RTSP Publishing” ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 71: Figure 46 Wowza Security Settings

    Wowza. If you still run into issues, verify the Firewall on your PC with the Wowza server is turned off. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...

  • Page 72: Appendix B: Support And Troubleshooting

    APPENDIX B: Support and Troubleshooting Appendix B: Support When contacting Z3 Technology for additional support, please click the Download device logs button in the System Setup tab of the user interface at the time the problem occurs and send the resulting .tgz file, along with screenshots of all applicable tabs in the user interface to Z3.

  • Page 73: Appendix B: Warranty

    TTL to 5, you could enter “225.1.2.3/5” for the “Dest Address”. Appendix B: Warranty Z3 Technology’s Express Limited Warranty will be void if the label on the hardware bearing the Serial Number is removed, tampered with or defaced. You can view Z3 Technology’s full hardware warranty at http://z3technology.com/Support/ZEUS-HW-Warranty.html.
