Summary of Contents for Kongskilde FRL 10

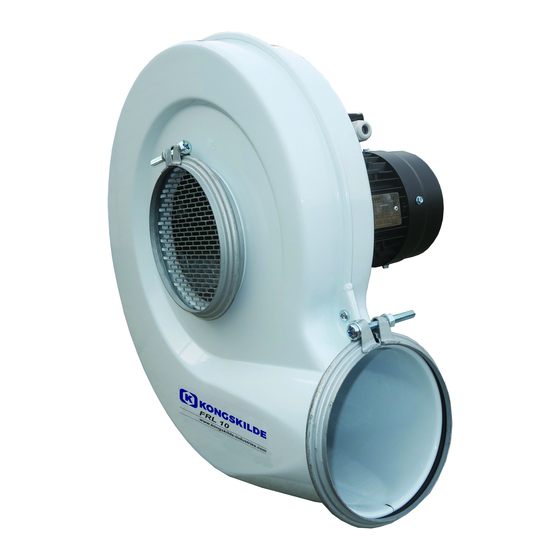

- Page 1 FRL 10 Centrifugal blowers Manual...
- Page 2 9 Insert the M8 x 70 mm tightener 3 Install the fan rotor all the way bolt with 1 washer, through the (Kongskilde FRL 10 Blowers are on the motor shaft and insert the tightener bracket and the end also available fully assembled with key.
- Page 4 Safety precautions. Never look or place hands into the fan rotor. Always disconnect the airstream, blower outlet or the blower from the power sup- other air/material discharge ply and check to insure that the Warning! Operating the blower points to check for restrictions! rotor has come to a complete without the finger guard in place stop before cleaning or servicing...
- Page 6 Fig. Part no. Pieces Notes 100 551 011 1.5HP-1PH-56C-3500RPM-115/230V 100 551 046 1.5HP-3PH-56C-3450RPM-230/460V 100 551 047 1.5HP-3PH-56C-3450RPM-575V Motor key 3/16" x 1 1/8" 100 382 051 3/8" lock washer 100 356 025 3/8" x 3/4" bolt - GR.5 100 315 028 Nut M6 100 332 002 Star washer M6...
- Page 8 121 220 270 You can always find the latest version of the manuals at 12.04.2019 www.kongskilde-industries.com www.kongskilde-grain.com Kongskilde Industries A/S Skælskørvej 64 DK - 4180 Sorø Tel. +45 72 17 60 00 mail@kongskilde-industries.com www.kongskilde-industries.com www.kongskilde-grain.com...
