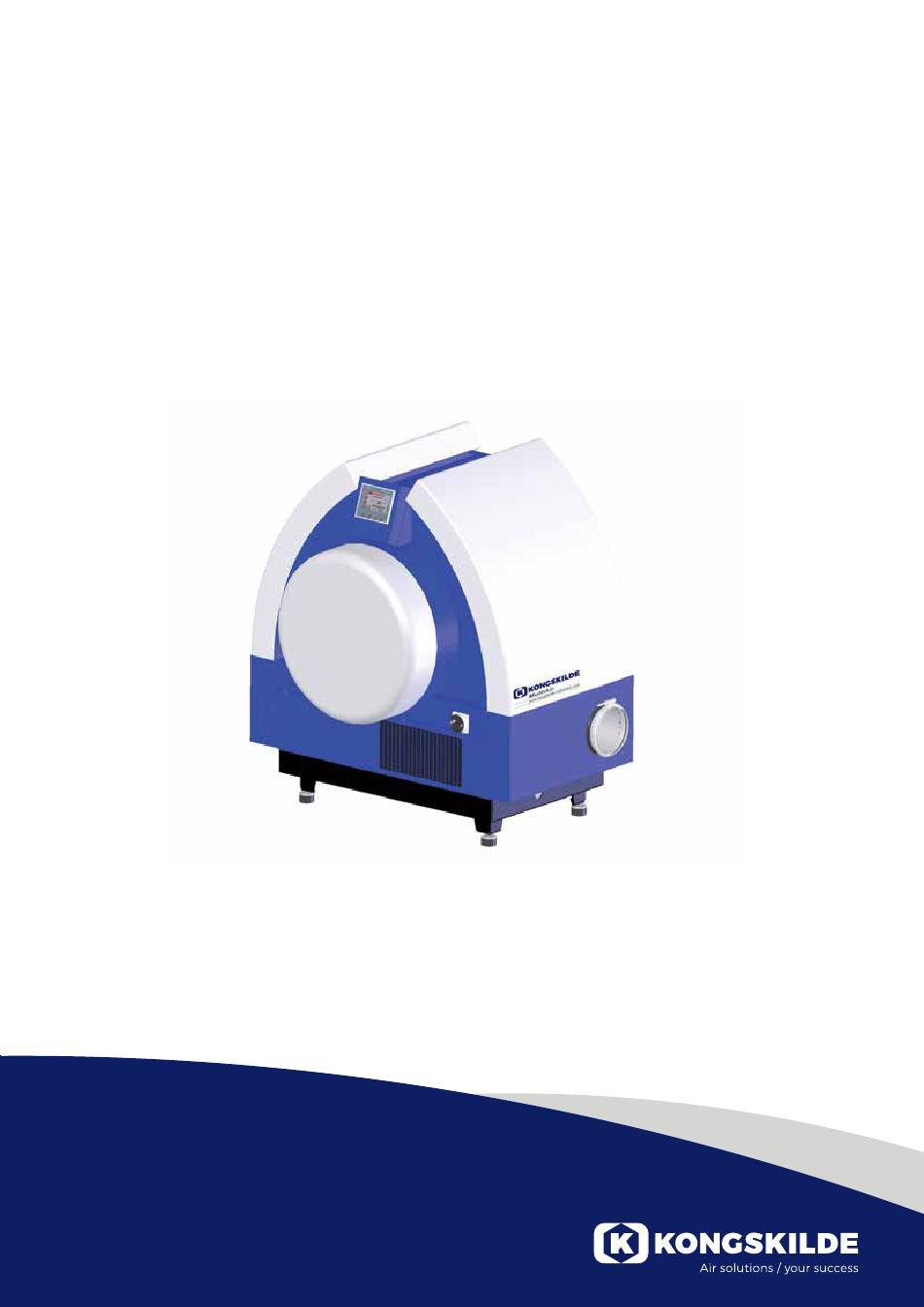

- Page 1 MultiAir FC 1000 / FC 2000 series Installation of filter kit From sales no. 123022000...
- Page 2 1 - remove the lower blue panel by loosening 4 screws, and put the panel aside 3 - cut off the foam strip as shown 2 - attach the enclosed foam strip in both lower corners 4 - insert the enclosed four foam blocks in both left and right side of the blowers bottom frame, and push the blocks forward / sideways, as far as possible.
- Page 3 6 - push sideways 9 - insert the new filter panel, by tilting in the top first, thereafter pushing in the bottom 7 - push forward 10 - reattach all four screws 8 - push sideways 11 - the filter is accessible by opening the door, after which the filter can be cleaned or replaced.
- Page 4 123 022 911 You can always find the latest version of the manuals at 01.11.2020 www.kongskilde-industries.com Kongskilde Industries A/S Skælskørvej 64 DK - 4180 Sorø Tel. +45 72 17 60 00 mail@kongskilde-industries.com www.kongskilde-industries.com...
