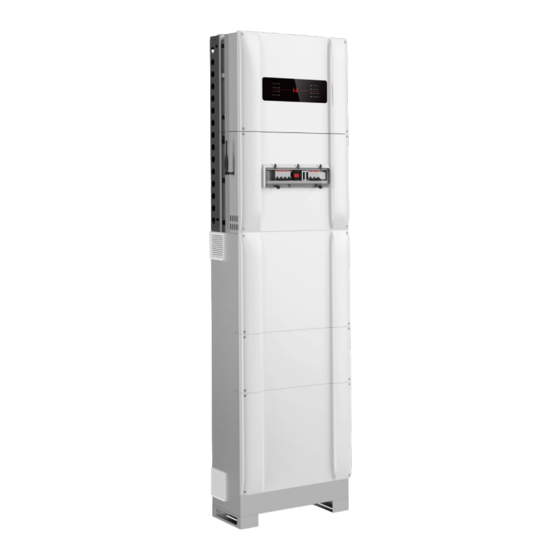

Goodwe GW5048-ESA User Manual

Hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Hybrid Inverter
GW5048-ESA
V1.4-2022-06-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW5048-ESA and is the answer not in the manual?

Questions and answers

Related Manuals for Goodwe GW5048-ESA

Summary of Contents for Goodwe GW5048-ESA

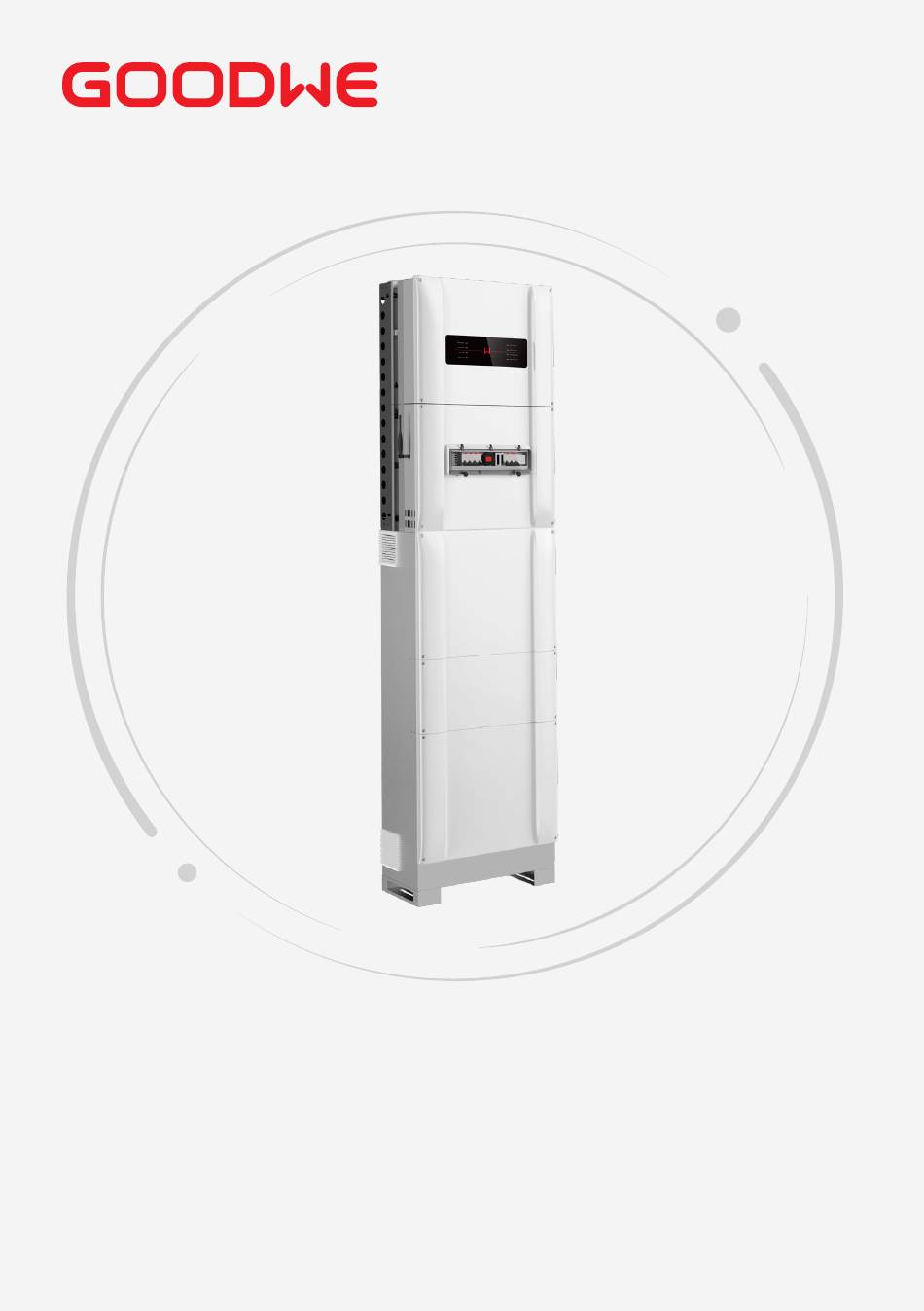

  • Page 1 User Manual Hybrid Inverter GW5048-ESA V1.4-2022-06-30...

  • Page 2: Table Of Contents

    User Manual V1.4-2022-06-30 Content TABLE OF CONTENTS 01 Introduction ............6 1.1 Functions ....................6 1.2 Features .....................6 1.3 Battery Selection ..................6 1.4 Dimensions....................7 02 Planning ..............8 2.1 Backup AC Loads ..................8 2.2 Inverter Operating Modes ...............8 2.2.1 General Mode ....................8 2.2.2 Off Grid Mode....................10 2.2.3 Standby Mode ....................10 2.2.4 Economic Mode ....................10...
  • Page 3 Content User Manual V1.4-2022-06-30 4.2.6 AC Wiring Connections And AC Circuit Breakers ........22 4.2.7 AC Utility Connections ..................23 4.2.8 AC Backup Loads Connections ..............24 4.3 Energy Meter Connections ..............25 05 Operation .............. 27 5.1 Circuit Breaker And Bypass Switch ............27 5.2 Start up ....................28 5.3 Shut down....................29 5.4 Inverter System LED Indicators ............30...
  • Page 4 (for example VDE-AR-N4105 in Germany). The GoodWe smart hybrid strictly conforms to all related safety rules in design and test. Safety regulations relevant to the location should be followed during installation, operation and maintenance.
  • Page 5 User Manual V1.4-2022-06-30 Safety Precautions Symbol Definition WARNING! Hazard to human life This type of notation indicates that the hazard could be harmful to human life. WARNING! Burn hazard Danger of hot surface! CAUTION! Hazard to equipment This type of notation indicates that the hazard may cause damage to the equipment. Components of this product can be recycled.
  • Page 6 • Do not perform any servicing other than that specified in the installation instructions unless qualified to do so, or have been instructed to do so by GoodWe technical support personnel. • Solar arrays can be energized with minimal ambient light available. To ensure a safe disconnect from the system, install a high voltage DC rated disconnect, breaker, or accessible fuse box (depending on local code requirements).
  • Page 7 WARNING: Fire hazard • Do not keep combustible or flammable materials in the same room as the equipment. The GoodWe Smart Hybrid contains relays and switches which are not ignition protected. • Ensure AC, DC and ground cable sizes conform to local codes. See product manuals for minimum size requirements.
  • Page 8 Make sure all devices are de-energized or disconnected to avoid causing a spark. IMPORTANT • Use the battery types recommended by GoodWe. Follow the battery manufacturer's recommendations for installation and maintenance. • Insulate batteries appropriately against freezing temperatures. A discharged battery will freeze more easily than a charged one.

  • Page 9: Introduction

    • The GW5048-ESA is designed to work with lithium-ion batteries only. • The GW5048-ESA is designed to work with a nominal 48-Volt battery bank. The actual voltage of battery can vary during operation from 40 to 60 VDC depending on the battery type and number of cells in series.

  • Page 10: Dimensions

    User Manual V1.4-2022-06-30 01 Introduction 1.4 Dimensions 516mm 290mm 832mm 832mm Figure 1: Dimensions Top clearance 300mm Side clearance Side clearance Front clearance 500mm 500mm 1200mm Figure 2: Minimum clearance requirements...

  • Page 11: Planning

    02 Planning 2.1 Backup AC Loads The GoodWe Smart Hybrid Inverter can provide up to 5000 Watts of continuous AC power for AC loads, which are connected to the backup loads. The system can provide a maximum of 6900 watts of AC power for up to 10 seconds to start loads, which require a higher amount of power initially.
  • Page 12 User Manual V1.4-2022-06-30 02 Planning 4000W Solar Array 230V Utility Grid 3000W 1000W 48V Battery AC Loads If the power generated by photovoltaic is insufficient to provide load power, the remaining energy is provided by the battery, if it is still insufficient, then the grid provided. 3000W Solar Array 230V Utility Grid...

  • Page 13: Off Grid Mode

    02 Planning User Manual V1.4-2022-06-30 2000W Solar Array 3000W 1000W AC Loads 48V Battery 2.2.2 Off Grid Mode Off grid mode: Photovoltaic and battery constitute a pure off-grid system, suitable for non-grid areas. 2.2.3 Standby Mode Standby mode: Battery discharges only in abnormal condition of grid, similar to uninterrupted power supply.

  • Page 14: Installation

    User Manual V1.4-2022-06-30 03 Installation 03 Installation The following equipment are supplied for installation of GoodWe GW5048-ESA; • Wall mounting plate with mounting hardware kit. • Balance of System (BoS). • GoodWe Smart Hybrid Solar Inverter System. • Battery Enclosure (supplied separately).

  • Page 15: Tools Required

    03 Installation User Manual V1.4-2022-06-30 3.3 Tools Required The following tools are recommended when installing the equipment. Use other auxiliary tools on site if necessary. DC terminal Goggles Safety shoes Dust mask Safety gloves crimping tool DC wiring Diagonal pliers Wire stripper Hammer drill Heat gun...

  • Page 16: Battery Enclosure Installation

    • Mount and secure the mounting plate to a solid surface before attaching any wiring. Note: if this inverter is being installed without a GoodWe Battery Enclosure, it is recommended that if you wish to install the GoodWe Battery Enclosure ( BCL0096) in the future you should mount the inverter 1206mm from the floor.

  • Page 17: Mounting The Inverter

    03 Installation User Manual V1.4-2022-06-30 3.7 Mounting the Inverter WARNING: Shock hazard Do not place the inverter in a vertical position with the weight of the inverter on the connectors at the bottom of the chassis. The connectors may be damaged and/or foreign materials may enter them.

  • Page 18: Installation Planning

    User Manual V1.4-2022-06-30 04 Installation Planning 04 Installation Planning The installer should follow the following procedure to make the system ready for start up. 4.1 Removing the BoS Covers BoS wiring compartment cover(AC and DC connections) Remove this cover during installation. The solar array and battery connectors: Flip-up weatherproof cover (circuit...

  • Page 19: Bos Wiring

    04 Installation Planning User Manual V1.4-2022-06-30 4.2 BoS Wiring The section describes required wiring in BoS. The terminals and connectors inside BoS are displayed in the following figure. The following notes must be considered when wiring the BoS: • All system wiring must comply with national and local codes and regulations. •...

  • Page 20: System Wiring Diagram

    User Manual V1.4-2022-06-30 04 Installation Planning 4.2.1 System Wiring Diagram 230V Main panel Utility grid 230 vac panel PV isolator Battery 125 amp Utility grid 40 amp per pole80/125VDC 400Vac 2-pole Backup 25 amp CT sensor 2-pole circuit breaker circuit breaker 400Vac 2-pole WiFi circuit breaker...

  • Page 21: Protective Earth (Pe) Wiring

    04 Installation Planning User Manual V1.4-2022-06-30 4.2.2 Protective Earth (PE) Wiring Table 1 - Earth conductor size and torque requirements Terminal location Maximum conductor size Torque requirements PE Ground 16mm 3.5 Nm WARNING: Shock hazard The unit must be connected to a properly earthed, permanent wiring system in compliance with standards (like VDE-AR-N 4105 in Germany).

  • Page 22: Solar Array Wiring

    User Manual V1.4-2022-06-30 04 Installation Planning 4.2.3 Solar Array Wiring WARNING: Shock hazard Solar arrays can be energised with minimal ambient light available. Be careful when working with the wiring and connectors to avoid shock or arcing. Table 2 - Solar array conductor size and torque requirements Terminal location Conductor size Solar 1...

  • Page 23: Battery Management Systems (Bms) Communications Connections

    The Battery Management System (BMS) communication is required for all system installation with batteries. It can communicate only with models of batteries which have been tested and approved for use with the GoodWe Smart Hybrid Inverter. Use of other lithium-ion batteries is not permitted.
  • Page 24 User Manual V1.4-2022-06-30 04 Installation Planning Battery management system (BMS) communication cable Approved battery Figure 15: BMS...

  • Page 25: Ac Wiring Connections And Ac Circuit Breakers

    04 Installation Planning User Manual V1.4-2022-06-30 4.2.6 AC Wiring Connections And AC Circuit Breakers Table 5 - AC conductor size and torque requirements Terminal location Conductor size Torque requirements Line and neutral 16mm 3.5Nm Earth 16mm 3.5Nm PV isolator Utility grid 40 amp Battery 125 amp per 400Vac 2-pole pole80/125VDC 2-pole...

  • Page 26: Ac Utility Connections

    User Manual V1.4-2022-06-30 04 Installation Planning 4.2.7 AC Utility Connections To connect the inverter to the utility grid: 1. Ensure that the main panel is connected to a primary earth protective system. 2. Connect the inverter's earth wire to the earth bus bar.

  • Page 27: Ac Backup Loads Connections

    04 Installation Planning User Manual V1.4-2022-06-30 4.2.8 AC Backup Loads Connections IMPORTANT See Section 2.1 Backup Loads for details on what AC loads are acceptable to use with the inverter. PV isolator Battery 125 amp per Utility grid 40 amp pole80/125VDC 2-pole Backup 25 amp 400Vac 2-pole circuit...

  • Page 28: Energy Meter Connections

    User Manual V1.4-2022-06-30 04 Installation Planning 4.3 Energy Meter Connections The utility grid energy meter is used to measure the amount of energy which is flowing from or to the utility grid, and to allow the inverter to limit or restrict power flow back into the utility grid by adjusting the amount of power being supplied from the solar array and the battery.
  • Page 29 04 Installation Planning User Manual V1.4-2022-06-30 Main panel 230V Utility grid 40 amp 230 vac panel Utility grid Backup 25 amp 400Vac 2-pole 400Vac 2-pole circuit breaker Earth circuit breaker CT sensor Manual AC load Grid main 230V 0.1 Amp 25 amp 250Vac utility grid fuse...

  • Page 30: Operation

    User Manual V1.4-2022-06-30 05 Operation 05 Operation 5.1 Circuit Breaker And Bypass Switch There is one DC circuit breaker for the battery connection and two AC circuit breaker for connection of the grid and backup load. In addition, there is a bypass switch inside the BoS. The bypass switch is a three-position switch which depending on the position it is put in, determines where the power is supplied from to the loads downstream of the backup circuit.

  • Page 31: Start Up

    05 Operation User Manual V1.4-2022-06-30 5.2 Start up Perform the following steps to start up the system WARNING: Shock and burn hazard Hybrid Inverter Ensure the covers are replaced before proceeding. On the inverter 1. Access the circuit breaker panel on the inverter by opening the access panel on the front of the unit.

  • Page 32: Shut Down

    User Manual V1.4-2022-06-30 05 Operation 5.3 Shut down Perform the following steps to shut down the system WARNING: Shock and burn hazard Hybrid Inverter Do not remove ANY covers while the unit is Active. Allow a minimum of 5 minutes for internal parts to cool down before removing any cover to perform maintenance.

  • Page 33: Inverter System Led Indicators

    05 Operation User Manual V1.4-2022-06-30 5.4 Inverter System LED Indicators Indicator Status Explanation ON = The system is ready. SYSTEM READY BLINK = The system is starting. OFF = The system is not working. ON = Back-up is ready / power available. BACKUP POWEWR OFF = Back-up is off / power not available.

  • Page 34: Internet Connection

    User Manual V1.4-2022-06-30 06 Internet Connection 06 Internet Connection To get the best user experience and keep the system up to date, the installer needs to configure the unit to connect to internet during commissioning. The inverter can be connected to the internet using WiFi. However, due to the location of the inverter, WiFi may have inconsistent connectivity resulting higher levels of support requests from the customers.

  • Page 35: Pv Master

    If everything is right well, the WiFi LED on inverter will change from double blink to quartic blink then to solid status, which means WiFi is connected to GoodWe icloud successfully. WiFi configuration could also be done on PV Master, details please check on PV Master APP.

  • Page 36: Troubleshooting

    User Manual V1.4-2022-06-30 07 Troubleshooting 07 Troubleshooting ERROR MESSAGE DESCRIPTION Utility Loss Grid is disconnected or unavailable FAC failure Grid frequency no longer within permissible range PV over voltage Solar array voltage is too high Over temperature Over temperature on the case Isolation failure Ground insulation impedance is too low Ground l failure...

  • Page 37: Technical Parameters

    08 Technical Parameters User Manual V1.4-2022-06-30 08 Technical Parameters Technical Data GW5048-ESA Battery Enclosure Data Weight (kg) Dimension (W×H×D mm) 516×1205×280 Mounting Method Wall Mounted Ingress Protection Rating IP54 Inverter Data Battery Input Data Battery Type Li-Ion Nominal Battery Voltage (V)
  • Page 38 User Manual V1.4-2022-06-30 08 Technical Parameters Max. Apparent Power Output to Utility Grid 5,000 (VA) Nominal Apparent Power from Utility Grid 9,200 (VA) Max. Apparent Power from Utility Grid (VA) 9,200 Nominal Output Voltage (V) Output Voltage Range (V) 0~300 Nominal AC Grid Frequency (Hz) 50/60 AC Grid Frequency Range (Hz)
  • Page 39 08 Technical Parameters User Manual V1.4-2022-06-30 European Efficiency 97.0% Max. Battery to AC Efficiency 94.0% MPPT Efficiency 99.9% Protection PV Insulation Resistance Detection Integrated Residual Current Monitoring Integrated PV Reverse Polarity Protection Integrated Anti-islanding Protection Integrated AC Overcurrent Protection Integrated AC Short Circuit Protection Integrated AC Overvoltage Protection...
  • Page 40 User Manual V1.4-2022-06-30 08 Technical Parameters Battery: A PV: C The Decisive Voltage Class (DVC) AC: C Com: A Mounting Method Wall Mounted Active Anti-islanding Method AFDPF+AQDPF Type of Electrical Supply System Single Phase TN/TT System Country of Manufacture China *1: The actual charge and discharge current also depends on the battery.

  • Page 41: Certifications, Standards And Approvals

    09 Certifications, standards and approvals User Manual V1.4-2022-06-30 09 Certifications, standards and approvals VDE - AR - N 4105 IEC62109-1 Ed 1.0 IEC62109-2 Ed 1.0 IEC62040-1 Ed 1.0...
  • Page 42 Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com 340-00767-02 Local Contacts...
