Technical Data

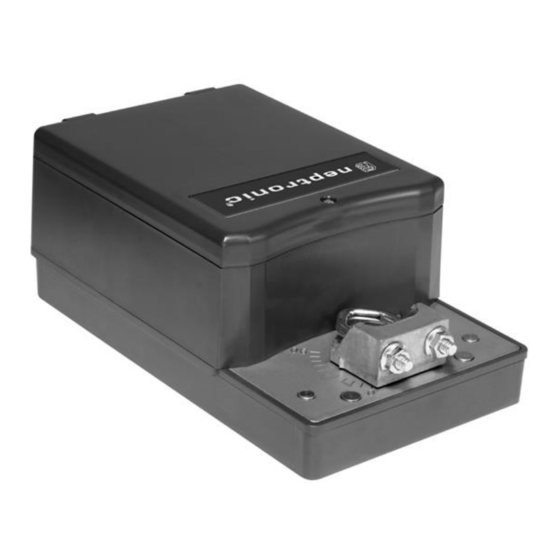

TM200N
Auxiliary switches
Fail safe - Enerdrive
Power consumption
Torque
Running time
through 90º
Power supply
Feedback
Electrical connection
Inlet bushing
Control signal
Angle of rotation
Direction of rotation
Operating
temperature
Storage temperature
Relative Humidity
Weight
Warning: Do not press the clutch when actuator is powered
Dimensions
Caution
We strongly recommend that all Neptronic
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
1
Enerdrive System U.S.A. Patent #5,278,454
TM2N-RM2N_211215
Features:
•
Clutch for manual adjustments.
•
Maintenance free.
•
Position indicator.
•
Control signal fully programmable.
•
Brushless DC driven motor.
•
Fail safe by Enerdrive System
(on model 260 & 280).
•
Auxiliary switches
(on model 260 & 280).
TM220N
No
Yes (2)
No
20 VA
180 in.lb. [20 Nm] at rated voltage
28 to 32 Vdc or 22 to 26 Vac, 220 to 250 Vac 50/60Hz
Analog, Digital or PWM programmable (factory set with analog control signal
0 to 90 degrees, electronically adjustable (factory set with 90º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
5 lbs. [2.3 kg]
®
products be wired to a separate transformer and that transformer shall service only Neptronic
Specification & Installation Instructions
1
TM260N
RM200N
No
No
Yes
45 VA Peak,
30 VA
20 VA
40 to 50 sec torque dependant
4 to 20 mA or 2 to 10 Vdc adjustable
2
18 AWG [0.8 mm
] minimum
2 inlet bushing of 7/8 in [22.2 mm]
0ºF to 122ºF [-18ºC to 50ºC]
-22ºF to 122ºF [-30ºC to 50ºC]
5 to 95 % non condensing.
Dimension
RM220N
RM260N
Yes (2)
No
No
50 VA Peak, 30 VA
360 in.lb. [40 Nm] at rated voltage
)
8 lbs. [3.5 kg]
Imperial (in)
A
5.20
B
1.33
C
9.13
D
3.55
®
products. This precaution will
Actuator
TM200N
TM220N
TM260N
RM200N
RM220N
RM260N
RM280N
RM280N
Yes (2)
Yes
Metric (mm)
132.1
33.8
231.9
90.2
1
