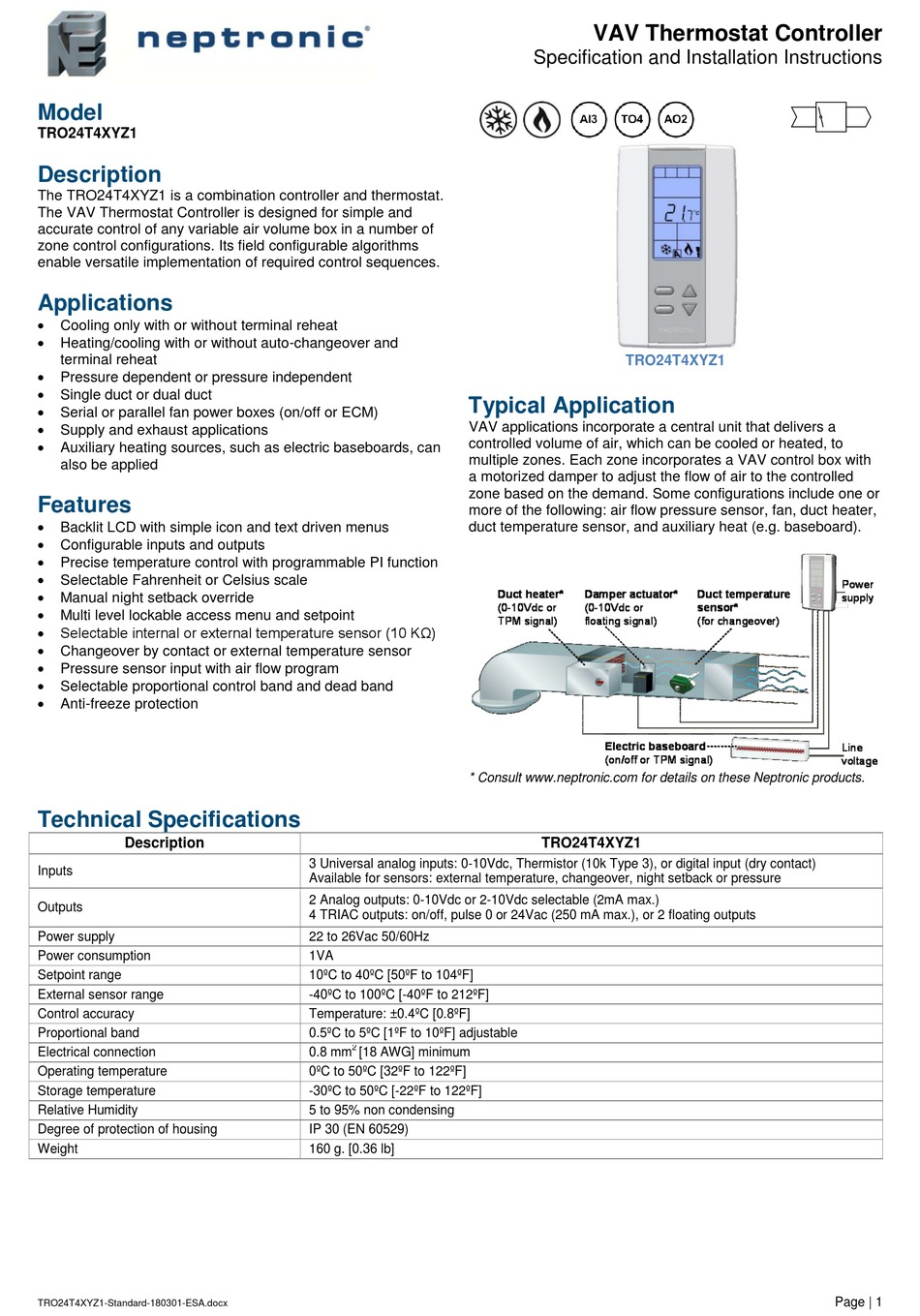

Neptronic TRO24T4XYZ1 Specification And Installation Instructions

Neptronic TRO24T4XYZ1 Specification And Installation Instructions

Vav thermostat controller

Advertisement

Quick Links

Model
TRO24T4XYZ1
Description

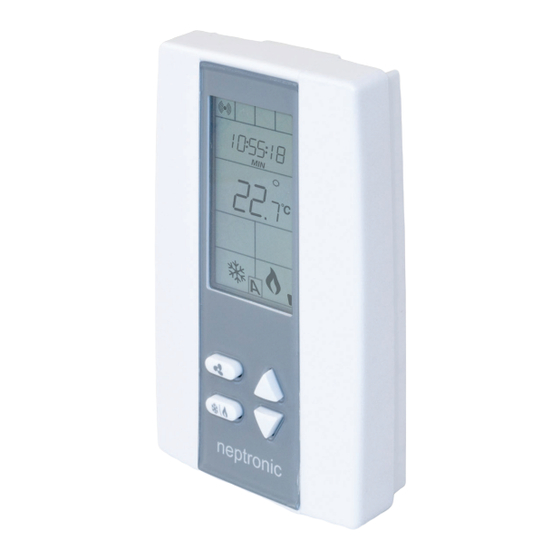

The TRO24T4XYZ1 is a combination controller and thermostat.
The VAV Thermostat Controller is designed for simple and
accurate control of any variable air volume box in a number of
zone control configurations. Its field configurable algorithms
enable versatile implementation of required control sequences.
Applications
Cooling only with or without terminal reheat
Heating/cooling with or without auto-changeover and
terminal reheat
Pressure dependent or pressure independent
Single duct or dual duct
Serial or parallel fan power boxes (on/off or ECM)
Supply and exhaust applications
Auxiliary heating sources, such as electric baseboards, can
also be applied
Features
Backlit LCD with simple icon and text driven menus
Configurable inputs and outputs
Precise temperature control with programmable PI function
Selectable Fahrenheit or Celsius scale
Manual night setback override
Multi level lockable access menu and setpoint
Selectable internal or external temperature sensor (10 KΩ)
Changeover by contact or external temperature sensor
Pressure sensor input with air flow program
Selectable proportional control band and dead band
Anti-freeze protection
Technical Specifications
Description
Inputs
Outputs
Power supply
Power consumption
Setpoint range
External sensor range
Control accuracy
Proportional band
Electrical connection
Operating temperature
Storage temperature
Relative Humidity
Degree of protection of housing
Weight
TRO24T4XYZ1-Standard-180301-ESA.docx
Typical Application
VAV applications incorporate a central unit that delivers a
controlled volume of air, which can be cooled or heated, to
multiple zones. Each zone incorporates a VAV control box with
a motorized damper to adjust the flow of air to the controlled
zone based on the demand. Some configurations include one or
more of the following: air flow pressure sensor, fan, duct heater,
duct temperature sensor, and auxiliary heat (e.g. baseboard).
* Consult www.neptronic.com for details on these Neptronic products.
3 Universal analog inputs: 0-10Vdc, Thermistor (10k Type 3), or digital input (dry contact)
Available for sensors: external temperature, changeover, night setback or pressure
2 Analog outputs: 0-10Vdc or 2-10Vdc selectable (2mA max.)
4 TRIAC outputs: on/off, pulse 0 or 24Vac (250 mA max.), or 2 floating outputs
22 to 26Vac 50/60Hz
1VA
10ºC to 40ºC [50ºF to 104ºF]
-40ºC to 100ºC [-40ºF to 212ºF]
Temperature: ±0.4ºC [0.8ºF]
0.5ºC to 5ºC [1ºF to 10ºF] adjustable
2
0.8 mm
[18 AWG] minimum
0ºC to 50ºC [32ºF to 122ºF]
-30ºC to 50ºC [-22ºF to 122ºF]
5 to 95% non condensing
IP 30 (EN 60529)
160 g. [0.36 lb]
VAV Thermostat Controller
Specification and Installation Instructions
TRO24T4XYZ1
TRO24T4XYZ1
Page | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRO24T4XYZ1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Neptronic TRO24T4XYZ1

  • Page 1 Specification and Installation Instructions Model TRO24T4XYZ1 Description The TRO24T4XYZ1 is a combination controller and thermostat. The VAV Thermostat Controller is designed for simple and accurate control of any variable air volume box in a number of zone control configurations. Its field configurable algorithms enable versatile implementation of required control sequences.
  • Page 2 ºF / º C Wiring We strongly recommend that all Neptronic products be wired to a separate grounded transformer and that transformer shall service only Neptronic products. This precaution will prevent interference with, and/or possible damage to incompatible equipment. Terminal Description...
  • Page 3: Mounting Instructions

    Analog Output 1 Temperature Analog Output 2 Heating Analog Input 1 Cooling Analog Input 2 TRIAC Output 1 Analog Input 3 TRIAC Output 2 Air Flow TRIAC Output 3 Night Set Back TRIAC Output 4 Timer/Clock www.neptronic.com Page | 3...
  • Page 4: Setpoint And User Control

    Yes / No If you select Yes, the user can set the unit to “Off” via the Control Mode (see page 13). If you select No, the “Off” selection does not appear in the Control Mode. www.neptronic.com Page | 4...
  • Page 5 Cr1 (Cooling ramp 1) Range: Cr1, Cr2, Hr1, Hr2, COr, OFF Select the desired ramp from the available options.  If you selected PULs at Step 13, only Heating Ramp 1 and Heating Ramp 2 will be available. www.neptronic.com Page | 5...
  • Page 6 This option appears if you selected OnOf at Step 16. Select the percentage at which you want TO3 to close (at % of demand of the ramp selected at Step 17). Contact automatically opens at 0% of the demand. www.neptronic.com Page | 6...
  • Page 7 If you selected OFF for AO1, go to Step 29. If you selected OFF for both AO1 and AO2, go to Step 32. Cooling Ramp 1 Cooling Ramp 2 Heating Ramp 1 Heating Ramp 2 Changeover Ramp www.neptronic.com Page | 7...
  • Page 8 Changeover Setpoint and cooling mode activates when the temperature read by the external sensor is below the Changeover Setpoint (see Step 36).  If PrSd or PrSa is selected in a pressure independent VAV system, you must perform a calibration by using the Air Flow Program Mode (Operation Mode) on page 11. www.neptronic.com Page | 8...
  • Page 9 Setback mode, the end user can override the Night Setback setpoints for the duration of this delay (refer to Operation Mode on symbol is displayed to indicate “Night Setback” page 13). To disable Night Setback override, set the delay to 0. The moon mode. www.neptronic.com Page | 9...
  • Page 10 “Control Ramp 2 Cooling” Default: 2.0ºC [4ºF] Range: 0.5 to 5.0ºC [1 to 10ºF] Increment: 0.5ºC [1ºF] Select the desired proportional band value of the cooling ramp 2. The cooling symbol is also displayed. www.neptronic.com Page | 10...
  • Page 11 The thermostat will return to normal mode if you navigate through the entire menu and do not make any selection, or if you do not press any key for 5 minutes. The changed values will be saved automatically. www.neptronic.com Page | 11...
  • Page 12 Select the desired value of the maximum airflow in cooling. The maximum value is restricted by the minimum value (Step 59). “Minimum Heating Airflow” Default: 0 to “maximum heating airflow” Range: Increment: Select the desired value of the minimum airflow in heating. The minimum value is restricted by the maximum value (Step 62). www.neptronic.com Page | 12...
  • Page 13: Operation Mode

    °C and °F Setpoint value Press to change mode: - Auto - Off - Cool only Change setpoint value °F/°C °F/°C °F/°C - Heat only Exits after 5 sec. Exits after 5 sec. Exits after 3 sec. www.neptronic.com Page | 13...
  • Page 14 This function is only available if you’ve set one of the analog inputs to either PrSd or PrSa (pressure sensor) in Step 32, 33 or 34 on page 8. Press and hold the key for 5 seconds to display the airflow value. www.neptronic.com Page | 14...
  • Page 15 Notes...
  • Page 16 Recycling at end of life: please return this product to your Neptronic local distributor for recycling. If you need to find the nearest Neptronic authorized distributor, please consult www.neptronic.com. 400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada www.neptronic.com Toll free in North America: 1-800-361-2308 Tel.: (514) 333-1433...
