Technical Data
Auxiliary switches
Feedback
Fail safe - Enerdrive
Power consumption
Control signal
Running time through
90º
Torque
Power supply
Electrical connection
Inlet bushing
Angle of rotation
Direction of rotation
Ambient temperature
Storage temperature
Relative Humidity
Weight
Ingress protection
Dimensions
D
C
Caution
We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
1
Enerdrive System U.S.A. Patent #5,278,454
BT/070628

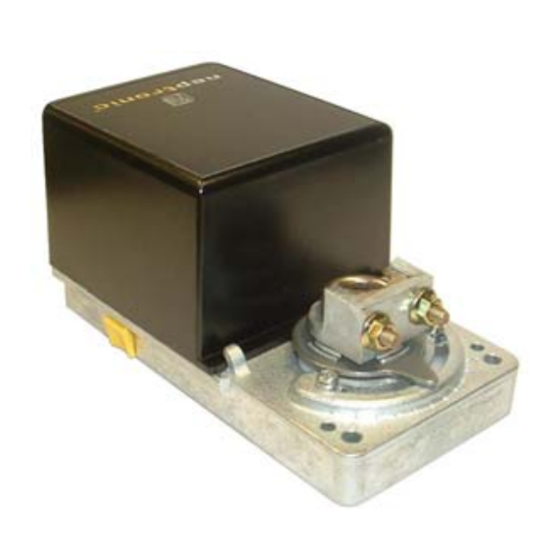

Feature:
• Mounts easy on round
& square shaft (with option –8).
• External clutch for manual adjustments.
• Maintenance free.
• Position indicator.
• Fail safe by Enerdrive System
(on model 060, 065 & 080).
• Auxiliary switches
(on model 020 & 080).
BT000
BT005
BBT1000A
BBT1005A
No
No
No
Yes
No
6 VA
3 wire / 2 position, 3 wire / 3 point floating
0 to 90 degrees, mechanically adjustable (factory set with 90º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
IP54 equivalent to Nema type 3R if water tight inlet bushings (not supplied NEP617) are installed
Warning: Do not press the clutch when actuator is powered
A
B
Specification & Installation instructions
1
BT020
BBT1021A
Yes (2)
No
20 to 30 sec Torque dependant
50 in.lb. [5,6 Nm] at rated voltage
22 to 26 VAC or 28 to 32 VDC
2
18 AWG [0.8 mm
] minimum
2 inlet bushing of 5/8 in [15.9 mm] & 7/8 in [22.2 mm]
-22ºF to +122ºF [-30ºC to +50ºC]
-22ºF to +122ºF [-30ºC to +50ºC]
5 to 95 % non condensing.
3 lbs. [1.4 kg]
IP22 equivalent to Nema type 2,
Dimension
A
B
C
D
Old Number
BBT1000A
BBT1005A
BBT1021A
BBT1060A
BBT1065A
BBT1080A
BT060
BT065
BBT1060A
BBT1065A
No
No
No
Yes
Yes
15VA Peak, 6VA
2 wire / 2 position, 4 wire / 3 point floating
Inches
Metric (mm)
1.50
3.26
6.60
3.01
Actuator
BT000
BT005
BT020
BT060
BT065
BT080
BT080
BBT1080A
Yes (2)
No
38.1
82.8
167.5
76.4
1
