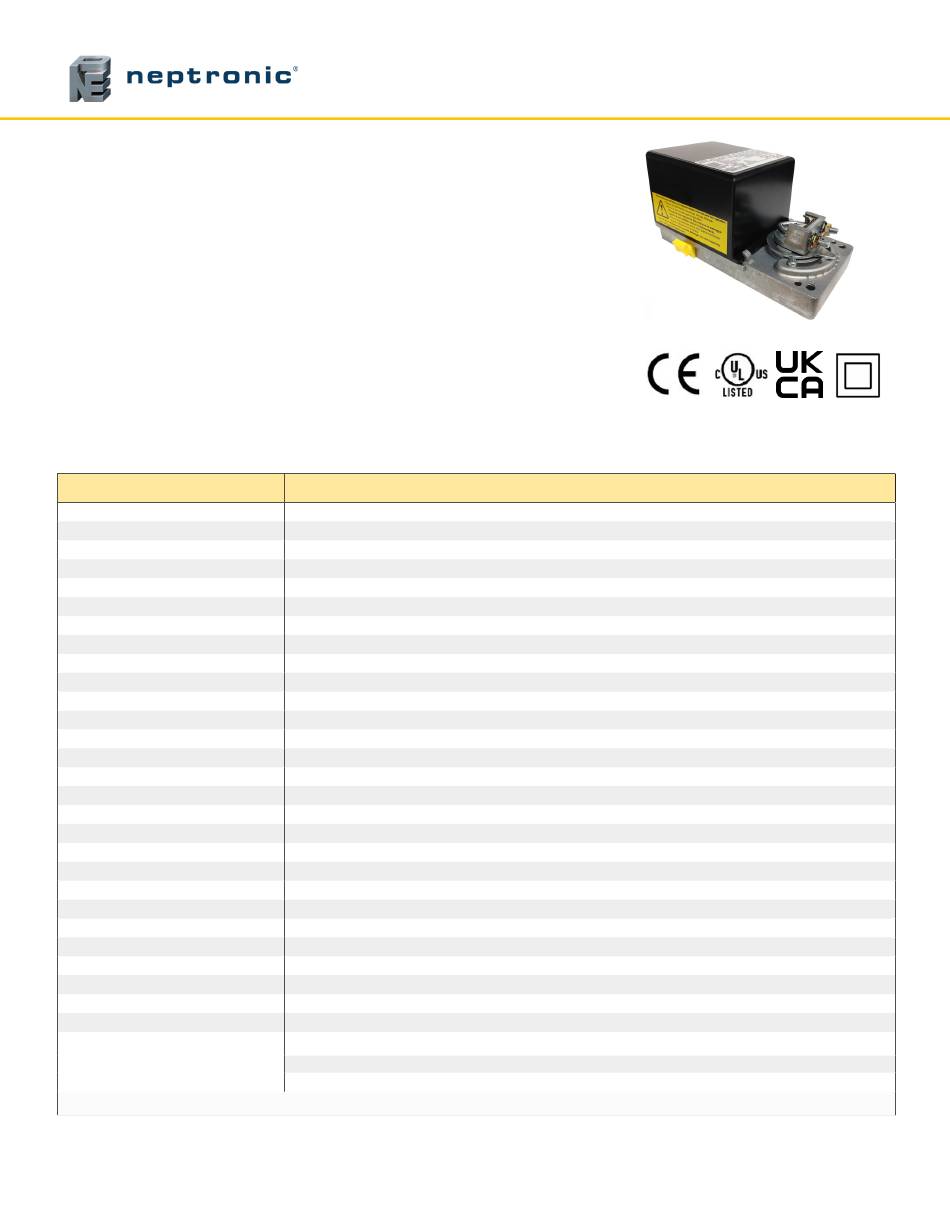

Neptronic BT160 Specification And Installation Instructions

Models

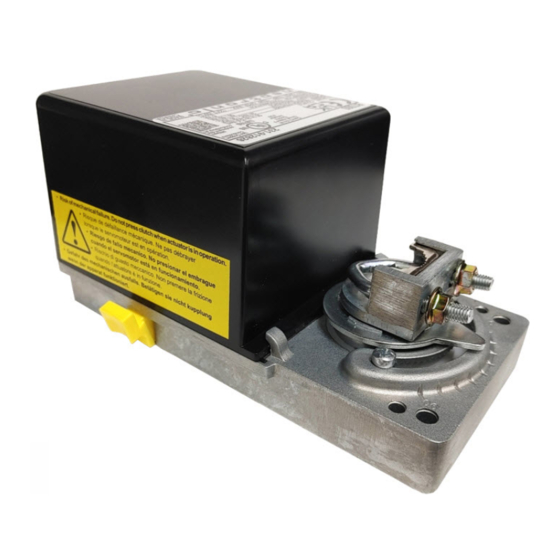

BT160 Actuator: 50 in.lb. (5.6Nm) with fail safe

Features

• Contactless feedback positioner
• Mounts easily on round and square shafts
• Manual clutch
• Maintenance-free
• Position indicator
• FT6 18/4 cable with strain release NP NEP617-2 (P/N:
BB Cable-02) (optional)
• ½" (16mm) BW BXCON-1 conduit connector (optional)
• FD5-B 5000 Ohms feedback potentiometer (optional)
• AC2-B adjustable auxiliary switch (optional)
• Fail safe by Enerdrive System

Description

Torque
Running Time (for 90° Rotation)
Fail Safe (Enerdrive)
Fail Safe Runtime (0° to 90°)
Capacitor Charge Time on / Power-up
Power Consumption
Overload Protection
Power Supply
Transformer Requirements
Cable
Electrical Connection
Impedance
Control Signals
Feedback Signals
Angle of Rotation
Direction of Rotation
Cycles
Noise Produced
Ingress Protection
Operating Temperature
Storage Temperature
Relative Humidity
Weight
Purpose and Action of Control
Construction of Control
Pollution Degree
Impulse Voltage
Quality Management System
Certification
BT160-231122
Optional 4-wire FT6 plenum cable (part#: BB Cable-02) (18AWG) with strain release (NP NEP617-2)
Reversible, CW: Clockwise, CCW: Counter Clockwise (default: CW)
Complies to standards: UL 60730-1 & UL 60730-2-14, CSA E60730-1 & CSA E60730-2-14
Complies to Low Voltage Directive & Electromagnetic Compatibility Directive
Complies to Electrical Equipment (Safety) Regulations & Electromagnetic Compatibility Regulations
WARNING: Risk of mechanical failure. Do NOT press clutch when actuator is in operation.
neptronic.com | 514-333-1433 | contact@neptronic.com
Specification and Installation Instructions

Applications

• Small dampers
• Unit ventilators
• 1/4 turn valves
• VAV box control
• Fan coils
BT160 Actuator
50 in.lb. [5.6 Nm] at rated voltage
20 to 30 seconds torque dependent
Yes
30 seconds
60 seconds
14.5VA peak, 5VA (during operation)
Electronic throughout, 0° to 90° rotation
110 to 130 Vac | 50/60Hz
None
Optional BX conduit connector (BW BXCON-1)
N/A
On/Off or floating
Optional add-on FD5-B 5000 ohms feedback potentiometer
0° to 90°, mechanically adjustable (default: 90° stroke)
100,000 full cycles, 1,500,000 repositions
45 dB(A)
IP22 equivalent to Nema type 2
0°F to +122°F [-18°C to +50°C]
-22°F to +122°F [-30°C to +50°C]
5 to 95% non-condensing
3 lb. [1.4kg]
Type 1 operating control, electric actuator
Independently mounted
2
330V
ISO 9001:2015
