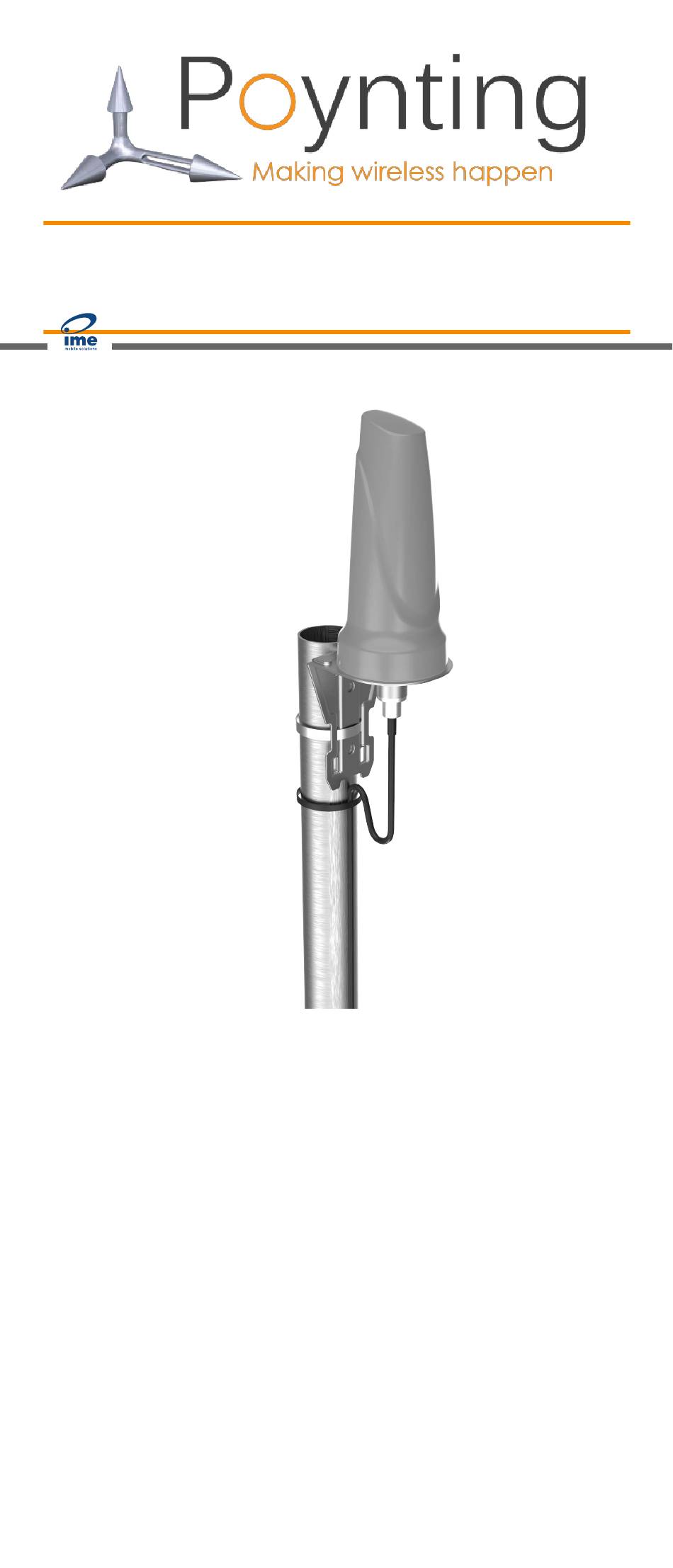

- Page 1 OMNI-704 www.ime.de User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157 Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 www.ime.de PCL-A-OMNI-0704...
- Page 3 Index Packing Check List Introduction www.ime.de Antenna Mounting Precautions Cable Routing Safety Version 2.0...
- Page 4 Packing Check List Item Description Quantity A-OMNI-0704 Antenna Only www.ime.de Wall Knock-in Screws Pipe Clamp Adhesive Disc L-Bracket M4 stainless steel machine screw and washer PCL-A-OMNI-0704...
- Page 5 Appearance of Components Antenna Unit www.ime.de Wall Knock-in Screw Pipe Clamp Adhesive Disc L-Bracket M4 machine screws and M4 flat washers Version 2.0...
- Page 6 Tools which may be required: 6mm Masonry drill bit www.ime.de Impact drilling machine Screw driver-Cross slot/Philips Hammer PCL-A-OMNI-0704...
- Page 7 2. Introduction This User Guide provide information on the installation instructions of the Omni-directional antenna (A-OMNI-0704). For both pole and wall mount options, attach www.ime.de the L-Bracket to the antenna first using the provided M4 screws and washers. Antenna Configuration 1 Pole mount with L-Bracket and pipe clamp Exploded View Version 2.0...
- Page 8 Antenna Configuration 2 Wall mount with L-Bracket and knock-in screws Use the L-bracket as a template to drill holes www.ime.de Antenna Configuration 3 Surface mount with adhesive disc Use adhesive disc as template for drilling a cable hole PCL-A-OMNI-0704...
-
Page 9: Cable Routing
3. Antenna Mounting Precautions Place the antenna at the highest point • and ensure that there aren't any surrounding obstructions to the antenna. In order to avoid communication • www.ime.de interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 10 When handling the antenna cables, it is essential you follow these basic rules: Never pull on the cable connectors; • pull only on the cable. Tighten the connectors and ensure • that the cables don’t rattle loose. 5. Safety www.ime.de If you are installing an antenna for the first •...
- Page 11 5. Make sure that any loose-fitting jewellery or clothing is secured and tie back long hair as they can get caught in moving parts during installation. 6. If the antenna assembly starts to fall, get Version away from it and let it fall to avoid www.ime.de harming yourself.
