South Africa
Unit 4, N1 Industrial Park
Landmarks Ave
Samrand, 0157
South Africa
Tel: +27 12 657 0050
info@poynting.tech
OMNI-293
User Guide
Version 2.0
Europe
Kronstadler Straße 4,
81677 München
Germany
Tel: +49 89 2080 265 38
Mob.: +49 176 529 733 50
sales-europe@poynting.tech
Advertisement
Related Manuals for Poynting OMNI-293
Summary of Contents for Poynting OMNI-293
- Page 1 OMNI-293 User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157 Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 Index Packing Check List Introduction Antenna Mounting Precautions Cable Routing Safety Version 2.0...
- Page 3 Packing Check List Item Description Quantity A-OMNI-0293 Antenna only M4 stainless steel machine screw and washer Stainless steel L-Bracket Stainless steel Econo bracket M6x90mm stainless steel U-Bolts M6 Nyloc and standard stainless steel nuts M6 stainless steel flat washers Easy fit wall plug and screw PCL-A-OMNI-0293...
- Page 4 Appearance of Components Antenna Unit Stainless Steel L-Bracket Assembly M4 Machine Screws and M4 Flat Washers Easy Fit Wall Plug and Screw Version 2.0...
- Page 5 Tools which may be required: 6mm Masonry drill bit Impact drilling machine Screw driver-Cross slot/Philips Hammer PCL-A-OMNI-0293...

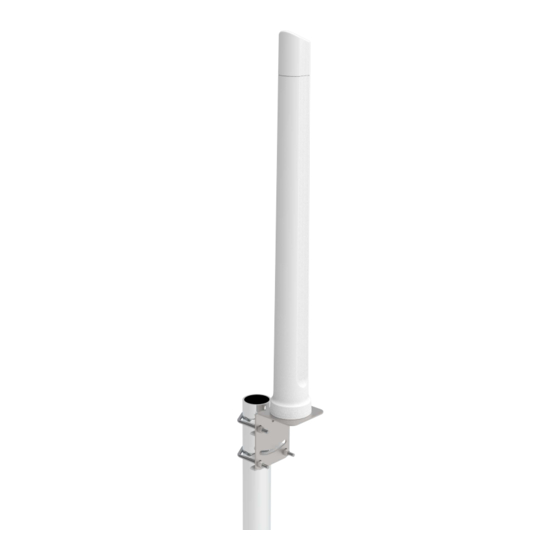

- Page 6 2. Introduction This User Guide provide information on the installation instructions of the Omni- directional antenna (A-OMNI-0293). Antenna Configuration 1 Pole Mounting • Lay the antenna out at the installation site carefully assemble antenna to the L-bracket using the provided bolts. •...
- Page 7 Antenna Configuration 2 Wall Mounting This antenna should be mounted on a • wall using the wall plugs as shown in the figure below Strain relieve the cable to the wall with • saddles or cable tie to the closest structure. Connect the end of cable to radio •...
-
Page 8: Cable Routing
3. Antenna Mounting Precautions Place the antenna at the highest point • and ensure that there aren't any surrounding obstructions to the antenna. In order to avoid communication • interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 9 When handling the antenna cables, it is essential you follow these basic rules: Never pull on the cable connectors; • pull only on the cable. Tighten the connectors and ensure • that the cables don’t rattle loose. 5. Safety If you are installing an antenna for the first •...
- Page 10 5. Make sure that any loose-fitting jewellery or clothing is secured and tie back long hair as they can get caught in moving parts during installation. 6. If the antenna assembly starts to fall, get away from it and let it fall to avoid harming yourself.
