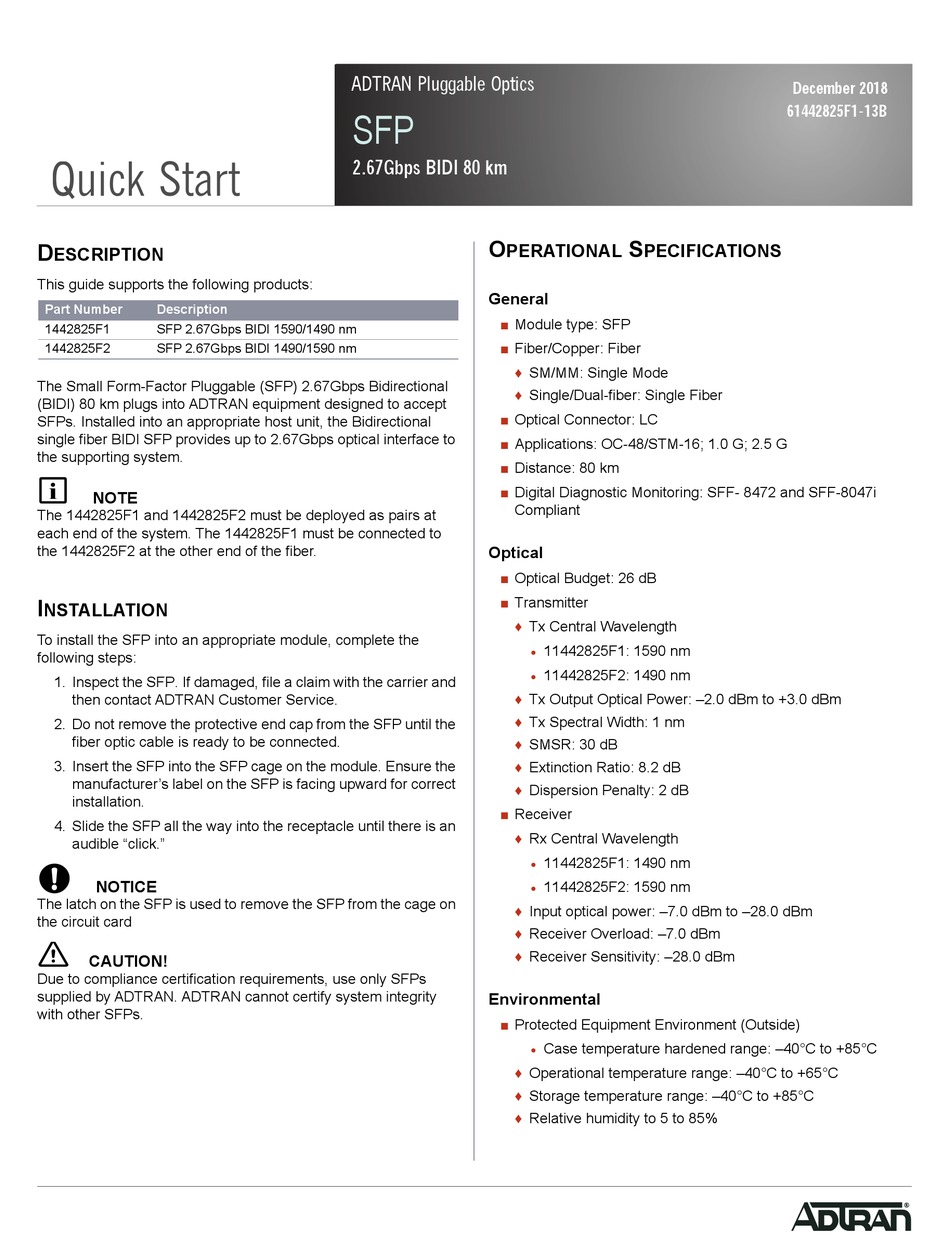

Quick Start
D
ESCRIPTION
This guide supports the following products:
Part Number
Description
1442825F1
SFP 2.67Gbps BIDI 1590/1490 nm
1442825F2
SFP 2.67Gbps BIDI 1490/1590 nm
The Small Form-Factor Pluggable (SFP) 2.67Gbps Bidirectional
(BIDI) 80 km plugs into ADTRAN equipment designed to accept
SFPs. Installed into an appropriate host unit, the Bidirectional
single fiber BIDI SFP provides up to 2.67Gbps optical interface to
the supporting system.
g
NOTE
The 1442825F1 and 1442825F2 must be deployed as pairs at
each end of the system. The 1442825F1 must be connected to
the 1442825F2 at the other end of the fiber.
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
1. Inspect the SFP. If damaged, file a claim with the carrier and
then contact ADTRAN Customer Service.
2. Do not remove the protective end cap from the SFP until the
fiber optic cable is ready to be connected.
3. Insert the SFP into the SFP cage on the module. Ensure the
manufacturer's label on the SFP is facing upward for correct
installation.
4. Slide the SFP all the way into the receptacle until there is an
audible "click."
w
NOTICE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card
f
CAUTION!
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN. ADTRAN cannot certify system integrity
with other SFPs.
ADTRAN Pluggable Optics
SFP
2.67Gbps BIDI 80 km
O
PERATIONAL
General
Module type: SFP
Fiber/Copper: Fiber
SM/MM: Single Mode
Single/Dual-fiber: Single Fiber
Optical Connector: LC
Applications: OC-48/STM-16; 1.0 G; 2.5 G
Distance: 80 km
Digital Diagnostic Monitoring: SFF- 8472 and SFF-8047i
Compliant
Optical
Optical Budget: 26 dB
Transmitter
Tx Central Wavelength
Tx Output Optical Power: –2.0 dBm to +3.0 dBm
Tx Spectral Width: 1 nm
SMSR: 30 dB
Extinction Ratio: 8.2 dB
Dispersion Penalty: 2 dB
Receiver
Rx Central Wavelength
Input optical power: –7.0 dBm to –28.0 dBm
Receiver Overload: –7.0 dBm
Receiver Sensitivity: –28.0 dBm
Environmental
Protected Equipment Environment (Outside)
Operational temperature range: –40°C to +65°C
Storage temperature range: –40°C to +85°C
Relative humidity to 5 to 85%
S
PECIFICATIONS
11442825F1: 1590 nm
11442825F2: 1490 nm
11442825F1: 1490 nm
11442825F2: 1590 nm
Case temperature hardened range: –40°C to +85°C
December 2018
61442825F1-13B
