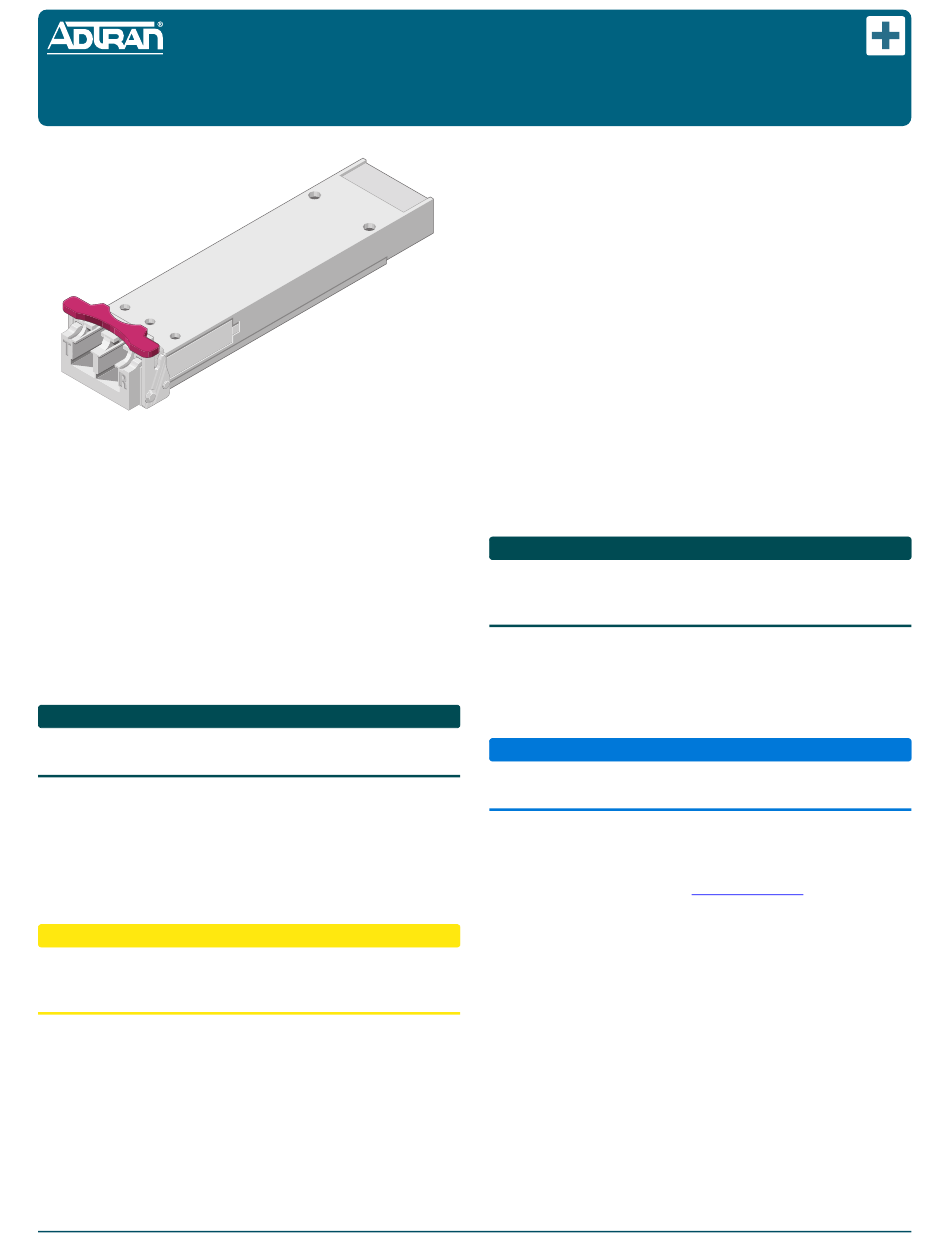

ADTRAN 1442980G1C Installation Instructions

CLEI: BVL3AGKD_ _
Product P/N: 1442980G1C
D
ESCRIPTION
The Small Form‐Factor Pluggable 10 Gigabit Ethernet XFP, 1550
nm, Commercial Temperature (XFP) optical transceiver is a fully
duplex serial electric, serial optic device with both transmit and
receive functions contained in a single module that provides a
high speed serial link at 10 Gb/s. Installed into an appropriate
host module, the XFP provides a 10 Gigabit interface to the
supporting system.
The transmit side of the XFP converts serial NRZ electrical date at
the10 Gb/s line rate to a standard compliant optical signal. The
receive side of the XFP converts the incoming DC balanced serial
NRZ optical data at the 10 Gb/s line rate into serial electrical data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the XFP:
♦
1550 nm optical signals for up to 80 km reach
♦
Low power consumption (<3.5 W max)
♦
Excellent EMI performance
♦
Bit error rate 10^‐12
!
CAUTION
Due to compliance certification requirements, only XFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other XFPs.
Operational Specifications
♦
Optical Specifications:
◊
Transmit Wavelength: 1550 nm
◊
Receive Wavelength: 1530 to 1565 nm
◊
Data rate: 9.95 Gb/s to 11.1 Gb/s
◊
Optical transmit level: 0 to +4.0 dBm
Small Form-Factor Pluggable
10 Gigabit Ethernet XFP, 1550 nm
Commercial Temperature
◊
Optical receive level: greater than –24dBm
◊
Optical distance: 80 km maximum
◊
Optical connectors: LC
♦
Extended Environmental Support:
◊
Operational temperature range: 0°C to +70°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 85%, noncondensing
I
NSTALLATION
Inspect the XFP. If damaged, file a claim with the carrier and then
contact ADTRAN Customer Service.
To install the XFP into an appropriate module, complete the
following steps:
1. Insert the XFP into the XFP cage on the circuit board of the
host module with the latch handle facing outward. Slide the
XFP all the way into the receptacle.
NOTE
The latch on the XFP is for removal only. When removing the XFP,
rotate the latch away from the XFP cage until a physical click
occurs. The XFP should slide easily out of the cage.
2. Using thumb and forefinger, exert adequate pressure to
ensure the XFP is completely seated in the XFP cage.
3. Do not remove the connector plug until the optical fiber
connection is made.
NOTICE
It is recommended that the connector plug remain on whenever
the transceiver optical fiber connector is not inserted.
4. Continue the installation and turn‐up of the host module
using the instructions in the Job Aid provided with that
module, or using the Installation and Maintenance Practice
(I&M), available online at www.adtran.com.
P
ROVISIONING
The XFP is not directly provisionable. To provision the XFP,
access the menu system of the host module. Refer to the "Provi‐
sioning" section of the Job Aid or Installation and Maintenance
Practice provided with the host module for provisioning details.
jobAid
Issue Date: 0909
Document P/N: 61442980G1C-22A
