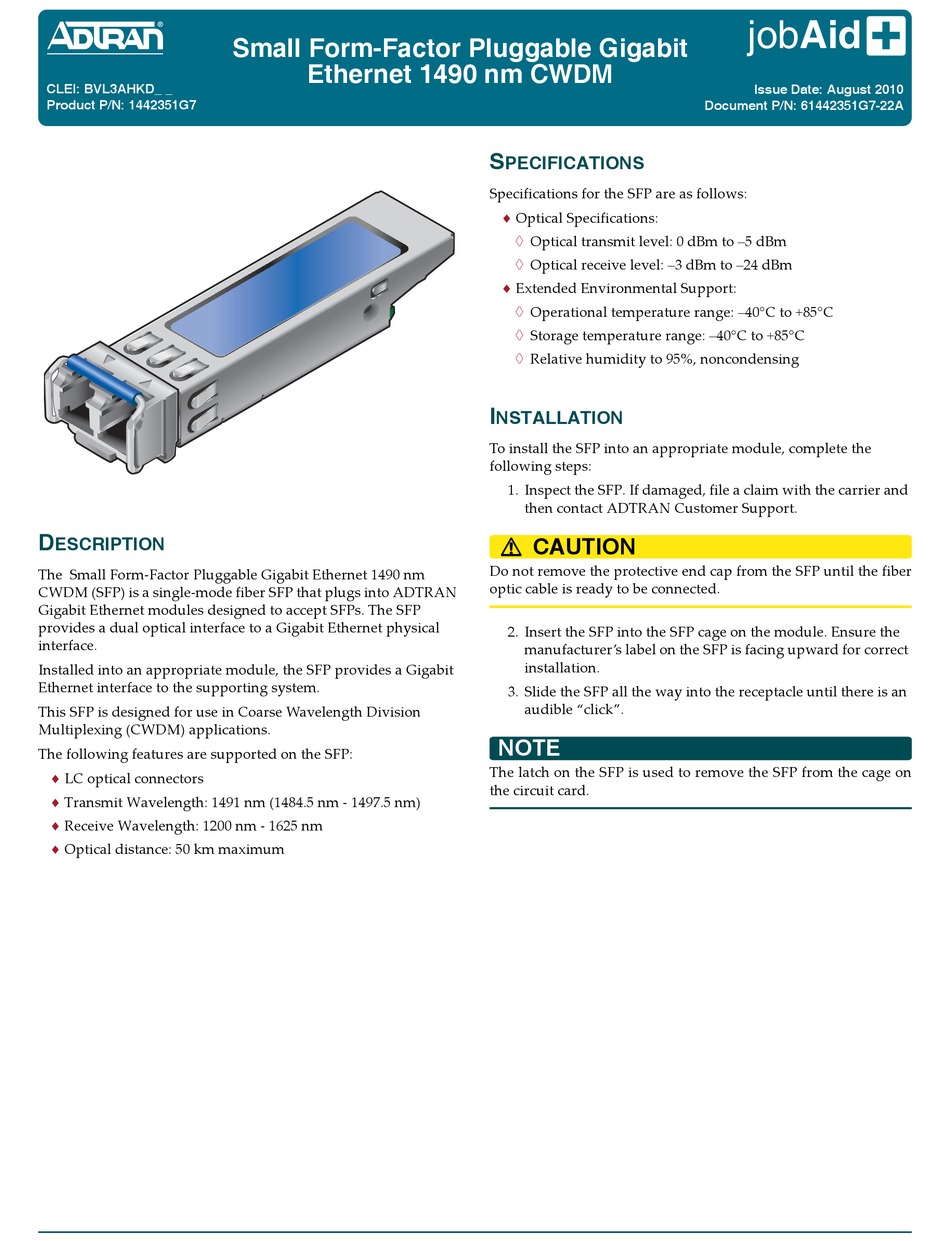

CLEI: BVL3AHKD_ _
Product P/N: 1442351G7
D
ESCRIPTION
The Small Form‐Factor Pluggable Gigabit Ethernet 1490 nm
CWDM (SFP) is a single‐mode fiber SFP that plugs into ADTRAN
Gigabit Ethernet modules designed to accept SFPs. The SFP
provides a dual optical interface to a Gigabit Ethernet physical
interface.
Installed into an appropriate module, the SFP provides a Gigabit
Ethernet interface to the supporting system.
This SFP is designed for use in Coarse Wavelength Division
Multiplexing (CWDM) applications.
The following features are supported on the SFP:
♦
LC optical connectors
♦
Transmit Wavelength: 1491 nm (1484.5 nm ‐ 1497.5 nm)
♦
Receive Wavelength: 1200 nm ‐ 1625 nm
♦
Optical distance: 50 km maximum
Small Form-Factor Pluggable Gigabit
Ethernet 1490 nm CWDM
S
PECIFICATIONS
Specifications for the SFP are as follows:
♦
Optical Specifications:
◊
Optical transmit level: 0 dBm to –5 dBm
◊
Optical receive level: –3 dBm to –24 dBm
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +85°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
1. Inspect the SFP. If damaged, file a claim with the carrier and
then contact ADTRAN Customer Support.
!
CAUTION
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
2. Insert the SFP into the SFP cage on the module. Ensure the
manufacturer's label on the SFP is facing upward for correct
installation.
3. Slide the SFP all the way into the receptacle until there is an
audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card.
jobAid
Issue Date: August 2010
Document P/N: 61442351G7-22A
