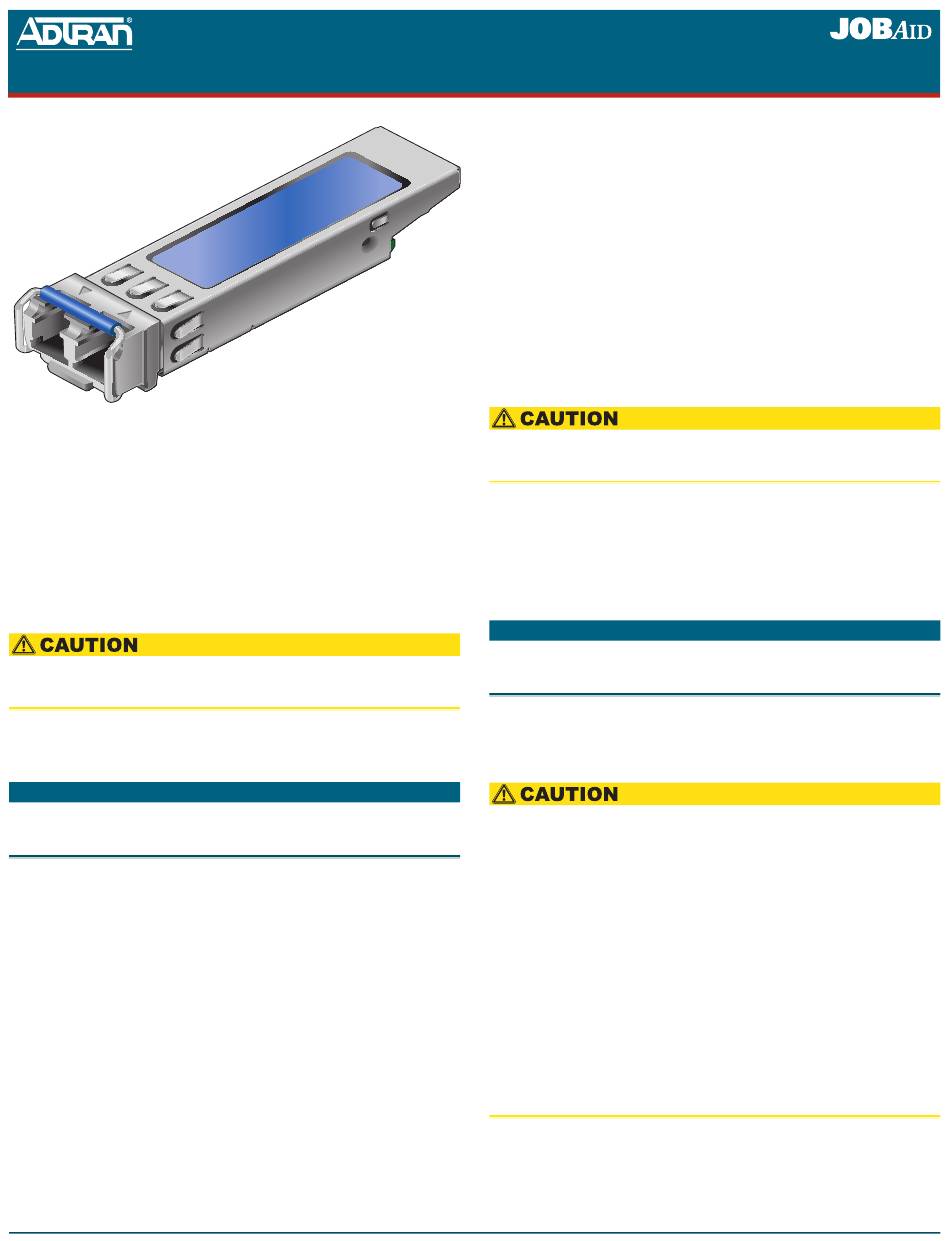

ADTRAN 1442890G2 Installation Instructions

CLEI: BVL3AF0D_ _
Product P/N: 1442890G2
Description
The 3.125 Gagabit Ethernet 1552.52 nm DWDM (SFP) is
a single-mode fiber SFP that plugs into ADTRAN Gigabit
Ethernet modules designed to accept SFPs. The SFP
provides a dual optical interface to a 3.125 Gigabit
Ethernet physical interface.
Installed into an appropriate module, the SFP provides a
3.125 Gigabit Ethernet tributary interface to the
supporting system.
This SFP should not be used in applications requiring
standard Gigabit (1000Base) Ethernet services.
This SFP is designed for use in Dense Wavelength
Division Multiplexing (DWDM) applications.
NOTE
N o n - D W D M l a s e r s c a n n o t b e u s e d i n D W D M
applications.
The following features are supported on the SFP:
♦ Data rate: 3.125 Gbps
♦
Optical connectors: LC
♦ Transmit wavelength: 1552.52 nm
♦ Receive wavelength: 1200 to 1620 nm
♦ Transmit center wavelength spacing: 100 GHz
♦
Optical distance: 80 km maximum
Operational Specifications
♦ Optical Specifications:
◊ Optical transmit level: 0 dBm to +4 dBm
◊
Optical receive level: –5 dBm to –29 dBm
Small Form-Factor Pluggable
3.125 Gigabit Ethernet 1552.52 nm DWDM
♦
Extended Environmental Support:
◊ Operational temperature range: –40°C to +85°C
◊ Storage temperature range: –40°C to +85°C
◊ Relative humidity to 95%, noncondensing
I
NSTALLATION
To install the SFP into an appropriate module, complete
the following steps:
1. Inspect the SFP. If damaged, file a claim with the
carrier and then contact ADTRAN Customer Sup-
port.
Do not remove the protective end cap from the SFP until
the fiber optic cable is ready to be connected.
2. Insert the SFP into the SFP cage on the module.
Ensure the manufacturer's label on the SFP is facing
upward for correct installation.
3. Slide the SFP all the way into the receptacle until
there is an audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the
cage on the circuit card.
COMPLIANCE
♦ Electrostatic Discharge (ESD) can damage electronic
modules. When handling modules, wear an antistatic
discharge wrist strap to prevent damage to electronic
components. Place modules in antistatic packing
material when transporting or storing. When working
on modules, always place them on an approved
antistatic mat that is electrically grounded.
♦ T h e m e e t s o r e x c e e d s a l l t h e a p p l i c a b l e
S F P
requirements of NEBS, Telcordia GR-63-CORE, and
GR-1089-CORE. The
in Central Office type facilities, EEEs, EECs, and
locations where the NEC applies (for example,
Customer Premises). The SFP is to be installed in
ADTRAN products in Restricted Access Locations only,
and installed by trained service personnel.
Issue Date: 0906
Document P/N: 61442890G2-22A
is intended for deployment
SFP
