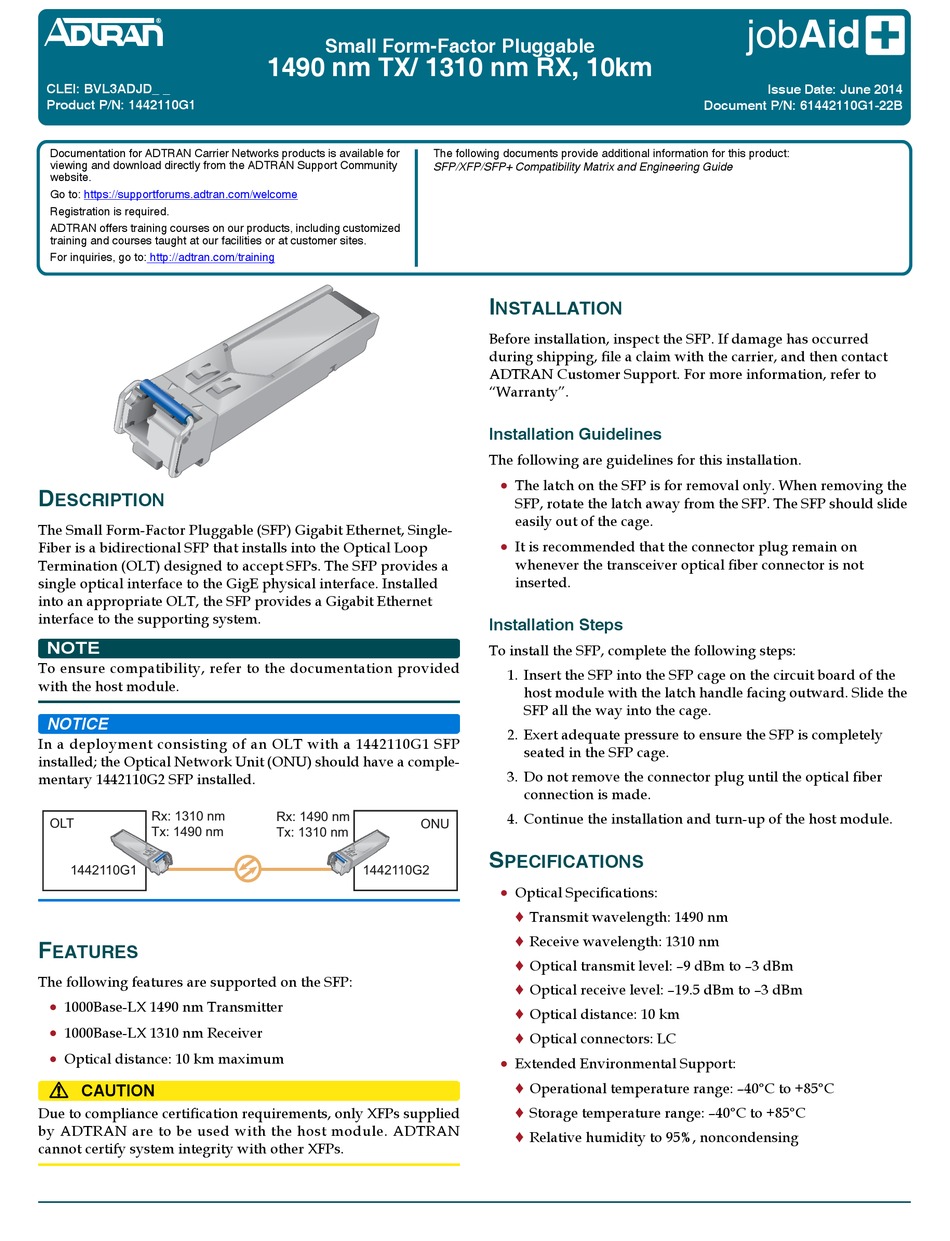

ADTRAN BVL3ADJD Manual

CLEI: BVL3ADJD_ _
Product P/N: 1442110G1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-Factor Pluggable (SFP) Gigabit Ethernet, Single-
Fiber is a bidirectional SFP that installs into the Optical Loop
Termination (OLT) designed to accept SFPs. The SFP provides a
single optical interface to the GigE physical interface. Installed
into an appropriate OLT, the SFP provides a Gigabit Ethernet
interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
NOTICE
In a deployment consisting of an OLT with a 1442110G1 SFP
installed; the Optical Network Unit (ONU) should have a comple-
mentary 1442110G2 SFP installed.
Rx: 1310 nm
OLT
Tx: 1490 nm
1442110G1
F
EATURES
The following features are supported on the SFP:

1000Base-LX 1490 nm Transmitter

1000Base-LX 1310 nm Receiver

Optical distance: 10 km maximum
!
CAUTION
Due to compliance certification requirements, only XFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other XFPs.
Small Form-Factor Pluggable
1490 nm TX/ 1310 nm RX, 10km
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
Rx: 1490 nm
ONU
Tx: 1310 nm
1442110G2
I
NSTALLATION
Before installation, inspect the SFP. If damage has occurred
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
Installation Guidelines
The following are guidelines for this installation.

The latch on the SFP is for removal only. When removing the
SFP, rotate the latch away from the SFP. The SFP should slide
easily out of the cage.

It is recommended that the connector plug remain on
whenever the transceiver optical fiber connector is not
inserted.
Installation Steps
To install the SFP, complete the following steps:
1. Insert the SFP into the SFP cage on the circuit board of the
host module with the latch handle facing outward. Slide the
SFP all the way into the cage.
2. Exert adequate pressure to ensure the SFP is completely
seated in the SFP cage.
3. Do not remove the connector plug until the optical fiber
connection is made.
4. Continue the installation and turn-up of the host module.
S
PECIFICATIONS

Optical Specifications:
o
Transmit wavelength: 1490 nm
o Receive wavelength: 1310 nm
o Optical transmit level: –9 dBm to –3 dBm
o
Optical receive level: –19.5 dBm to –3 dBm
o
Optical distance: 10 km
o Optical connectors: LC

Extended Environmental Support:
o Operational temperature range: –40°C to +85°C
o Storage temperature range: –40°C to +85°C
o
Relative humidity to 95%, noncondensing
jobAid
Issue Date: June 2014
Document P/N: 61442110G1-22B
