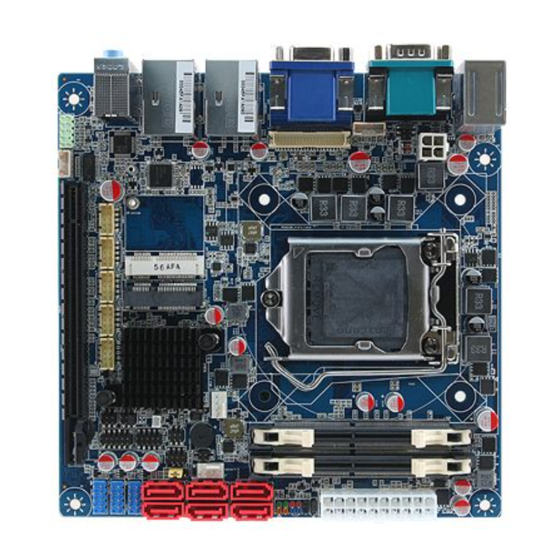

- Page 1 EMX-Q170KP Intel® Core™ Processors with Intel® Q170 Mini ITX Motherboard User’s Manual Ed – 05 February 2021 Part No. E2047M17K02R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 EMX-Q170KP User’s Manual Product Warranty Avalue warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Avalue, or which have been subject to misuse, abuse, accident or improper installation.
-
Page 5: Table Of Contents
User’s Manual Content Getting Started ......................8 Safety Precautions ....................8 Packing List ....................... 8 Document Amendment History ................. 9 Manual Objectives ....................10 System Specifications ..................... 11 Architecture Overview—Block Diagram ..............14 Hardware Configuration ................... 15 Product Overview ....................16 Jumper and Connector List .................. - Page 6 EMX-Q170KP User’s Manual 2.3.25 Gigabit LAN (RJ-45) connector (LAN1/2) ..................32 3.BIOS Setup ........................33 Introduction ......................34 Starting Setup ......................34 Using Setup ......................35 Getting Help ......................36 In Case of Problems ....................36 BIOS setup ......................37 3.6.1 Main Menu ............................
- Page 7 User’s Manual 3.6.3.1.3 PEG Port Configuration ......................60 3.6.3.1.4 Memory Configuration ......................61 3.6.3.2 PCH-IO Configuration ......................62 3.6.3.2.1 PCI Express Configuration ....................62 3.6.3.2.2 SATA And RST Configuration ....................66 3.6.3.2.3 HD Audio Configuration ......................67 3.6.4 Security ............................68 3.6.4.1 Secure Boot menu .......................
-
Page 8: Getting Started
EMX-Q170KP User’s Manual Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment June 2017 Avalue Initial Release August 2017 Avalue Update Setting Jumpers & Connectors February 2021 Avalue Update System Specifications EMX-Q170KP User’s Manual... -
Page 10: Manual Objectives
EMX-Q170KP User’s Manual 1.4 Manual Objectives This manual describes in details Avalue Technology EMX-Q170KP Single Board. We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of this board. -
Page 11: System Specifications
User’s Manual 1.5 System Specifications System Intel® LGA1151 Socket Supports 6/7th Generation Core™ i7/ i5/ i3 Processors (Max. TDP at 95W) BIOS AMI uEFI BIOS, 128Mbit SPI Flash ROM System Chipset Intel® Q170 Express Chipset I/O Chip Nuvoton® NCT6106D System Memory Two 260-pin DDR4 2400MHz SO-DIMM socket, supports up to 32GB Max Watchdog Timer H/W Reset, 5 ~ 255 seconds/5 ~ 255 minutes (*1) - Page 12 EMX-Q170KP User’s Manual Buzzer Onboard CMOS Battery 1 x 2 Pin Pitch 1.25mm Vertical type battery connector Power ON 1 x 2 x 5 pin, pitch 2.54mm connector for front panel Audio 1 x 2 x 5 pin, pitch 2.54mm connector for front Audio Storage: 1 x SATA III or 1 x full size Mini PCI-e support mSATA by BIOS selection 5 x SATA III...
- Page 13 User’s Manual 4 x USB3.0 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® I211AT PCI-e Gigabit Ethernet HDMI 1 x HDMI 2 x RJ-45 with Dual deck USB 3.0 connector 1 x VGA Rear Side 1 x DP External I/O 1 x HDMI Connector...
-
Page 14: Architecture Overview-Block Diagram
EMX-Q170KP User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-Q170KP. 14 EMX-Q170KP User’s Manual... -
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration EMX-Q170KP User’s Manual 15... -
Page 16: Product Overview
EMX-Q170KP User’s Manual 2.1 Product Overview 16 EMX-Q170KP User’s Manual... -
Page 17: Jumper And Connector List
User’s Manual 2.2 Jumper and Connector List You can configure your board to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. - Page 18 EMX-Q170KP User’s Manual LCD Inverter connector 5 x 1 wafer, pitch 2.00mm JBKL1 SPI connector 4 x 2 header, pitch 2.00mm JSPI1 Serial Port 1 connector D-sub 9 pin, male COM1 Serial Port 2/3/4/5/6 connector 5 x 2 wafer, pitch 2.00mm JCOM2/3/4/5/6 JCOM2_422_485 COM2 RS485/422 connector 3 x 2 header, pitch 2.00 mm...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default Note: Max Current 1A. 2.3.2 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default Note: Max Current 1A. EMX-Q170KP User’s Manual 19... -
Page 20: At/Atx Power Mode Select (Jatatx1)
EMX-Q170KP User’s Manual 2.3.3 AT/ATX Power Mode Select (JATATX1) ATX* * Default 2.3.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 20 EMX-Q170KP User’s Manual... -
Page 21: Lcd Inverter Connector (Jbkl1)
User’s Manual 2.3.5 LCD Inverter connector (JBKL1) Signal Max current +12V BKLEN VBRIGHT Note: Mapping connector PHR5. 2.3.6 Serial port 2/3/4/5/6 connector (JCOM2/3/4/5/6) JCOM2 JCOM3 JCOM4 JCOM5 JCOM6 Signal PIN PIN Signal EMX-Q170KP User’s Manual 21... -
Page 22: Com2 Rs485/422 Connector (Jcom2_422_485)
EMX-Q170KP User’s Manual 2.3.7 COM2 RS485/422 connector (JCOM2_422_485) RS-422 Signal PIN PIN Signal 422TX- 422RX- 422TX+ 422RX+ RS-485 Signal PIN PIN Signal Note: DATA- Max Current 1A. DATA+ 2.3.8 General purpose I/O connector (JDIO1) Signal PIN PIN Signal Note: SMB_CLK_9555 10 SMB_DATA_9555 Max Current 1A. -
Page 23: Sgpio Connector (Jsgpio1)
User’s Manual 2.3.9 SGPIO connector (JSGPIO1) Signal PIN PIN Signal SGIO_LOAD SGIO_DATOUT0 SGIO_CLK SGIO_DATOUT1 2.3.10 ATX Power connector (ATXPWR1) Signal Signal +3.3V +3.3V +3.3V -12V PSON# PG_ATX +V5SB_DP +12V EMX-Q170KP User’s Manual 23... -
Page 24: Usb 2.0 Connector 1 (Jusb1)
EMX-Q170KP User’s Manual 2.3.11 USB 2.0 connector 1 (JUSB1) Signal Signal USB_R_DP6 USB_R_DP5 USB_R_DN6 USB_R_DN5 2.3.12 USB 2.0 connector 2 (JUSB2) Signal Signal USB_R_DP12 USB_R_DP11 USB_R_DN12 USB_R_DN11 24 EMX-Q170KP User’s Manual... -
Page 25: Usb 2.0 Connector 3 (Jusb3)
User’s Manual 2.3.13 USB 2.0 connector 3 (JUSB3) Signal Signal USB_R_DP14 USB_R_DP13 USB_R_DN14 USB_R_DN13 2.3.14 Battery connector (JBAT1) Signal RTC_VBAT_1 EMX-Q170KP User’s Manual 25... -
Page 26: Lvds Connector (Jlvds1)
EMX-Q170KP User’s Manual 2.3.15 LVDS connector (JLVDS1) Signal PIN PIN Signal +3.3V +3.3V LVDS_DATA0_P 10 LVDS_DATA1_P LVDS_DATA0_N 12 11 LVDS_DATA1_N LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N Note: Mapping connector DF13-40DS-1.25C (1.0mm). LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30... -
Page 27: Front Audio Connector (Jaudio2)
User’s Manual 2.3.16 Front Audio connector (JAUDIO2) Signal PIN PIN Signal LINE2_JD LINE2_LIN MIC2_JD LINE2_RIN ACZ_DET#_R MIC2_RIN MIC2_LIN 2.3.16.1 Signal Description –Audio connector 2 (JAUDIO2) Signal Signal Description LINE2_JD AUDIO IN (LINE_RIN/LIN)sense pin MIC2_JD MIC IN (MIC_RIN/LIN) sense pin EMX-Q170KP User’s Manual 27... -
Page 28: Lpc Connector (Jlpc1)
EMX-Q170KP User’s Manual 2.3.17 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 BUF_PLT_RST# LPC_AD2 LPC_FRAME# LPC_AD3 LPC_CLK LPC_SERIRQ 2.3.18 SPI connector (JSPI1) Signal PIN PIN Signal +3.3V SSPI_CS0#_R SSPI_SCLK_R SSPI_SO_R SSPI_SI_R SSPI_HOLD#0 28 EMX-Q170KP User’s Manual... -
Page 29: Amplifier Connector (Jspk1)
User’s Manual 2.3.19 Amplifier connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- Note: Support 6W x 2 speakers. Mapping Connector PHR-4. 2.3.20 Front panel setting connector (JFP1) Signal PIN PIN Signal +HD_LED +PWR_LED -HD_LED -PWE_LED +Reset +PWR_BNT -Reset -PWR_BNT EMX-Q170KP User’s Manual 29... -
Page 30: Lan1& Lan 2 Active Led Connector (Jlanled1)
EMX-Q170KP User’s Manual 2.3.21 LAN1& LAN 2 active LED connector (JLANLED1) Signal PIN PIN Signal LAN2_ACT# LAN1_ACT# FRONT_LAN2_ACT FRONT_LAN1_ACT 2.3.22 CPU fan connector (CPUFAN1) Signal +12V CPUFANIN CPUFANOUT 30 EMX-Q170KP User’s Manual... -
Page 31: System Fan Connector (Sysfan1)
User’s Manual 2.3.23 System fan connector (SYSFAN1) Signal +12V SYSFANIN SYSFANOUT 2.3.24 ATX 12V power connector (ATX12V1) Signal Signal +12V +12V EMX-Q170KP User’s Manual 31... -
Page 32: Gigabit Lan (Rj-45) Connector (Lan1/2)
EMX-Q170KP User’s Manual 2.3.25 Gigabit LAN (RJ-45) connector (LAN1/2) ACT/LINK LED SPEED LED Status Description Status Description 10Mbps No Light connection LAN1 LAN2 100Mbps Orange Linked Green connection Note: 1Gbps Blinking Data activity Orange This port allows Gigabit connection to a Local Area connection Network (LAN) through a network hub. -
Page 33: Bios Setup
User’s Manual 3.BIOS Setup EMX-Q170KP User’s Manual 33... -
Page 34: Introduction
EMX-Q170KP User’s Manual 3.1 Introduction The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed. 3.2 Starting Setup The AMI BIOS™... -
Page 35: Using Setup
User’s Manual 3.3 Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 36: Getting Help
EMX-Q170KP User’s Manual 3.4 Getting Help Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again. -
Page 37: Bios Setup
User’s Manual 3.6 BIOS setup Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. -
Page 38: System Language
EMX-Q170KP User’s Manual 3.6.1.1 System Language This option allows choosing the system default language. 3.6.1.2 System Date Use the system date option to set the system date. Manually enter the day, month and year. 3.6.1.3 System Time Use the system time option to set the system time. Manually enter the hours, minutes and seconds. -
Page 39: Advanced Menu
User’s Manual 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration Item Options Description When enabled, a VMM can utilize the Disabled Intel (VMX) Virtualization Technology additional hardware capabilities provided by Enabled[Default], Vanderpool Technology. -
Page 40: Cpu - Power Management Control
EMX-Q170KP User’s Manual All[Default], Number of cores to enable in each processor Active Processor Cores package. 3.6.2.1.1 CPU – Power management Control Item Option Description Disabled, Allows more than two frequency ranges to be Intel® SpeedStep™ Enabled[Default] supported. Enable/Disable processor Turbo Mode (requires Disabled, EMTTM enabled too). -
Page 41: Pch-Fw Configuration
User’s Manual 3.6.2.2 PCH-FW Configuration Item Options Description Disabled, When Disabled ME will be put into ME Temporarily ME State Enabled[Default] Disabled Mode. When disabled AMT BIOS Features are no longer Disabled, supported and user is no longer able to access MEBx AMT BIOS Features Enabled[Default] Setup. -
Page 42: Oem Flags Settings
EMX-Q170KP User’s Manual Item Option Description Disabled[Default], Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 3.6.2.2.2 OEM Flags Settings Item Option Description Disabled[Default], OEMFlag Bit 15: Unconfigure ME with resetting Unconfigure ME Enabled MEBx password to default. 3.6.2.3 Trusted Computing 42 EMX-Q170KP User’s Manual... -
Page 43: Acpi Settings
User’s Manual Item Options Description Enables or Disables BIOS support for security Disable, Security Device Support device. O.S. will not show Security Device. TCG EFI Enable[Default] protocol and INT1Ainterface will not be available. 3.6.2.4 ACPI Settings Item Options Description Enables or Disables System ability to Disabled Hibernate (OS/S4 Sleep State). -
Page 44: S5 Rtc Wake Settings
EMX-Q170KP User’s Manual Enable/Disable system waked up by Ring Disabled Wake Up by Ring signal from S3(Sleep). S4(Hibernate) and Enabled[Default], S5(Soft Off) States. Enable/Disable USB Power delivery in S3 USB Standby Power Disabled (Sleep), S4 (Hibernate) and S5 (Soft Off) Delivery Enabled[Default], States. - Page 45 User’s Manual Item Options Description Enable or disable System wake on alarm event. Select Disabled, Fixed Time, system will wake on the hr::min::sec Wake system from S5 Fixed Time[Default] specified. Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). Disabled[Default], Wake up day of week selection: Disabled: select day Wake up day of week...
-
Page 46: Super Io Configuration
EMX-Q170KP User’s Manual 3.6.2.6 Super IO Configuration You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.6.1~ 3.6.2.6.6 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). -
Page 47: Serial Port 1 Configuration
User’s Manual 3.6.2.6.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled RS232[Default] UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. -
Page 48: Serial Port 3 Configuration
EMX-Q170KP User’s Manual 3.6.2.6.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6.4 Serial Port 4 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 48 EMX-Q170KP User’s Manual... -
Page 49: Serial Port 5 Configuration
User’s Manual 3.6.2.6.5 Serial Port 5 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6.6 Serial Port 6 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled EMX-Q170KP User’s Manual 49... -
Page 50: Nct6106D H/W Monitor
EMX-Q170KP User’s Manual 3.6.2.7 NCT6106D H/W Monitor 3.6.2.7.1 Smart Fan Configuration Item Option Description Manual[Default], Smart Fan Mode Selection: Manual Mode (No CPU Fan Mode SmartFan IV Smart Fan), SmartFan IV™ Mode. CPU Fan Manual Duty 0-255 CPU Fan manual output duty: 0 to 255. Manual Smart Fan Mode Selection: Manual Mode (No SYSFAN1 Mode... -
Page 51: Serial Port Console Redirection
User’s Manual 3.6.2.8 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled 3.6.2.8.1 COM1 EMX-Q170KP User’s Manual 51... - Page 52 EMX-Q170KP User’s Manual Item Option Description Emulation: ANSI: Extended ASCII char set. VT100 VT100: ASCII char set. VT100+: Extends VT100+[Default] Terminal Type VT100 to support color, function keys, etc. VT-UTF8 VT-UTF8: Uses UTF8 encoding to map ANSI Unicode chars onto 1 or more bytes. 9600 Select serial port transmission speed.
-
Page 53: Intel Txt Configuration
User’s Manual Default value is Always Enabled which means Legacy console Redirection is enabled. 3.6.2.9 Intel TXT Configuration 3.6.2.10 Network Stack Configuration Item Options Description Enabled[Default] Network Stack Enable/Disable UEFI Network Stack. Disabled EMX-Q170KP User’s Manual 53... - Page 54 EMX-Q170KP User’s Manual Enable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot Enabled Ipv4 PXE Support Disabled[Default] option will not be created. Enable Ipv4 HTTP Boot Support. If disabled IPV4 HTTP Enabled Ipv4 HTTP Support Disabled[Default] boot option will not be created. Enable Ipv6 PXE Boot Support.
-
Page 55: Csm Configuration
User’s Manual 3.6.2.11 CSM Configuration Item Options Description Enabled[Default] CSM Support Enable/Disable CSM Support. Disabled UPON REQUEST – GA20 can be disabled Upon Request[Default] GateA20 Active using BIOS services. ALWAYS – do not Always EMX-Q170KP User’s Manual 55... -
Page 56: Usb Configuration
EMX-Q170KP User’s Manual allow disabling GA20; this option is useful when any RT code is executed above 1MB. Force BIOS[Default] Option ROM Messages Set display mode for Option ROM. Keep Current BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE – execute the trap right Immediate[Default] INT19 Trap Response away;... -
Page 57: Chipset
User’s Manual 30 sec 40 sec Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ Auto[Default] Device power-up delay Manual uses default value: for a Root port it is 100ms, for a Hub port the delay is taken form Hub descriptor. Mass storage device emulation type. -
Page 58: System Agent (Sa) Configuration
EMX-Q170KP User’s Manual 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled 3.6.3.1.1 Graphics Configuration 58 EMX-Q170KP User’s Manual... -
Page 59: Dmi/Opi Configuration
User’s Manual Item Option Description Auto[Default] Select which of IGFX/PEG/PCI Graphics device Primary Display IGFX should be Primary Display Or select SG for Switchable Gfx. Disabled Active LVDS Active on-board eDP to LVDS Converter. Enabled[Default] 1024x768 24/1[Default] 800x600 18/1 1024x768 18/1 1366x768 18/1 1024x600 18/1 1280x800 18/1... -
Page 60: Peg Port Configuration
EMX-Q170KP User’s Manual 3.6.3.1.3 PEG Port Configuration Item Option Description Disabled Enable Root Port Enabled Enable or Disable the Root Port. Auto[Default] Auto[Default] Gen1 Max Link Speed Configure PEG 0:1:0 Max Speed. Gen2 Gen3 Enabled: PCIe ASPM will be programmed Disabled[Default] Program PCIe ASPM after OpROM after OpROM. -
Page 61: Memory Configuration
User’s Manual 3.6.3.1.3.1 PEG Port Feature Configuration Item Option Description Enabled, Detect Non-Compliance PCI Express Device Detect Non-Compliance Device Disabled[Default] in PEG. 3.6.3.1.4 Memory Configuration EMX-Q170KP User’s Manual 61... -
Page 62: Pch-Io Configuration
EMX-Q170KP User’s Manual 3.6.3.2 PCH-IO Configuration Item Option Description Disabled Enable or disable OnBoard PCH LAN PHY LAN PHY Controller Enabled[Default] Controller. 3.6.3.2.1 PCI Express Configuration 62 EMX-Q170KP User’s Manual... - Page 63 User’s Manual 3.6.3.2.1.1 Intel I211 LAN Chip (PCI-E Port 8) Item Option Description Enabled[Default], Intel I211 LAN Chip (PCI-E Port 8) Control the PCI Express Root Port. Disabled 3.6.3.2.1.2 Mini-PCIE Slot 2 (PCI-E Port 9) EMX-Q170KP User’s Manual 63...
- Page 64 EMX-Q170KP User’s Manual Item Option Description Enabled[Default], Mini-PCIE Slot 2 (PCI-E Port 9) Control the PCI Express Root Port. Disabled Auto Set the ASPM Level: Force L0s – Force all L0sL1 links to L0s State AUTO – BIOS auto ASPM configure DISABLE –...
- Page 65 User’s Manual Disabled[Default] Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen1 Configure PCIe Speed. Gen2 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port.
-
Page 66: Sata And Rst Configuration
EMX-Q170KP User’s Manual 3.6.3.2.2 SATA And RST Configuration Item Option Description Enabled[Default], SATA Controller(s) Enable/Disable SATA Device. Disabled AHCI[Default], SATA Mode Selection Determines how SATA controller(s) operate. RAID Default[Default], Indicates the maximum speed the SATA SATA Controller Speed Gen1 controller can support. Gen2 66 EMX-Q170KP User’s Manual... -
Page 67: Hd Audio Configuration
User’s Manual Gen3 Enabled[Default], SATA Port Enable or Disable SATA Port. Disabled Hard Disk Drive[Default] Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. 3.6.3.2.3 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. -
Page 68: Security
EMX-Q170KP User’s Manual 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 68 EMX-Q170KP User’s Manual... -
Page 69: Secure Boot Menu
User’s Manual 3.6.4.1 Secure Boot menu Item Option Description Secure Boot activated when Platform Key(PK) is Disabled[Default] Attempt Secure Boot enrolled, System mode is User/Deployed, and CSM Enabled function is disabled. Secure Boot mode selector. ‘Custom’ Mode enables Standard Secure Boot Mode users to change Image Execution policy and manage Custom[Default] Secure Boot Keys. -
Page 70: Boot
EMX-Q170KP User’s Manual Item Option Description Enabled, Allow to provision factory default Secure Provision Factory Defaults Disabled[Default] Boot keys when System is in Setup Mode. 3.6.5 Boot Item Option Description Number of seconds to wait for setup activation Setup Prompt Timeout 1~ 65535 key. -
Page 71: Save And Exit
User’s Manual 3.6.6 Save and exit 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. -
Page 72: Drivers Installation
EMX-Q170KP User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 72 EMX-Q170KP User’s Manual... -
Page 73: Install Chipset Driver
User’s Manual 4.1 Install Chipset Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. -
Page 74: Install Vga Driver
EMX-Q170KP User’s Manual 4.2 Install VGA Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. -
Page 75: Install Sol Driver
User’s Manual 4.3 Install SOL Driver Insert the Supporting CD-ROM to CD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. -
Page 76: Install Audio Driver (For Realtek Alc892 Hd Audio)
EMX-Q170KP User’s Manual 4.4 Install Audio Driver (For Realtek ALC892 HD Audio) Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation... -
Page 77: Install Lan Driver
User’s Manual 4.5 Install LAN Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. - Page 78 EMX-Q170KP User’s Manual Step 6. Click Install. Step 7. Click Finish to complete setup. 78 EMX-Q170KP User’s Manual...
-
Page 79: Install Rst Driver
User’s Manual 4.6 Install RST Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. - Page 80 EMX-Q170KP User’s Manual Step 6. Click Finish to complete setup. 80 EMX-Q170KP User’s Manual...
-
Page 81: Mechanical Drawing
User’s Manual 5. Mechanical Drawing EMX-Q170KP User’s Manual 81... - Page 82 EMX-Q170KP User’s Manual Unit: mm 82 EMX-Q170KP User’s Manual...
- Page 83 User’s Manual Unit: mm EMX-Q170KP User’s Manual 83...
