Note: Due to low power consumption of DATAMAN-40PRO in inactive state, it doesn't
require power switch. When the power LED indicator glows with a low intensity the
DATAMAN-40PRO is in inactive mode.

Connecting DATAMAN-40PRO to PC

For DATAMAN-40PRO order of connecting USB cable and power supply to programmer is
irrelevant.
Problems related to the DATAMAN-40PRO
and their removing
If you have any problems with DATAMAN-40PRO
Common notes please.

Manipulation with the programmed device

After selection of desired device for your work, you can insert into the open ZIF socket (the
lever is up) and close socket (the lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket on the programmer's cover. The
programmed device is necessary to insert into the socket also to remove from the socket
when LED BUSY light off.
Warning: DATAMAN-40PRO programmer hasn't protection devices, which protect the
content of programmed device against critical situations, for example power failures and PC
failure (interrupted cable...). Moreover, a device is usually destroyed in the programming
mode due to forced interruption of the control program run (Reset or switching the computer
off) due to removing the connecting cable, or unplugging the programmed device from the
ZIF socket. Incorrectly placed device in the ZIF socket can cause its damage or destruction.
In-system serial programming by
DATAMAN-40PRO
For general definition, recommendation and direction about ISP see section Common notes
/ ISP please.

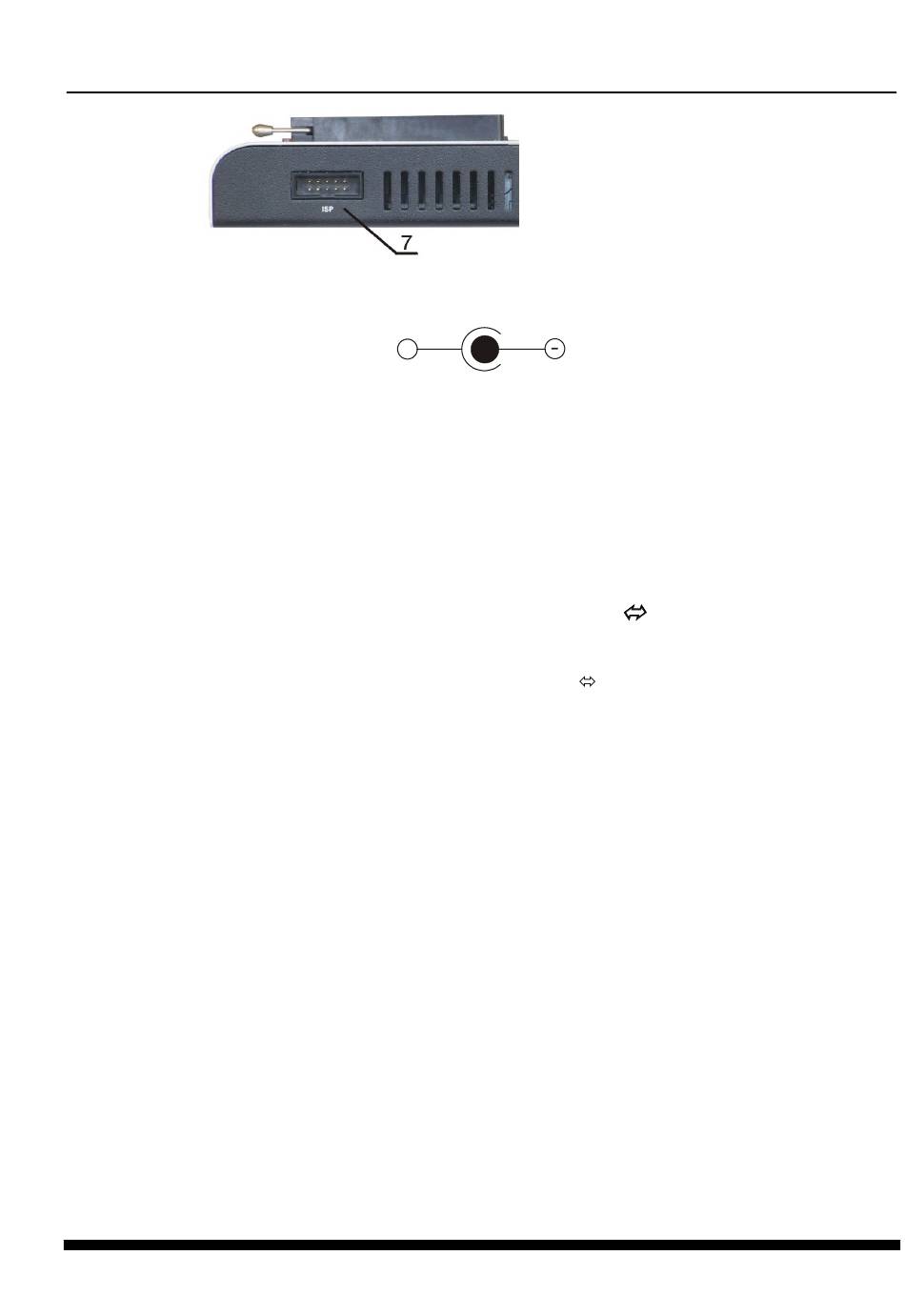

Power supply connector
+
47
DATAMAN-40PRO
PC interconnection,
PC interconnection, see section
