Crestron UC-B70-A-Z Quick Start Manual

UC-B70-A-Z and UC-B70-A-Z-I
Crestron Flex Medium to Large Room Conference Solution with All-In-One Videobar 70 for Zoom Rooms®
Software

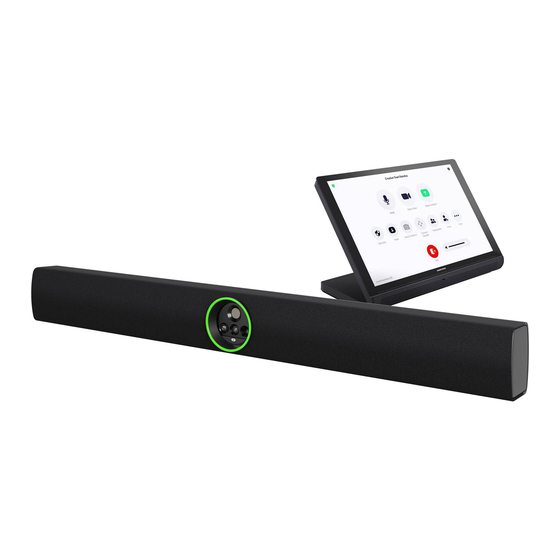

The UC-B70-A-Z and UC-B70-A-Z-I Crestron Flex tabletop conferencing
systems provide a medium to large room video conference solution for
use with Zoom Rooms® software. The UC-B70-A-Z and UC-B70-A-Z-I
feature a 10.1 in. tabletop touch screen, Crestron Videobar 70 with
intelligent high-definition video and audio, a PoE injector, and cables.
The UC-B70-A-Z and UC-B70-A-Z-I also support up to two video
displays (not included).
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen
latest device firmware.
Minimum Requirements:
A video display (not included) connected to the Crestron Videobar 70.
l
A second or third display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box
Tabletop Touch Screen Device
1 10 in. Tabletop Touch Screen (6513439)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
Crestron Videobar 70
1 Crestron Videobar 70 (6512358 or 6512360)
2 Screw, M5 X 16 mm (2062699)
1 Power Adapter, DC, (2062700)
product page to download the
1 Power Cable, AC (2062701)
2 Inner Screw, Hex, M5 X 16 mm (2062702)
3 Wall Screw, Self Tap, 1.25 in. (32 mm) (2062704)
3 Anchor, White (2062705)
1 Wall Anchor Key (2062716)
1 Cable Shroud, Phoenix (2062717)
1 Wall Bracket, Black (2062718)
Additional Items
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, HDMI® 2.1, 6 ft (1.8 m) (6512150)
1 Cable, HDMI 2.1, 9 ft (2.7 m) (6512151)
1 PoE injector (6502429)
Quick Start
1
