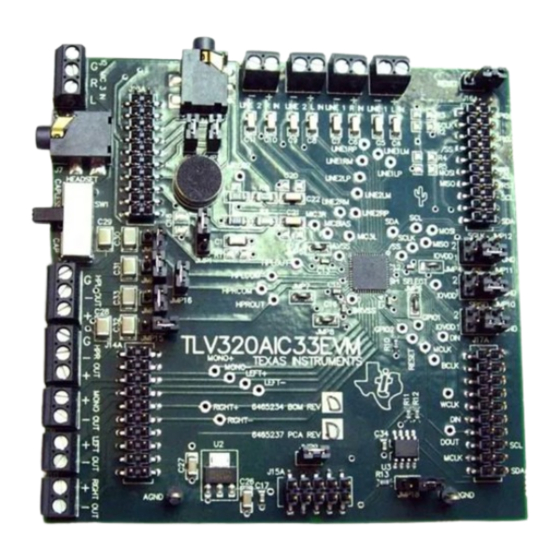

TLV320AIC33EVM and TLV320AIC33EVM-PDK User's
This user's guide describes the characteristics, operation, and use of the
TLV320AIC33EVM, both by itself and as part of the TLV320AIC33EVM-PDK. This
evaluation module (EVM) is a complete stereo audio codec with several inputs and
outputs, extensive audio routing, mixing and effects capabilities. A complete circuit
description, schematic diagram and bill of materials are also included.
The following related documents are available through the Texas Instruments web site
at www.ti.com.
1
EVM Overview
2
3
4
5
6
7
TLV320AIC33EVM Schematic
Appendix B
USB-MODEVM Schematic
1
2
3
2
4
I
C Address Selection Window
5
Audio Generator Screen
6
Audio Analyzer Screen
7
8
9
2
2
I
S, I
C are trademarks of Koninklijke Philips Electronics N.V.
Windows is a trademark of Microsoft Corporation.
SPI is a trademark of Motorola, Inc.
LabView is a trademark of National Instruments.
All trademarks are the property of their respective owners.
SBAU114 - November 2005
EVM-Compatible Device Data Sheets
Device
TLV320AIC33
TAS1020B
REG1117-3.3
TPS767D318
SN74LVC125A
SN74LVC1G125
SN74LVC1G07
...............................................................................................................
..............................................................................................................
..............................................................................................................
..............................................................................................................
...............................................................................................................
.................................................................................................................
.......................................................................................................
..................................................................................
......................................................................................
..................................................................................................
..............................................................................................
..........................................................................................
..................................................................................................
...................................................................................................
............................................................................................................
.......................................................................................................
.................................................................................................................
Literature Number
SLAS480
SLES025
SBVS001
SLVS209
SCAS290
SCES223
SCES296
Contents
List of Figures
.................................................................................
TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide
User's Guide
SBAU114 - November 2005
Guide
41
45
46
10
11
11
13
14
15
17
18
2
3
4
5
6
7
8
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TLV320AIC33EVM
Summary of Contents for Texas Instruments TLV320AIC33EVM
-
Page 1: Table Of Contents
Guide This user's guide describes the characteristics, operation, and use of the TLV320AIC33EVM, both by itself and as part of the TLV320AIC33EVM-PDK. This evaluation module (EVM) is a complete stereo audio codec with several inputs and outputs, extensive audio routing, mixing and effects capabilities. A complete circuit description, schematic diagram and bill of materials are also included. - Page 2 Windows™ operating system (Win2000 or XP). Introduction The TLV320AIC33EVM is in Texas Instruments' modular EVM form factor, which allows direct evaluation of the device performance and operating characteristics, and eases software development and system prototyping. This EVM is compatible with the 5-6K Interface Evaluation Module (SLAU104) and the HPA-MCUINTERFACE (SLAU106) from Texas Instruments and additional third-party boards which support TI's Modular EVM format.
-
Page 3: Analog Interface
Analog Interface Analog Interface For maximum flexibility, the TLV320AIC33EVM is designed for easy interfacing to multiple analog sources. Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin dual row header/socket combination at J13 and J14. These headers/sockets provide access to the analog input and output pins of the device. -
Page 4: Digital Interface
(-) HPRCOM Digital Interface The TLV320AIC33EVM is designed to easily interface with multiple control platforms. Samtec part numbers SSW-110-22-F-D-VS-K and TSM-110-01-T-DV-P provide a convenient 10-pin dual row header/socket combination at J16 and J17. These headers/sockets provide access to the digital control and serial data pins of the device. -
Page 5: Power Supplies
C is actually routed to both connectors; however, the device is connected only to J16. Power Supplies J15 provides connection to the common power bus for the TLV320AIC33EVM. Power is supplied on the pins listed in Table Table 4. Power Supply Pin Out... -
Page 6: Evm Operation
The digital control signals can be applied directly to J16 and J17 (top or bottom side). The modular TLV320AIC33EVM can also be connected directly to a DSP interface board, such as the 5-6KINTERFACE or HPA-MCUINTERFACE, or to the USB-MODEVM Interface board if purchased as part of the TLV320AIC33EVM-PDK. -
Page 7: Kit Operation
When installed, allows the USB-MODEVM to hardware reset the device under user control Kit Operation The following section provides information on using the TLV320AIC33EVM-PDK, including set up, program installation, and program usage. TLV320AIC33EVM-PDK Block Diagram A block diagram of the TLV320AIC33EVM-PDK is shown in Figure 1. - Page 8 I S, AC97 Audio Interface Figure 1. TLV320AIC33EVM-PDK Block Diagram The USB-MODEVM Interface board is intended to be used in USB mode, where control of the installed EVM is accomplished using the onboard USB controller device. Provision is made, however, for driving all the data buses (I C, SPI™, I...
-
Page 9: Usb-Modevm Sw2 Settings
ON: MCLK Signal is provided from USB-MODEVM J10 OFF: MCLK Signal comes from either selection of SW2-5 For use with the TLV320AIC33EVM, SW-2 positions 1 through 7 should be set to ON, while SW-2.8 should be set to OFF. Installation Ensure that the TLV320AIC33EVM is installed on the USB-MODEVM Interface board, aligning J13, J14, J15, J16, J17 with the corresponding connectors on the USB-MODEVM. -
Page 10: Default Software Screen
TAS1020B, as well as the TAS1020B digital audio interface.. In the factory configuration, the board is ready to use with the TLV320AIC33EVM. To view all the functions and configuration options available on the USB-MODEVM board, see the USB-MODEVM Interface Board... -
Page 11: Interface Selection Window
Kit Operation Program Description After the TLV320AIC33EVM-PDK software installation (described in Section 6.2) is complete, evaluation and development with the TLV320AIC33 can begin. Interface Selection When the program first starts up, a small window (Figure 3) appears that gives two choices for the control interface: I C or SPI. - Page 12 The output waveforms for both left and right channels are displayed in the graph at the bottom of this screen. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005...
- Page 13 Kit Operation Figure 5. Audio Generator Screen SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide...
- Page 14 The analyzer screen features a graph of the input signals, both left and right channels, in a time domain display at the top of the screen, and in the frequency domain (FFT) at the bottom of the screen. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005...
-
Page 15: Audio Input Tab
Similarly, the LINE2L and LINE2R inputs can be routed to the ADC. However, note that these inputs do not have the choice to route to either ADC channel; they can only be configured to connect to the corresponding ADC input. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 16: Audio Interface Tab
Word Length control, and the bit clock rate can also be selected using the Bit Clock rate control. The Data Word Offset, used in TDM mode (see the product datasheet) can also be selected on this tab. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... - Page 17 (OSR) of 128, 64, or 32. For a detailed discussion of how to connect a digital microphone on this platform, refer to the application note Using the Digital Microphone Function on TLV320AIC33 with AIC33EVM/USB-MODEVM System (literature number SLAA275), available for download at www.ti.com. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide...
-
Page 18: Clocks Tab
USB-MODEVM board. This value is then divided by the value of Q, which can be set from 2 to 17; the resulting CLKDIV_OUT frequency is shown in the indicator next to the Q control. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... - Page 19 10) selects options for the general-purpose inputs and outputs (GPIO) of the TLV320AIC33. Many pins on the TLV320AIC33 are denoted as multifunction pins, meaning they may be used for many different purposes. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide...
-
Page 20: Gpio Tab
GPIO, and selected as either inputs or outputs using the SDA Function and SCL Function controls. The Output Level and Input Level controls function for these pins in the same way that they do for GPIO1 or GPIO2. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 21: Agc Tab
Noise gate functions, such as Hysteresis, Clip stepping, Threshold, and Signal and Noise Detect debouncing are set using the corresponding controls in the Noise Gate groupbox for each channel. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 22: Filters Tab
Biquad 1 and Biquad 2. Note that the plot shows only the responses of the effect filters, not the combined response of those filter along with the de-emphasis and ADC high-pass filters. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 23: Adc Highpass Filter Settings
As shown in Figure 15, in Bass mode a shelf filter applies a gain to frequencies below the corner frequency; in Treble mode the gain is applied to frequencies above the corner frequency. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 24: Shelf Filters
EQ, or parametric, filters can be designed on this tab (see Figure 16). Enter a gain, bandwidth, and a center frequency (Fc). Either bandpass (positive gain) or band-reject (negative gain) filters can be created Figure 16. EQ Filters TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 25: Analog Simulation Filters
Parameter entry boxes appropriate to the filter type will be shown (ripple, for example, with Chebyshev filters, etc.). Enter the desired design parameters and the response will be shown. (See Figure 17.) Figure 17. Analog Simulation Filters SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 26: Preset Filters
Many applications are designed to provide preset filters common for certain types of program material. This tab (see Figure 18) allows selection of one of four preset filter responses - Rock, Jazz, Classical, or Pop. Figure 18. Preset Filters TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 27: Emphasis Filters
While on this tab, the de-emphasis response will be shown on the Effect Filter Response graph; however, note that this response is not included in graphs of other effect responses when on the other filter design tabs. Figure 19. De-emphasis Filters SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 28: User Filters
Figure 20) for both biquads for both left and right channels. The filter response will not be shown on the Effect Filter Response graph for user filters. Figure 20. User Filters TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 29: Effect Settings
The User Filters tab may be used to load the coefficients. Figure Figure 21. 3D Effect Settings To enable the 3D effect, check the 3D Effect On box. The Depth knob controls the value of the 3D Attenuation Coefficient. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 30: Dac/Line Outputs Tab
Data going to the DACs is selected using the drop-down boxes under the Left and Right Datapath. Each DAC channel can be selected to be off, use left channel data, use right channel data, or use a mono mix of the left and right data. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... - Page 31 The Configuration may be set as either Fully-Differential or Pseudo-Differential. The output coupling can be chosen as either capless or AC-coupled. This setting should correspond to the setting of the hardware switch (SW1) on the TLV320AIC33EVM. SBAU114 – November 2005...
-
Page 32: Output Stage Configuration Tab
Debounce times for detection are set using the Jack Detect Debounce and Button Press Debounce controls, which offer debounce times in varying numbers of milliseconds. See the TLV320AIC33 datasheet for a discussion of headset detection. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 33: High Power Outputs Tab
When powered down, the outputs can be tri-stated or driven weakly to a the output common mode voltage; this option is selected using the button below the power button. The COM outputs (HPLCOM and HPRCOM) can be used as independent output channels or can be used SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 34: Command Line Interface Tab
25). This design allows the software to be used as a quick test tool or to help provide troubleshooting information in the rare event that the user encounters problem with this EVM. Figure 25. Command Line Interface Tab TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... -
Page 35: File Menu
TLV320AIC33EVM software. Figure 26. File Menu Under the Help menu is an About... menu item which displays information about the TLV320AIC33EVM software. The actual USB protocol used as well as instructions on writing scripts are detailed in the following subsections. -
Page 36: Usb Control Endpoint Hidsetreport Request
Write two bytes (AA, 55) to device starting at register 5 of an I C device with address A0: [0] 0x11 [1] 0xA0 [2] 0x02 [3] 0x05 [4] 0xAA [5] 0x55 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005... - Page 37 I C interfaces, the reg address as sent for SPI interfaces, the read back data from SPI line for transmission of the corresponding byte [4..60] echo of data packet sent SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide...
- Page 38 Examples above used writes. Reading is similar: Read two bytes from device starting at register 5 of an I C device with address A0: [0] 0x01 [1] 0xA0 [2] 0x02 [3] 0x05 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005...
-
Page 39: Gpio Pin Assignments
Therefore, the program is not very forgiving about mistakes made in the source script file, but the formatting of the file is simple. Consequently, mistakes should be rare. SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... - Page 40 0x03. Note that the slave device value does not change. It is not necessary to set the R/W bit for I C devices in the script; the read or write commands will do that for you. TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005...
-
Page 41: Evm Bill Of Materials
OK in the dialog box that will be displayed due to the break. EVM Bill of Materials Table 10 Table 11 contain a complete bill of materials for the modular TLV320AIC33EVM and the USB-MODEVM Interface Board (included only in the TLV320AIC33EVM-PDK). SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... -
Page 42: Tlv320Aic33Evm Bill Of Materials
EVM Bill of Materials Table 10. TLV320AIC33EVM Bill of Materials REFERENCE DESIGNATOR DESCRIPTION MANUFACTURER MFGPART NUMBER R8, R9 0Ω 1/4W 5% Chip Resistor Panasonic ERJ-8GEY0R00V R6, R7 2.2KΩ 1/4W 5% Chip Resistor Panasonic ERJ-8GEYJ222V R11, R12, R13 2.7KΩ 1/10W 5% Chip... -
Page 43: Usb-Modevm Bill Of Materials
U5, U6, U7 Single IC Buffer Driver with Texas Instruments SN74LVC1G07DBVR Open Drain o/p Single Tri-State Buffer Texas Instruments SN74LVC1G125DBVR 64K 2-Wire Serial EEPROM Microchip 24LC64I/SN USB-MODEVM PCB Texas Instruments 6463995 SBAU114 – November 2005 TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide... - Page 44 0.1" spacing JMP7 3-position dual row jumper, Samtec TSW-103-07-L-D 0.1" spacing SMT, half-pitch 2-position C&K Division, ITT TDA02H0SK1 switch SMT, half-pitch 8-position C&K Division, ITT TDA08H0SK1 switch Jumper plug Samtec SNT-100-BK-T TLV320AIC33EVM and TLV320AIC33EVM-PDK User's Guide SBAU114 – November 2005...
- Page 45 Appendix A Appendix A TLV320AIC33EVM Schematic The schematic diagram is provided as a reference. SBAU114 – November 2005 TLV320AIC33EVM Schematic...
- Page 46 MOSI SEMICONDUCTOR GROUP MOSI TP38 TP39 GPIO1 GPIO2 6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA TP26 TITLE ENGINEER RICK DOWNS MISO TLV320AIC33EVM MISO DRAWN BY BOB BENJAMIN DOCUMENT CONTROL NO. 6465236 SIZE DATE 28-Oct-2004 SHEET FILE C:\Work\AIC33\Edge\TLV320AIC33EVM.ddb - Documents\AIC33...
- Page 47 JMP18 DATA ACQUISITION PRODUCTS HIGH-PERFORMANCE ANALOG DIVISION SEMICONDUCTOR GROUP 6730 SOUTH TUCSON BLVD., TUCSON, AZ 85706 USA TITLE ENGINEER RICK DOWNS TLV320AIC33EVM INTERFACE DRAWN BY BOB BENJAMIN DOCUMENT CONTROL NO. 6465236 SIZE DATE 28-Oct-2004 SHEET FILE C:\Work\AIC33\Edge\TLV320AIC33EVM.ddb - Documents\Daughtercard Interface...
- Page 48 www.ti.com Appendix B Appendix B USB-MODEVM Schematic The schematic diagram is provided as a reference. USB-MODEVM Schematic SBAU114 – November 2005...
- Page 49 REVISION HISTORY ENGINEERING CHANGE NUMBER APPROVED IOVDD IOVDD IOVDD +3.3VD +3.3VD EXT MCLK ZXMN6A07F 2.7K 2.7K SN74LVC1G125DBV USB MCK MCLK USB I2S I2SDIN USB I2S ZXMN6A07F USB MCK BCLK EXTERNAL I2C USB SPI SN74LVC125APW LRCLK USB RST +3.3VD +3.3VD EXT MCK IOVDD I2SDOUT SW DIP-8...
- Page 50 REVISION HISTORY ENGINEERING CHANGE NUMBER APPROVED JMP5 A0(-) A0(+) CNTL GPIO0 A1(-) A1(+) CLKX DGND A2(-) A2(+) CLKR GPIO1 A3(-) A3(+) GPIO2 AGND DGND AGND GPIO3 AGND GPIO4 VCOM AGND REF- TOUT DGND +5VA J13A (TOP) = SAM_TSM-105-01-L-DV-P AGND REF+ GPIO5 J13B (BOTTOM) = SAM_SSW-105-22-F-D-VS-K DAUGHTER-ANALOG...
- Page 51 EVM TERMS AND CONDITIONS Texas Instruments (TI) provides the enclosed Evaluation Module and related material (EVM) to you, the user, (you or user) SUBJECT TO the terms and conditions set forth below. By accepting and using the EVM, you are indicating that you have read, understand and agree to be bound by these terms and conditions.
- Page 52 TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions:...
- Page 53 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TLV320AIC33EVM-PDK TLV320AIC33EVM...
