EVM User's Guide: TLV3802 TLV3802EVM
TLV3802 Evaluation Module
Description
The TLV3802EVM is an evaluation board designed
to evaluate the high-speed dual channel TLV3802
comparator. The TLV3802EVM has layout options
intended to simply evaluate timing performance
with different measurement tools. The output of
the TLV3802 is designed for low-voltage differential
signals (LVDS), which provide high-speed signals to
interconnect devices such as FPGAs with minimal
power dissipation.
SNOU198 – OCTOBER 2023
Submit Document Feedback
Features
•
Low propagation delay
•
Low overdrive dispersion
•
High toggle frequency
•
Narrow pulse width detection capability
•
LVDS output
•
Low input offset voltage
•
WF-DFN Package 12-pin DSS

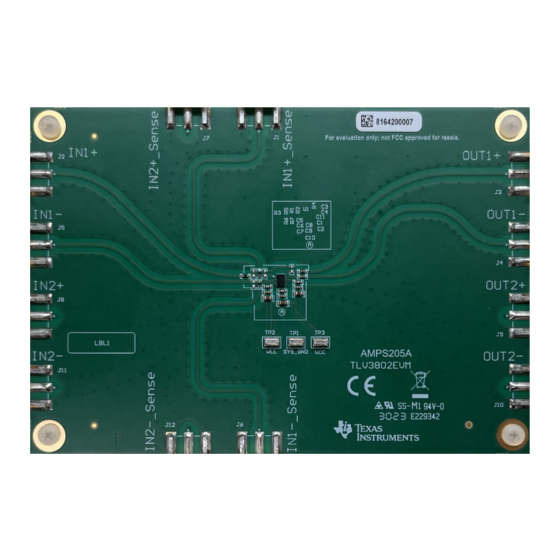

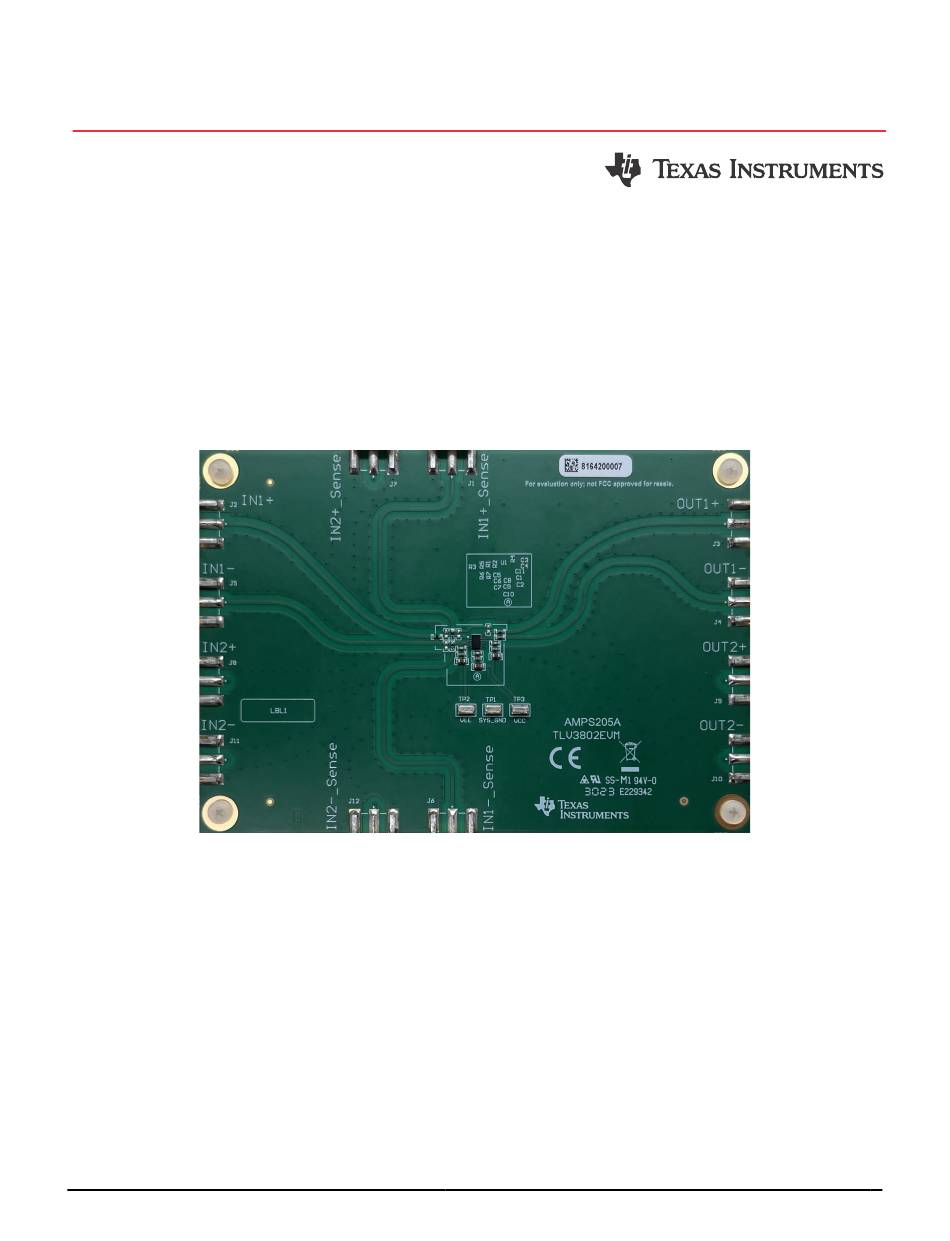

TLV3802EVM Board (Top View)
Copyright © 2023 Texas Instruments Incorporated
Description
TLV3802 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TLV3802
Summary of Contents for Texas Instruments TLV3802
- Page 1 TLV3802 Evaluation Module Description Features The TLV3802EVM is an evaluation board designed • Low propagation delay to evaluate the high-speed dual channel TLV3802 • Low overdrive dispersion comparator. The TLV3802EVM has layout options • High toggle frequency intended to simply evaluate timing performance •...
-
Page 2: Kit Contents
This user's guide describes the functionality and set up procedure of the evaluation board TLV3802EVM, which is designed to evaluate the performance of the high-speed dual channel TLV3802 comparator. Information such as the contents of the kit, specifications of the device, and recommended equipment for the set up is also included. -
Page 3: Pin Mapping
SMA J4: OUT1- OUT1- (Pin 11) SMA J3: OUT1+ OUT1+(Pin 12) 1.4 Device Information The following device is used in this evaluation module: • TLV3802DSSR SNOU198 – OCTOBER 2023 TLV3802 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 4: Board Setup
VCC - VEE has a range of 2.7 V to 5.25 V and VCC - GND has a range of 2.4 V to 5.25 V. Connect GND, VEE, and VCC using TP1, TP2, and TP3 respectively. Figure 2-1. TLV3802EVM Power Supplies Connection TLV3802 Evaluation Module SNOU198 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 5 IN1+ SENSE ¡ IN1+ – IN1- TLV3802 CH.1 ¢ IN1- SENSE IN2+_SENSE TLV3802 CH.2 IN2+ IN2- £ IN2- SENSE Figure 2-2. Input Side Block Diagram SNOU198 – OCTOBER 2023 TLV3802 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 6 CH.1 0.1uF TLV3802 OUT2+ CH.2 IN2+ 0.1uF IN2- Input Resistor OUT2- Optional Feedback Resistors = R13 + R10 Feedback Figure 2-4. Hysteresis Block Diagram TLV3802 Evaluation Module SNOU198 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 7: Quick-Start Procedure
CH. 1 BANANA-GRABBER Note: All SENSE input +2.5V -2.5V cables should be matched with output cables. DC Power Supply Figure 2-5. TLV3802EVM Quick Start Setup SNOU198 – OCTOBER 2023 TLV3802 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 8 Low propagation delay is defined as when the signal generator input (IN+) reaches 0 V to when OUT- reaches 0 V. The propagation delay was measured at approximately 220 ps with the setup described. Figure 2-6. Quick-Start Example TLV3802 Evaluation Module SNOU198 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 9 Hardware Design Files 3 Hardware Design Files 3.1 Schematic Figure 3-1. TLV3802EVM Schematic SNOU198 – OCTOBER 2023 TLV3802 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 10: Pcb Layouts
Hardware Design Files www.ti.com 3.2 PCB Layouts Figure 3-3. GND-1 Figure 3-2. Top Layer Figure 3-4. GND-2 Figure 3-5. Bottom Layer TLV3802 Evaluation Module SNOU198 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 11 R2, R4, R10, R13 0402 CRCW04020000Z0EDHP Vishay-Dale 0, 0402 R5, R6, R9, R11 RES, 50, 0.1%, 0.5 W, 0402 0402 FC0402E50R0BTBST1 Vishay Thin Film SNOU198 – OCTOBER 2023 TLV3802 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 12 Additional Information www.ti.com 4 Additional Information Trademarks All trademarks are the property of their respective owners. TLV3802 Evaluation Module SNOU198 – OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
