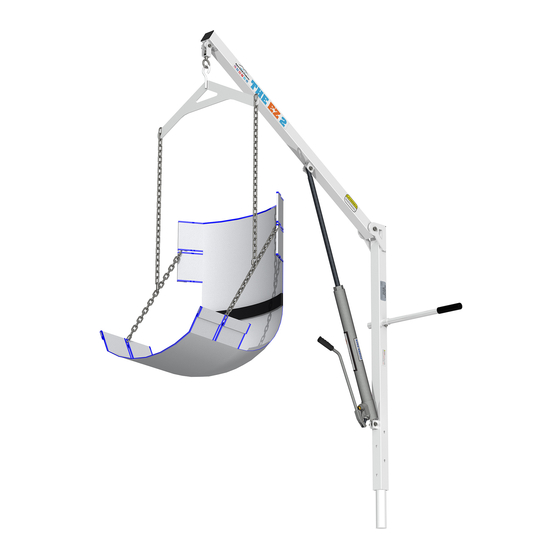

Aqua Creek Products EZ2 Manual
  1. Manuals
  2. Brands
  3. Aqua Creek Products Manuals
  4. Lifting Systems
  5. Power EZ 2
  6. Manual

Aqua Creek Products EZ2 Manual

Hide thumbs Also See for EZ2:

Advertisement

Quick Links

Download this manual
MANDATORY
LEAVE THIS MANUAL WITH OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is
installed and operated according to these
instructions.
• FOR SAFETY REASONS
• NEVER
swim alone
• NEVER
use the lift with a dry pool
• NEVER
apply direct water pressure to the electronics
• NEVER
permit children to play on or around the lift
• DO NOT
allow children to use the lift without adult
supervision
READ CAREFULLY
Check entire box and all packing
materials for parts. Before beginning
assembly, read the instructions and
identify parts using the figures and
parts listed in this document.
It is critical that all parts be carefully
inspected prior to installation. If any
damage occurred in transit, Aqua Creek
Products, LLC must be notified within
three days of receipt of unit.
Proper installation cannot be
overstressed, as an improper
installation voids Aqua Creek's warranty
and may affect the safety of the user.
USE THIS MANUAL FOR PART #'s:
F-EZPL2
EZ2
CATALOG NO. F-EZPL2
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: (888) 687-3552
Local/Intnl: (406) 549-0769
www.aquacreek.com
8/15/2022 12:41:43 PM PAGE - 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ2 and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua Creek Products EZ2

Summary of Contents for Aqua Creek Products EZ2

  • Page 1 If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. Aqua Creek Products, LLC 9889 Garrymore Lane Proper installation cannot be Missoula, MT 59808 overstressed, as an improper Toll Free: (888) 687-3552 installation voids Aqua Creek’s warranty...

  • Page 2: Important Safety Instructions

    Aqua Creek Products IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. This appliance is not intended for use by persons (including children) with reduced...
  • Page 3 TABLE OF CONTENTS PRODUCT COMPONENTS ASSEMBLY - STEP 01 THRU 03 ASSEMBLY - STEP 04 THRU 07 ASSEMBLY - STEP 08 THRU 09 INSPECTION REPORT VISUAL INSPECTION PHYSICAL INSPECTION EZ2 - CATALOG NO. F-EZPL2 8/15/2022 12:41:43 PM PAGE - 3...

  • Page 4: Product Components

    PART NO. QTY. REV. DESCRIPTION INV03081 ASSEMBLY - MAST - (EZ2) INV01520 ASSEMBLY - BOOM ARM - (EZ2) INV01395 ACTUATOR KIT - HYDRAULIC RAM (EZ2) INV01397 ASSEMBLY - SWIVEL - (EZ SERIES) INV01394 WELDMENT - HANGER BAR - (EZ SERIES)

  • Page 5: Product Assembly

    Aqua Creek Products PRODUCT ASSEMBLY NN - 3/8"-16 NYLOCK NUT LIFT THE EZ2 MAST ASSEMBLY FROM PART NO. INV00739 THE SHIPPING CONTAINER. INSERT THE 1.90" [48mm] POST OF THE MAST WF - 3/8" FLAT WASHER ASSEMBLY INTO THE DECK ANCHOR. EASE PART NO.
  • Page 6 CATALOG NO. F-EZPL2 NN - 5/16"-18 NYLOCK NUT PART NO. INV00742 WF - 5/16" FLAT WASHER PART NO. INV01176 REMOVE THE SWIVEL FROM THE SHIPPING BOX. CONNECT THE SWIVEL TO THE BOOM ARM. TIGHTEN NYLOCK NUTS. NOTE: BE CAREFUL NOT TO OVERTIGHTEN BOLTS. OVER- TIGHTENING CAN CAUSE DAMAGE AND COMPROMISE THE SAFETY OF YOUR LIFT.
  • Page 7 CATALOG NO. F-EZPL2 REMOVE THE TURN BAR FROM THE SHIPPING BOX. CONNECT THE TURN BAR TO THE MAST. NOTE: BE CAREFUL NOT TO OVERTIGHTEN BOLTS. OVER- TIGHTENING CAN CAUSE DAMAGE AND COMPROMISE THE SAFETY OF YOUR LIFT. WF - 1/4" FLAT WASHER PART NO.
  • Page 8 Aqua Creek Products Annual Pool Lift Safety INSPECTION REPORT LIFT / INSPECTION INFORMATION Test Date: For Additional Support Assistance Call: Pool Lift Model: Serial Number: Toll Free: 888-687-3552 International: 1+406-549-0769 Inspected By: Find additional trouble shooting info. and videos at: https://aquacreekproducts.com/help-center/troubleshooting/...

  • Page 9: Inspection Item

    Aqua Creek Products Annual Pool Lift Safety INSPECTION REPORT 1. OVERALL VISUAL INSPECTION Corrosion is common with anything in a swimming pool environment; even stainless steel. Proper and regular maintenance and cleaning will prevent most instances of corrosion. Replace any components that have corrosion caused pitting, cracking, thinning of the base metal, or other instances of corrosion that can't be eliminated and/or minimized through thorough cleaning.
  • Page 10 Aqua Creek Products Annual Pool Lift Safety INSPECTION REPORT 1. PHYSICAL POOL LIFT TEST A physical test of the lift function is required when doing an annual inspection. NOTE: The lift should always be run through a completed cycle without a load prior to each use. The annual test should be ran both empty and with a typical load weight to test the lift's functions.
  • Page 11 Local/Intnl: (406) 549-0769 www.aquacreek.com Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall...
  • Page 12 Aqua Creek Products PROPER CARE OF LIFTS For service and/or replacement parts, contact Toll free: (888) 687-3552 DAILY WEEKLY MONTHLY BEFORE PROCEDURE EACH USE Check battery level indicator on control box. Run the lift through a complete test cycle (fully extend actuator) to verify it is functioning properly.
