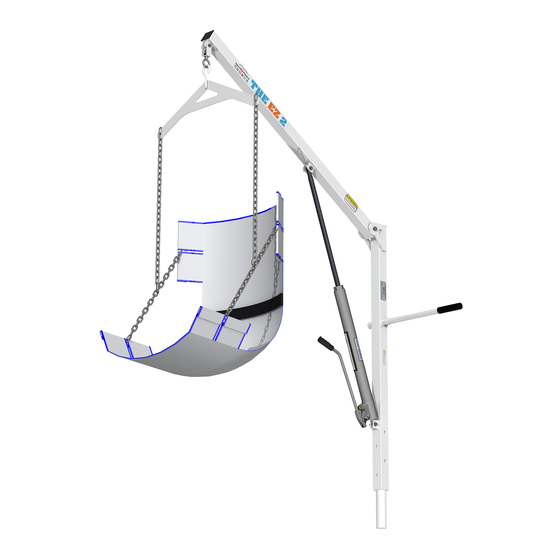

EZ POOL LIFT™
Installation, Assembly and Operation Instructions
400 LBS [181 kg] MAXIMUM LIFTING CAPACITY
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
- WARNING-
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY – ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.
Aqua Creek Products
9889 GARRYMORE LANE
Missoula, MT 59808
Toll Free: 1-888-687-3552 ● Fax: 1-406-549-2602 ● Web:
www.aquacreek.com
EZINST-11/22/10
Page 1 of 12
© Aqua Creek Products LLC 2003-2010
Advertisement
Related Manuals for Aqua Creek Products EZ POOL LIFT F-EZPL2
Summary of Contents for Aqua Creek Products EZ POOL LIFT F-EZPL2
- Page 1 5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE. Aqua Creek Products 9889 GARRYMORE LANE Missoula, MT 59808 Toll Free: 1-888-687-3552 ● Fax: 1-406-549-2602 ● Web: www.aquacreek.com EZINST-11/22/10 Page 1 of 12 © Aqua Creek Products LLC 2003-2010...
- Page 2 Retro-fit anchor Installation Instructions New construction anchor installation instructions EZ Pool Lift Assembly Instructions EZ Pool Lift Operating Instructions Safety, cleaning and maintenance EZ Pool Lift Detailed Parts List Warranty EZINST-11/22/10 Page 2 of 12 © Aqua Creek Products LLC 2003-2010...
-
Page 3: Read Carefully
If any damage occurred in transit or you are missing parts, notify Aqua Creek Products Immediately! Failure to notify Aqua Creek of damaged or missing parts within 3 days of receipt of shipment may affect your ability to receive replacement parts. - Page 4 The anchor location must also be at least 6” [15 cm] from any control joint or edge of concrete slab. Measure the location out using your tape measure and marking pen. (Reference the drawing on the next page for details). EZINST-11/22/10 Page 4 of 12 © Aqua Creek Products LLC 2003-2010...
- Page 5 Let cement or epoxy cure for 24 hours (or minimum manufacturer’s recommendations) before using lift. EZINST-11/22/10 Page 5 of 12 © Aqua Creek Products LLC 2003-2010...
-
Page 6: Required Tools
Verify all your measurements for accuracy and pour the deck as you normally would, making sure not to get any concrete inside the anchor system. Allow the concrete to cure before installing and using the lift. EZINST-11/22/10 Page 6 of 12 © Aqua Creek Products LLC 2003-2010... - Page 7 STEP 4: INTERNAL SLING SUPPORT BAR Locate the four (4) internal sling support bars and insert them into the sewn pockets in the mesh sling. STEP 4 EZINST-11/22/10 Page 7 of 12 © Aqua Creek Products LLC 2003-2010...
- Page 8 EZINST-11/22/10 Page 8 of 12 © Aqua Creek Products LLC 2003-2010...
- Page 9 • This procedure is repeated to remove a user from the water. • When the lift is not in use, remove the sling, hanger bar and mast from the anchor socket and replace the protective anchor cap. EZINST-11/22/10 Page 9 of 12 © Aqua Creek Products LLC 2003-2010...
-
Page 10: Safety And Maintenance Instructions
If there are any worn parts, replace them BEFORE using the EZ Pool Lift™. You can call our customer service at 1-888-687-3552 to order any parts. ●Aqua Creek Products, LLC lifts shall be grounded per local codes. ●At least ONCE A WEEK, the EZ Pool Lift™ must be cleaned with fresh water. - Page 11 3/8" FLAT WASHER, S.S. NYLOCK3/816SS 3/8"-16 NYLOCK NUT, S.S. BOLT1/2X21/4SSSH 1/2" X 2-1/4" SHOULDER BOLT, S.S. CAP1.9X145RDUHMW 1.9" X .145" WALL CAP, UHMW P-0808EZMTB EZ TURN BAR, STAINLESS STEEL EZINST-11/22/10 Page 11 of 12 © Aqua Creek Products LLC 2003-2010...
- Page 12 Aqua Creek Products, LLC Limited Warranty: EZ POOL LIFT Aqua Creek Products lifts have a Limited Lifetime Warranty on the frames, not including the powder coat finish. Aqua Creek Products, LLC (a.k.a. Aqua Creek) also warrants to the original end user that all non-frame components...
