FLORABEST FRWS 9 A1 Assembly Instructions Manual
Downpipe rainwater diversion set
Hide thumbs
Also See for FRWS 9 A1:
- Assembly instructions manual (22 pages) ,
- Assembly instructions manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for FLORABEST FRWS 9 A1
Summary of Contents for FLORABEST FRWS 9 A1

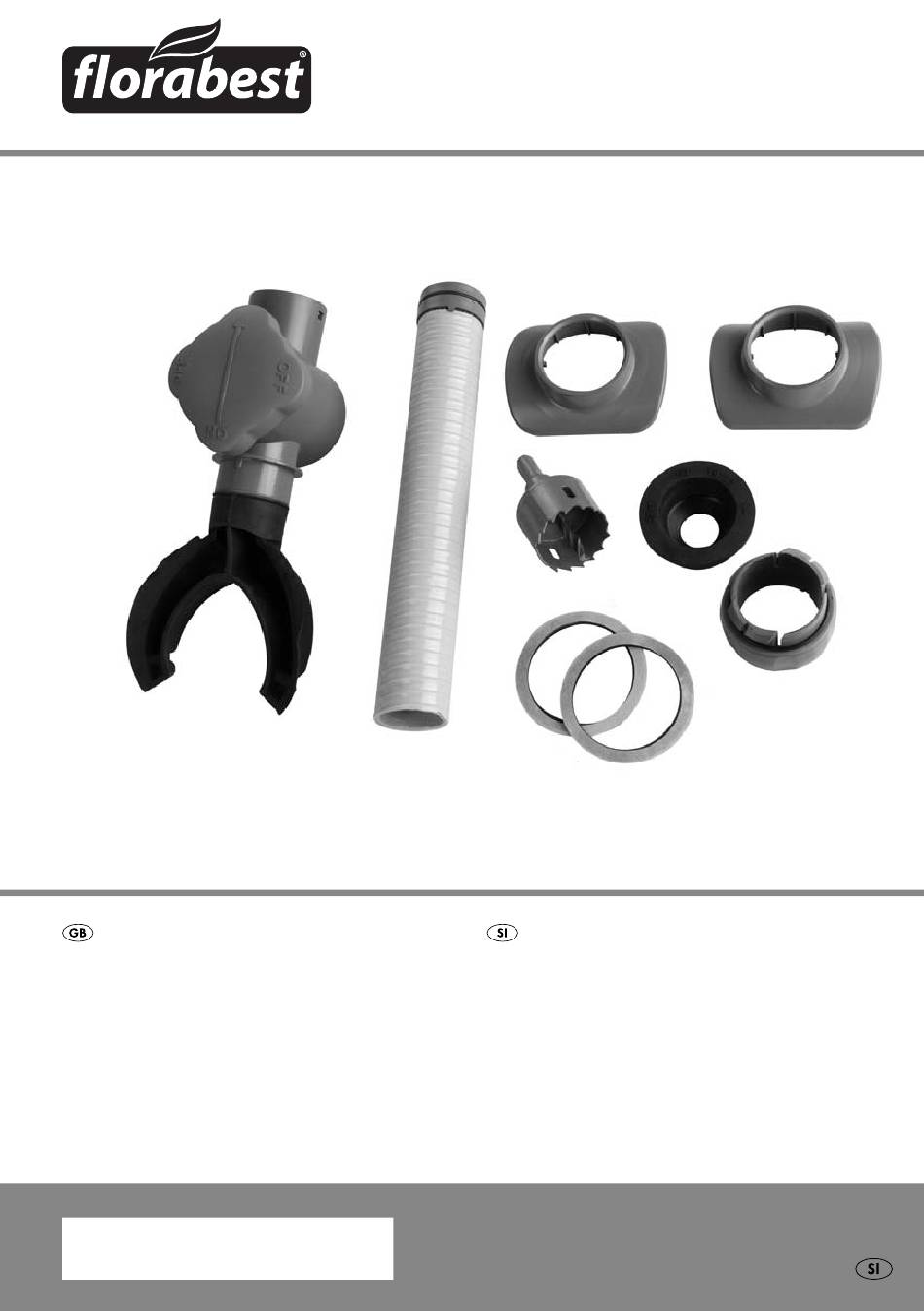

- Page 1 DOWNPIPE RAINWATER DIVERSION SET FRWS 9 A1 DOWNPIPE RAINWATER KOMPLET ZA ZBIRALNIK DEŽEVNICE Navodila za montažo DIVERSION SET Assembly Instructions IAN 73211...
- Page 2 Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device. Pred branjem obe strani s slikami odprite navzven in se nato seznanite z vsemi funkcijami naprave. Assembly Instructions Page Navodila za montažo Stran...
-
Page 5: Table Of Contents
Importer ............5 FRWS 9 A1... -
Page 6: Introduction

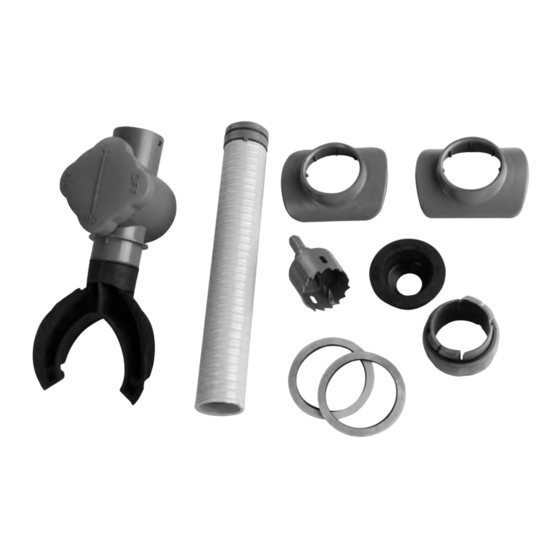

1 Rubber seal for the hole in the rainwater barrel (DN 19/32) 1 Clamping device 1 Rainwater collector with control valve and fi lter insert 1 Connection hose Figure B: with overfl ow protection with sommer-/winter operation Suitable for all vertical downpipes DN 70 - 110 mm FRWS 9 A1... -
Page 7: Assembly
Then deburr the drillhole with a suitable tool, such as a carpet knife for plastic downpipes or a fi le with sheetmetal downpipes. 3. Now drill the hole in the rainwater barrel with the crown drill and then deburr the drillhole (see Figure F). FRWS 9 A1... -
Page 8: Rainwater Collector
2. Moisten the end of the connecting hose with detergent. 3. Firmly press the connection hose through the rubber seal DN 19/32. 4. Connect the rainwater collector and the rainwater barrel with the connec- tion hose (see Figure K). FRWS 9 A1... -
Page 9: Summer And Winter Operation
Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 73211 Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 73211 Importer KOMPERNASS GMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com FRWS 9 A1... - Page 10 FRWS 9 A1...
- Page 11 Proizvajalec ..........11 FRWS 9 A1...
-
Page 12: Uvod
1 gumijasto tesnilo za vrtino v sodu za deževnico (DN 19/32) 1 vpenjalna priprava 1 zbiralnik deževnice z regulacijskim ventilom in fi ltrirnim vstavkom 1 priključna gibka cev Slika B: z zaščito preliva z uporabo poleti/pozimi primerno za vse navpične padne cevi DN 70 - 110 mm FRWS 9 A1... -
Page 13: Montaža
Na koncu zgladite rob vrtine s primernim orodjem, kot npr. z nožem (olfa) pri plastičnih ceveh ali s pilo pri pločevinastih padnih ceveh. 3. Sedaj s kronskim svedrom izvrtajte luknjo v sod za deževnico in mesto vrtanja ravno tako zgladite (glejte sliko F). FRWS 9 A1... -
Page 14: Zbiralnik Deževnice
2. Navlažite konec priključne gibke cevi s sredstvom za pomivanje. 3. Priključno gibko cev krepko potisnite skozi gumijasto tesnilo DN 19/32. 4. Povežite zbiralnik deževnice in sod za deževnico s priključno gibko cevjo (glejte sliko K). FRWS 9 A1... -
Page 15: Uporaba Poleti In Pozimi
V primeru dvoma se obrnite na krajevno podjetje za predelavo odpadkov. Servis Servis Slovenija Tel.: 080080917 E-Mail: kompernass@lidl.si IAN 73211 Proizvajalec KOMPERNASS GMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com Prodajalec: Lidl d.o.o.k.d. Žeje pri Komendi 100 SI-1218 Komenda FRWS 9 A1... - Page 16 KOMPERNASS GMBH Burgstraße 21 D-44867 Bochum www.kompernass.com Last Information Update · Stanje informacij: 04 / 2012 · Ident.-No.: FRWS9A1032012-2 IAN 73211...
