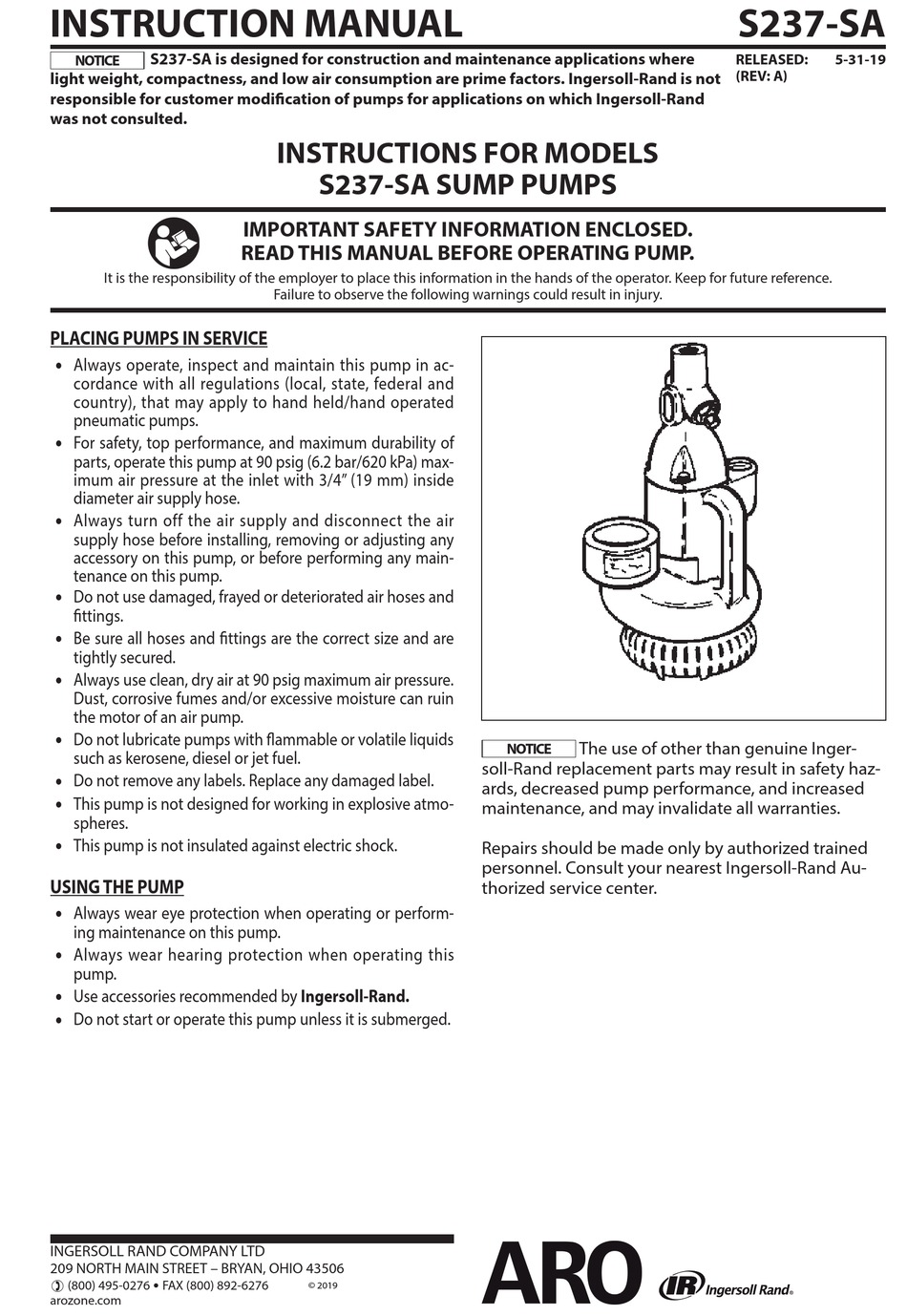

INSTRUCTION MANUAL
S237-SA is designed for construction and maintenance applications where
NOTICE
light weight, compactness, and low air consumption are prime factors. Ingersoll-Rand is not
responsible for customer modification of pumps for applications on which Ingersoll-Rand
was not consulted.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
PLACING PUMPS IN SERVICE
Always operate, inspect and maintain this pump in ac-
y
cordance with all regulations (local, state, federal and
country), that may apply to hand held/hand operated
pneumatic pumps.
For safety, top performance, and maximum durability of
y
parts, operate this pump at 90 psig (6.2 bar/620 kPa) max-
imum air pressure at the inlet with 3/4" (19 mm) inside
diameter air supply hose.
Always turn off the air supply and disconnect the air
y
supply hose before installing, removing or adjusting any
accessory on this pump, or before performing any main-
tenance on this pump.
Do not use damaged, frayed or deteriorated air hoses and
y
fittings.
Be sure all hoses and fittings are the correct size and are
y
tightly secured.
Always use clean, dry air at 90 psig maximum air pressure.
y
Dust, corrosive fumes and/or excessive moisture can ruin
the motor of an air pump.
Do not lubricate pumps with flammable or volatile liquids
y
such as kerosene, diesel or jet fuel.
Do not remove any labels. Replace any damaged label.
y
This pump is not designed for working in explosive atmo-
y
spheres.
This pump is not insulated against electric shock.
y
USING THE PUMP
Always wear eye protection when operating or perform-
y
ing maintenance on this pump.
Always wear hearing protection when operating this
y
pump.
Use accessories recommended by Ingersoll-Rand.
y
Do not start or operate this pump unless it is submerged.
y
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
INSTRUCTIONS FOR MODELS
S237-SA SUMP PUMPS
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING PUMP.
Failure to observe the following warnings could result in injury.
© 2019
The use of other than genuine Inger-
NOTICE
soll-Rand replacement parts may result in safety haz-
ards, decreased pump performance, and increased
maintenance, and may invalidate all warranties.
Repairs should be made only by authorized trained
personnel. Consult your nearest Ingersoll-Rand Au-
thorized service center.
S237-SA
RELEASED:
5-31-19
(REV: A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO S237-SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand ARO S237-SA

  • Page 1 S237-SA is designed for construction and maintenance applications where RELEASED: 5-31-19 NOTICE (REV: A) light weight, compactness, and low air consumption are prime factors. Ingersoll-Rand is not responsible for customer modification of pumps for applications on which Ingersoll-Rand was not consulted. INSTRUCTIONS FOR MODELS S237-SA SUMP PUMPS IMPORTANT SAFETY INFORMATION ENCLOSED.
  • Page 2: Warning Label Identification

    WARNING LABEL IDENTIFICATION FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY. WARNING WARNING WARNING Important information contained in Always wear eye protection when Operation and Maintenance Manual operating or performing mainenance for safe tool operation. on this tool. This material must be read prior to operating the tool.
  • Page 3: Impeller Adjustment

    Shims to permit the Impeller to rotate without the Motor Housing. any drag. Ingersoll-Rand Sump Pumps can be completely sub- merged but a watertight exhaust conduit to the sur- face of the sump liquid should be maintained at all...
  • Page 4: Part List

    PART LIST Page 4 of 8 S237-SA (en)
  • Page 5 PART LIST Item Description Qty Part No. Item Description Qty Part No. (size) (size) 30 Front End Plate (1) 99V60-11 1 Backhead Assembly (includes item 2, 7, 8, (1) S237-A102 31 Motor Clamp Washer (2) 99V60-207 9, 10 and 11) 32 Rotor Shaft (1) P226-204 2 Oiler Body Assembly...
  • Page 6: Maintenance Section

    Grease Fitting (15) on the Motor Housing (14). ered vise jaws, and unscrew the Controller Re- Use the No. P25-228 Grease Gun. taining Nut. 5. We recommend the use of Ingersoll-Rand No. 8LUB12 Lubricator located in the air supply line The Controller Assembly has a left- NOTICE as close to the Pump as practical.
  • Page 7 20. Using a water seal cap spanner wrench, unscrew 7. Slide the Rotor (27) down over the Rotor Shaft, engaging the Rotor Key. and remove the Water Seal Cap Assembly. 8. Place a Vane (29) in each vane slot. 21. Withdraw the Seal Spacer (35). 9.
  • Page 8: Troubleshooting Guide

    9 to 12 ft-lb (12.2 to 16.2 Nm) torque. 28. Lay the Pump on its side and slide the Impeller 32. Inject 10 or 15 strokes of Ingersoll-Rand No. 80 (41), hub side first, on the splined end of the Ro- Water Pump Grease into the Grease Fitting (15) tor Shaft.
