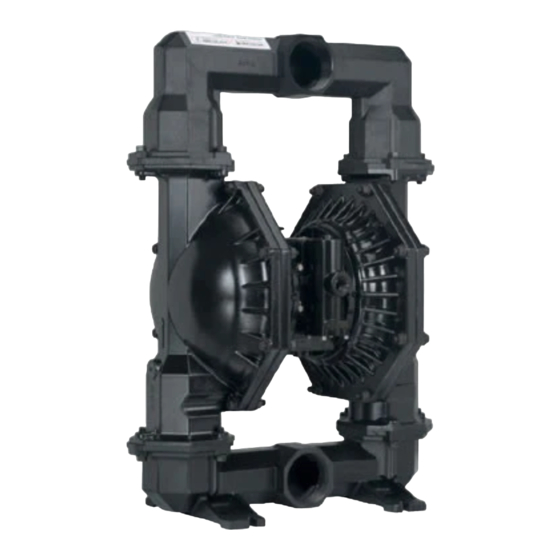

3" diaphragm pump

Advertisement

Quick Links

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Refer to Model Description Chart to match the pump material op-
tions.
637303-AA for fluid section repair (see page 4).
NOTE: This kit also contains several air motor seals which will need
to be replaced.
670105 major air valve assembly (see page 7).
670103 for air section repair (see page 6).

PUMP DATA

Models . . . . . . . . . . . . . . . . . 670098
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129.5 lbs (58.8 kgs)
Maximum Air Inlet Pressure . . . . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . . . . . 237 gpm (897 lpm)
flooded inlet . . . . . . . . . . . . . . . . . . . . . . . . . . 275 gpm (1041 lpm)
Displacement / Cycle @ 100 psig . . . . . . . 2.8 gal. (10.6 lit.)
Maximum Particle Size . . . . . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santropene® . . . . . . . . . . . . . . . . . . . -40 to 225° F (-40° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Mounting Dimensions. . 10-5/32" x 12-1/16" (258 mm x 306 mm)
Noise Level @ 70 psi, 50 cpm
 Tested with 67263 muffler assembly installed.
 The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (LA
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . . . 83.0 db(A)
) to meet the intent of
eq
© 2019
CCN 15333719
Figure 1
MODEL DESCRIPTION CHART
Electronic Interface
D - None
Air Motor / Air Cap Material
A - Aluminum / Aluminum
Fluid Connection
A - 3 - 8 NTPF -1
Fluid Cap and Manifold Material
A - Aluminum
Hardware Material
P - Carbon steel
Seat Material
A - Santropene
Ball Material
A - Santropene
Diaphragm Material
A - Santropene
670098
RELEASED:
2-2-10
REVISED:
2-22-19
(REV: H)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO 670098 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand ARO 670098

  • Page 1 OPERATOR’S MANUAL 670098 INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 2-2-10 REVISED: 2-22-19 3" DIAPHRAGM PUMP (REV: H) 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS Refer to Model Description Chart to match the pump material op- tions.
  • Page 2 OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. Obtain Material Safety Data Sheets on all materials from EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS the supplier for proper handling instructions. STATIC SPARK HAZARDOUS PRESSURE EXPLOSION HAZARD.
  • Page 3 Loctite® is a registered trademark of Henkel Loctite Corporation y y Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L.P. y ARO® is a registered trademark of Ingersoll-Rand Company y y Lubriplate® is a registered trademark of Lubriplate Division (Fiske Brothers Refining Company) y 262™, 271™ and 572™ are trademarks of Henkel Loctite Corporation y...
  • Page 4 PARTS LIST / 670098 FLUID SECTION  637303-AA Fluid section service kit includes: Balls, Diaphragms and items 19, 70, 144, 175 (listed below) and 174 and 94276 Lubriplate FML-2 grease (page 6). SEAT OPTIONS 670098 BALL OPTIONS 670098 MATERIAL CODE “21”...
  • Page 5 PARTS LIST / 670098 FLUID SECTION COLOR CODE Diaphragm Ball Material Color Color Nitrile Black Red (•) (-) Stripe (•) Dot FOR THE AIR MOTOR SECTION, Torque Sequence SEE PAGES 6 AND 7. Figure 2  ASSEMBLY TORQUE REQUIREMENTS  NOTE: DO NOT OVERTIGHTEN FASTENERS.
  • Page 6 PARTS LIST / 670098 AIR MOTOR SECTION  Indicates parts included in 670103 air section service kit shown below and items (70), (144), (175) and (180) shown on page 4. AIR MOTOR PARTS Item Description Qty Part No. Item Description Qty Part No.
  • Page 7 PARTS LIST / 670098 AIR MOTOR SECTION PILOT VALVE PART GROUP Optional 94117 Mu er MAJOR VALVE Figure 3  ASSEMBLY TORQUE REQUIREMENTS  LUBRICATION / SEALANTS NOTE: DO NOT OVERTIGHTEN FASTENERS.  Apply Lubriplate FML-2 grease to all “O” rings, “U” cups and mat- ing parts.
  • Page 8 TROUBLESHOOTING Product discharged from exhaust outlet. Low output volume, erratic flow or no flow. Check for diaphragm rupture. Check air supply. Check tightness of (14) diaphragm screw. Check for plugged outlet hose. Check for kinked (restrictive) outlet material hose. Check for kinked (restrictive) or collapsed inlet material hose. Air bubbles in product discharge.
