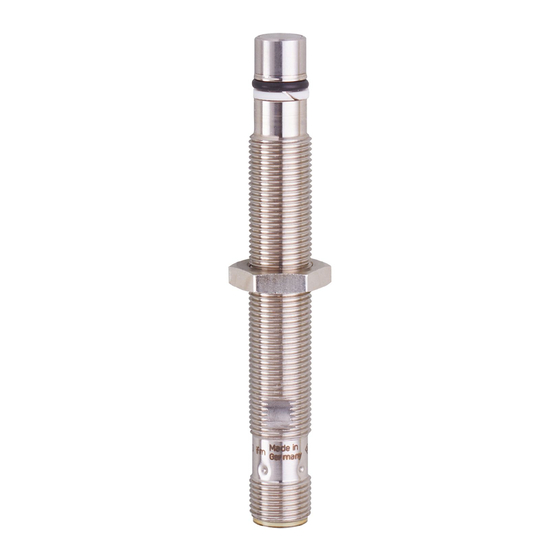

- Page 1 Operating instructions Hydraulic cylinder sensor MFH / M9H...
- Page 2 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications Cross-reference Important note Non-compliance may result in malfunction or interference.
- Page 3 ATTENTION During set-up, do not screw in the unit too deeply to avoid mechanical damage to the unit, piston rod and cylinder. For mounting with a fixed end stop, use units from the M9H series. u Make sure that the piston rod is in the end position to be detected.
- Page 4 4 Electrical connection The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to. u Disconnect power. u Connect the unit as specified in the data sheet / type label.
