- Page 1 Operating instructions Through-beam sensor OGE7xx / OGS7xx...
-
Page 2: Symbols Used

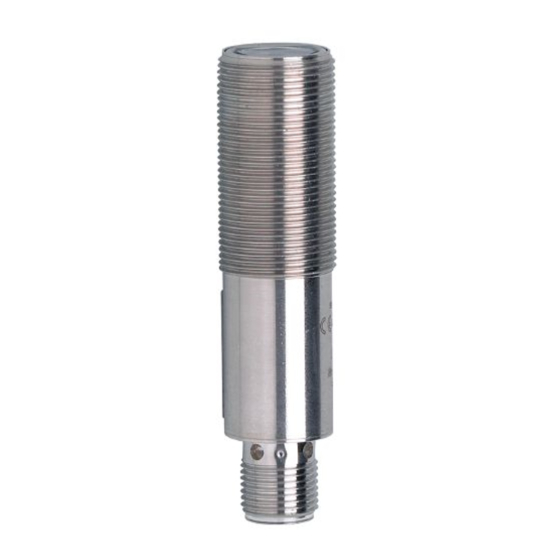

Position of the product label Additional label 3 Functions and features The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal. Range: www.ifm.com → Select your country → Data sheet direct: e.g. OGE700. -
Page 3: Electrical Connection
4 Installation transmitter receiver 1: LED ► Secure the receiver (OGE7xx) to a bracket. ► Align the transmitter (OGS7xx) to the receiver and secure it in the same way. Maximum range is only possible with precise alignment. 5 Electrical connection The unit must be connected by a qualified electrician. - Page 4 6 Settings 6.1 The sensor is to switch when the object is detected ► Position the object. ► Press [OUT on]. > The LED flashes. ► Remove the object. ► Press [OUT off]. > The LED goes out. The programming is finished. 6.2 The sensor is not to switch when the object is detected ►...
- Page 5 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic material. ► Do not try to open the module enclosure. There are no user - serviceable components inside. Technical data and further information at www.ifm.com...
