en - Installation

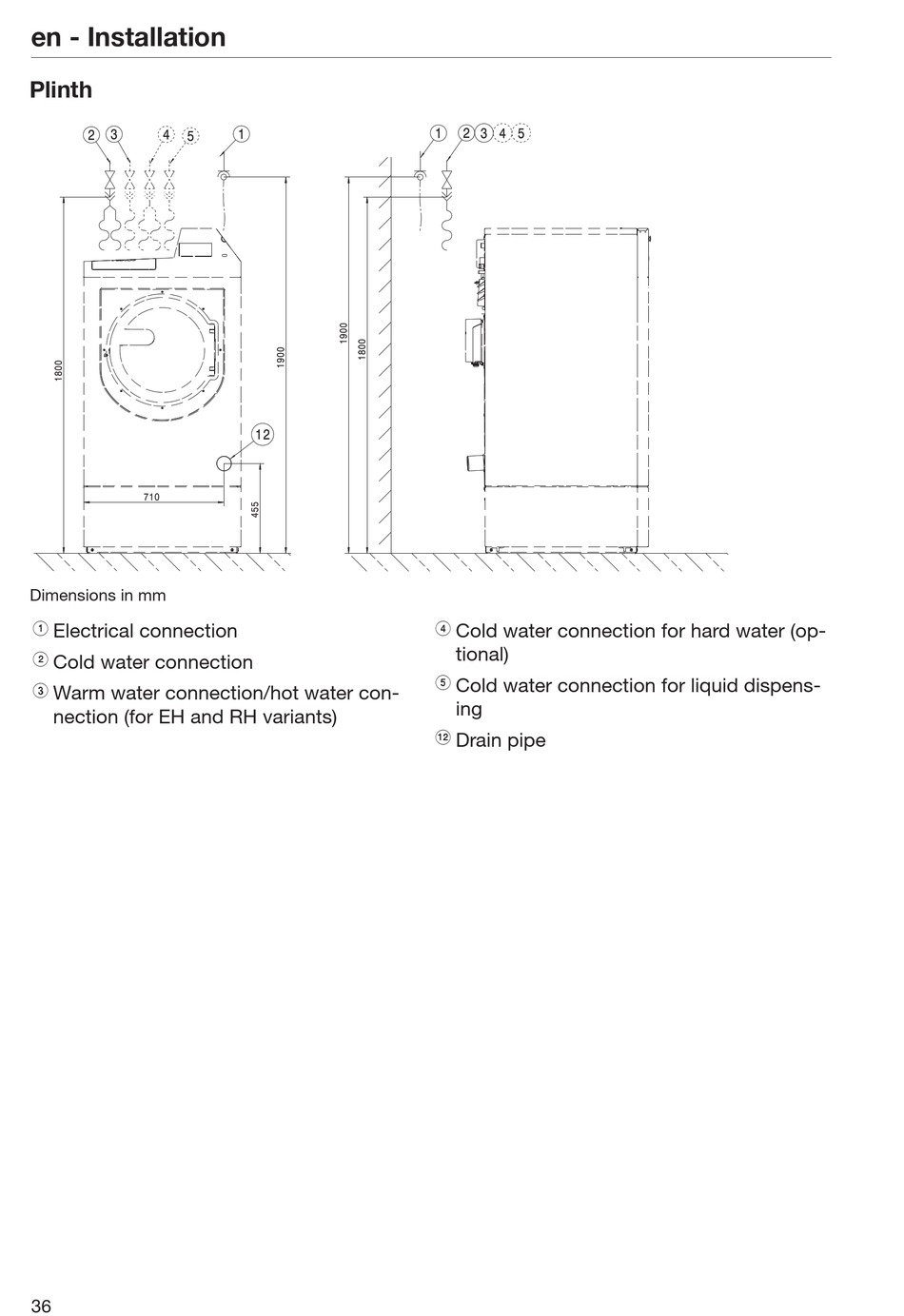

Plinth

Dimensions in mm
a
Electrical connection
b
Cold water connection
c
Warm water connection/hot water con-
nection (for EH and RH variants)
36
d
Cold water connection for hard water (op-
tional)
e
Cold water connection for liquid dispens-
ing
l
Drain pipe
