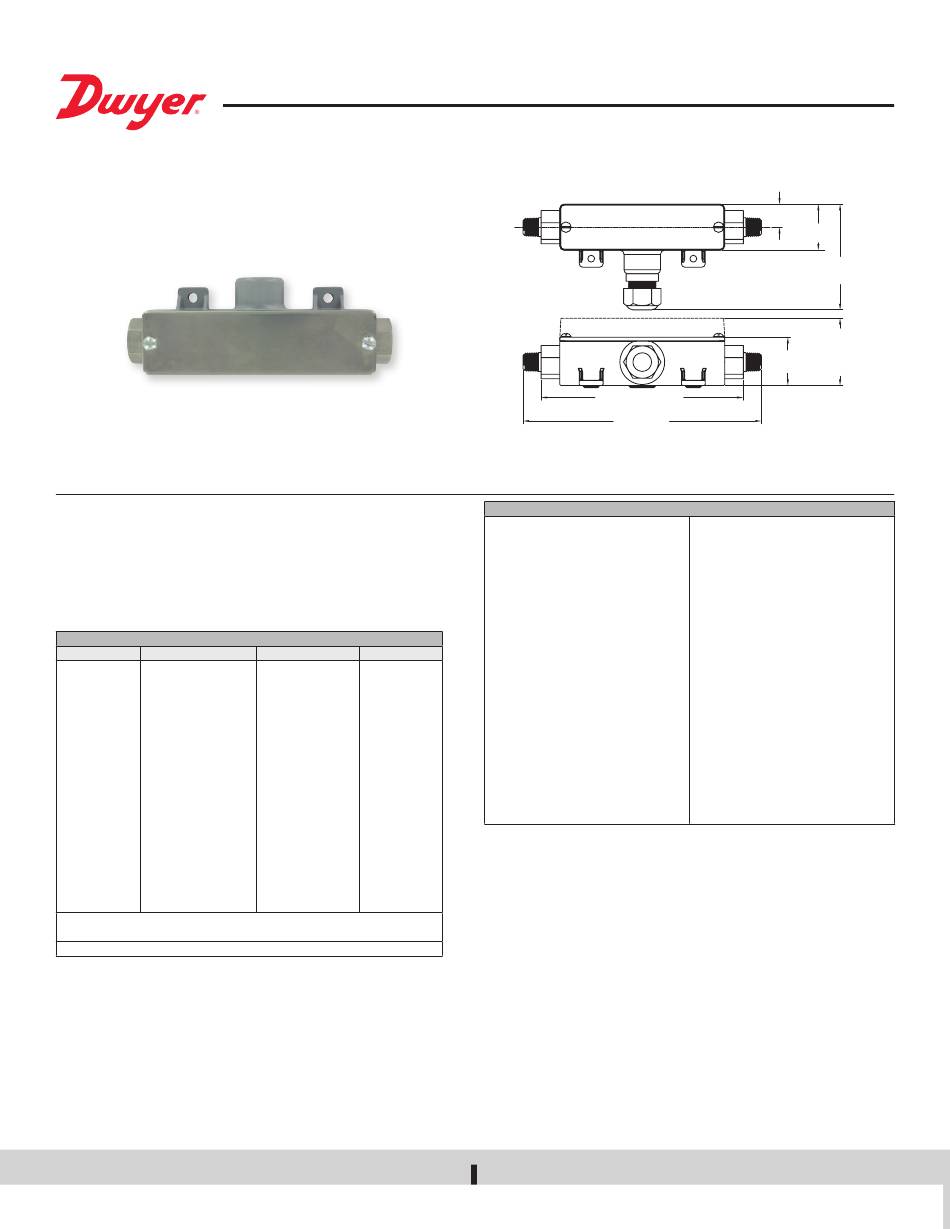

Dwyer Instruments 629C series Specifications-Installation And Operating Instructions

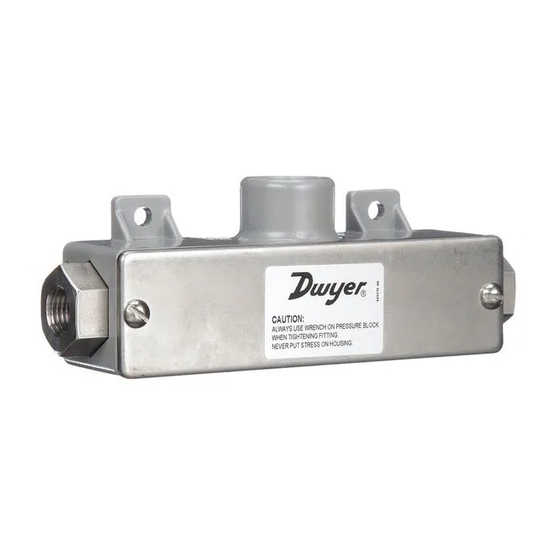

The SERIES 629C Wet/Wet Differential Pressure Transmitter monitors differential
pressure of compatible gases and liquids with 0.5% accuracy. The design employs
dual pressure sensors converting pressure changes into a 4 to 20 mA or voltage output
signal. Small internal volume and minimal moving parts result in exceptional response
and reliability. The wiring terminals and zero adjustment button are easily accessed
under the removable cover. The Series 629C is designed to meet NEMA 4X (IP66)
weatherproof construction.
RANGE
Range Number Range
01 0 to 5 psid
02 0 to 10 psid
03 0 to 25 psid
04 0 to 50 psid
05 0 to 100 psid
06 0 to 150 psid
07 0 to 200 psid
08 0 to 300 psid
09 0 to 500 psid
11 0 to 0.5 bar differential
12 0 to 1 bar differential
13 0 to 2 bar differential
14 0 to 4 bar differential
15 0 to 6 bar differential
16 0 to 10 bar differential
17 0 to 15 bar differential
18 0 to 20 bar differential
19 0 to 30 bar differential
*Pressures exceeding the working pressure limit may cause a calibration shift
of up to ±3% of full scale.
Note: Over pressure of all models with 3-way valve is 100 psi.
Table 1: Pressure Limits
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Find Quality Products Online at:
Series 629C Wet/Wet Differential Pressure Transmitter
Specifications - Installation and Operating Instructions
Working Pressure* Over Pressure
10 psi 50 psi
20 psi 50 psi
50 psi 120 psi
100 psi 250 psi
200 psi 500 psi
300 psi 750 psi
400 psi 1000 psi
600 psi 1200 psi
1000 psi 2000 psi
1 bar 3 bar
2 bar 8 bar
4 bar 8 bar
8 bar 18 bar
12 bar 18 bar
20 bar 50 bar
30 bar 60 bar
40 bar 80 bar
60 bar 120 bar
GlobalTestSupply
www.
5-15/16 [150.88]
1/4 NPT FEMALE FITTING
7 [177.80]
OPTIONAL 1/4 NPT MALE FITTING
SPECIFICATIONS
Service: Compatible gases and liquids.
Wetted Materials: Without valve: 316,
316L SS. Additional wetted parts with
valve option: Buna-N, silicone grease,
PTFE, brass 360, copper, and reinforced
copolymer.
Accuracy: ±0.5% FS (includes linearity,
hysteresis & repeatability).
Stability: ±1% FS/year.
Temperature Limits: 0 to 200°F (-18 to
93°C).
Compensated Temperature Limits: 0
to 175°F (-18 to 79°C).
Pressure Limits: See Table 1.
Thermal Effects: Avg 0.04%/°F
(0.072%/°C) (includes zero and span).
Power Requirements: 2-wire: 10 to 35
VDC; 3-wire: 13 to 35 VDC or isolated 16
to 33 VAC (reverse polarity protected).
Output Signal: 2-wire: 4 to 20 mA;
3-wire: Field selectable 0 to 5, 1 to 5, 0
to 10, or 2 to 10 VDC.
Phone: 219/879-8000
Fax: 219/872-9057
.com
Bulletin P-629C
43/64
[17.15]
1-11/32
[34.29]
3-7/64
[78.83]
1-31/32
[50.16]
1-27/64
OPTIONAL
[35.98]
LCD
Zero and Units: Push buttons inside
conduit enclosure.
Response Time: 400 msec.
Loop Resistance: Current output: 0
to 1250 Ω (max), Rmax = 50(Vps-10);
Voltage output: Minimum load resistance
= 5 kΩ.
Current Consumption: 28 mA (max).
Electrical Connections: Removable
terminal block; 1/2˝ female NPT conduit.
Process Connections: 1/4˝ female or
male NPT.
Display: Optional 4-1/2 digit LCD field
attachable display.
Enclosure Rating: Designed to meet
NEMA 4X (IP66) for non-LCD models.
Mounting Orientation: Not position
sensitive.
Weight: 10.1 oz (286 g).
Agency Approvals: CE.
