Copernicus iRover2 IFP600 Assembly Manual page 8

Actual Size:
4
You will need: (Not to Scale)

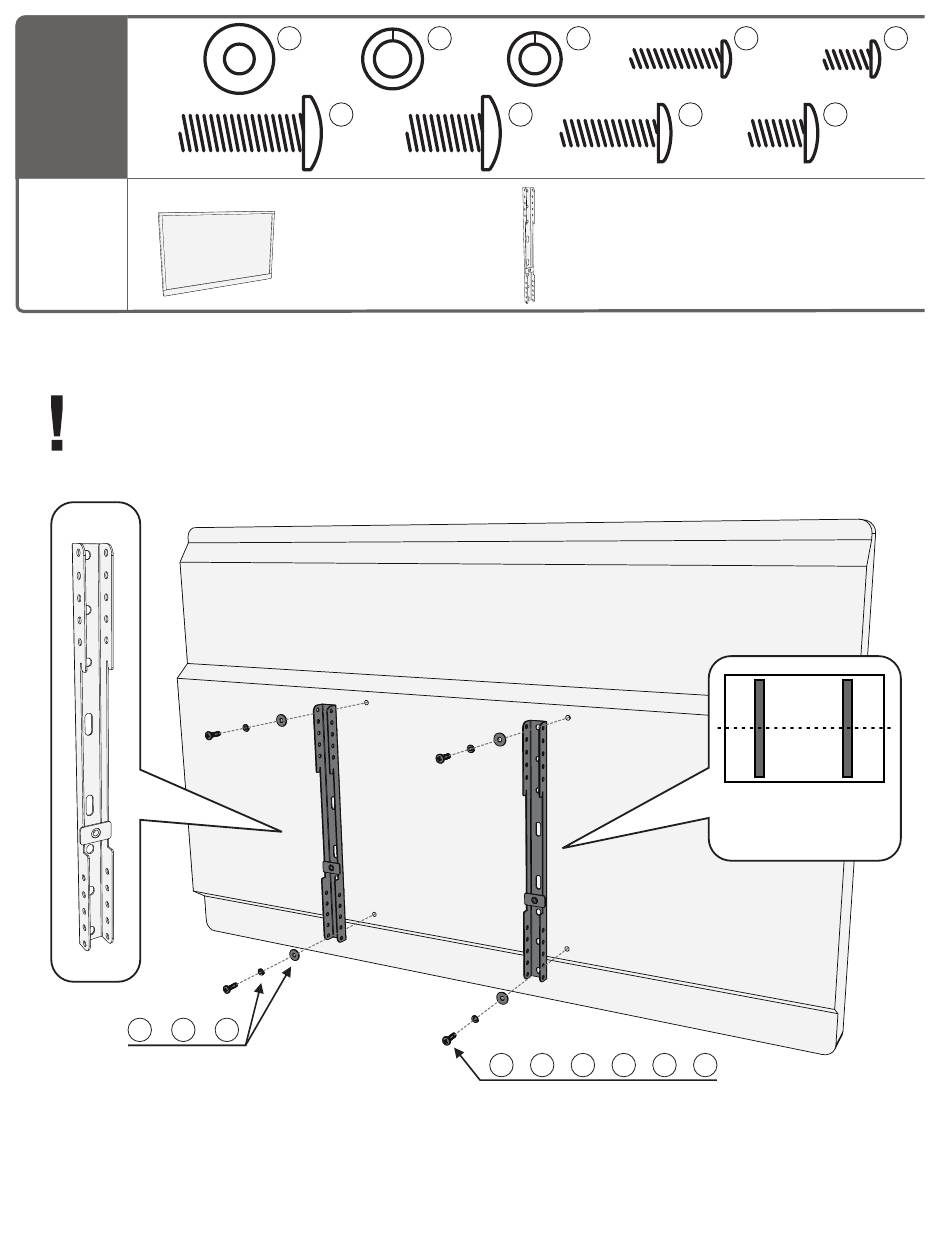

Attaching Your Flat Panel Mount
Check your flat panel owner's manual to determine correct VESA screw size and torque specifications to
avoid causing damage to your flat panel.
Top
Bottom
J K
or
(4x)
8
J
4x
N
4x
M8x25mm
Compatible flat panel
(sold separately)
1x
L
or
IFP600, IFP650 - Version A - Released August 31, 2022 - Copernicus Educational Products Inc.
K L
4x 4x
O
4x
M6x20mm
M8x15mm
Flat Panel Mount
2x
N O P
or or
R
4x
M4x20mm
P
4x
M6x12mm
(Showing 55" Flat Panel)
Center Risers
Vertically
on Flat Panel
Q R S
or or or
(4x)
S
4x
M4x10mm
Q
4x
