FTT624, FTT624-USB,
FTT632, FTT632-USB
WARNING
24 Device Cart
(FTT624 or FTT624-USB)
FTT624_624-USB_632_632-USB - PATENT PENDING - Version A - Released January 19, 2018 - Copernicus Educational Products Inc.
Please Recycle
2
Tech Tub

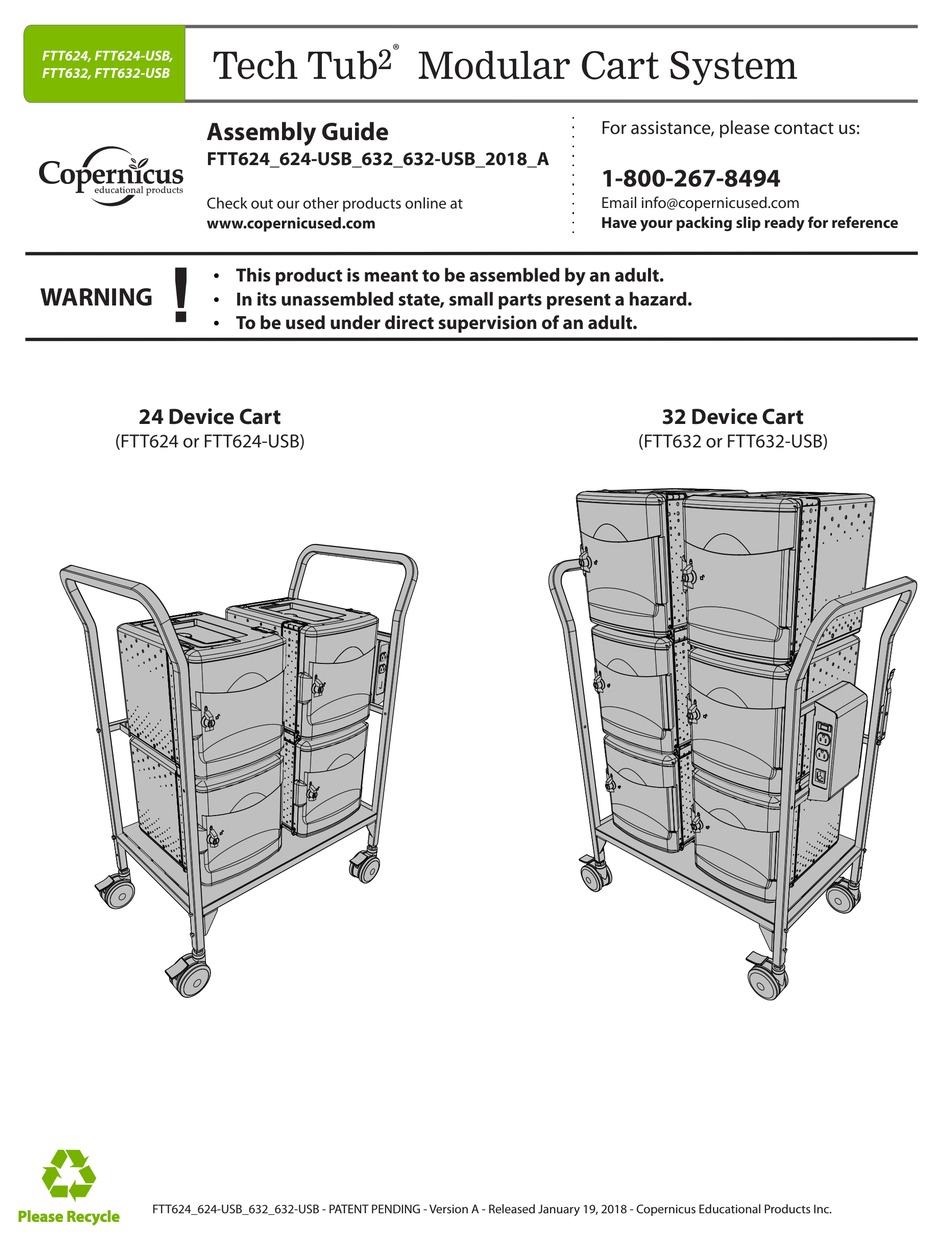

Assembly Guide
FTT624_624-USB_632_632-USB_2018_A
Check out our other products online at
www.copernicused.com
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
®
Modular Cart System
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
32 Device Cart
(FTT632 or FTT632-USB)
