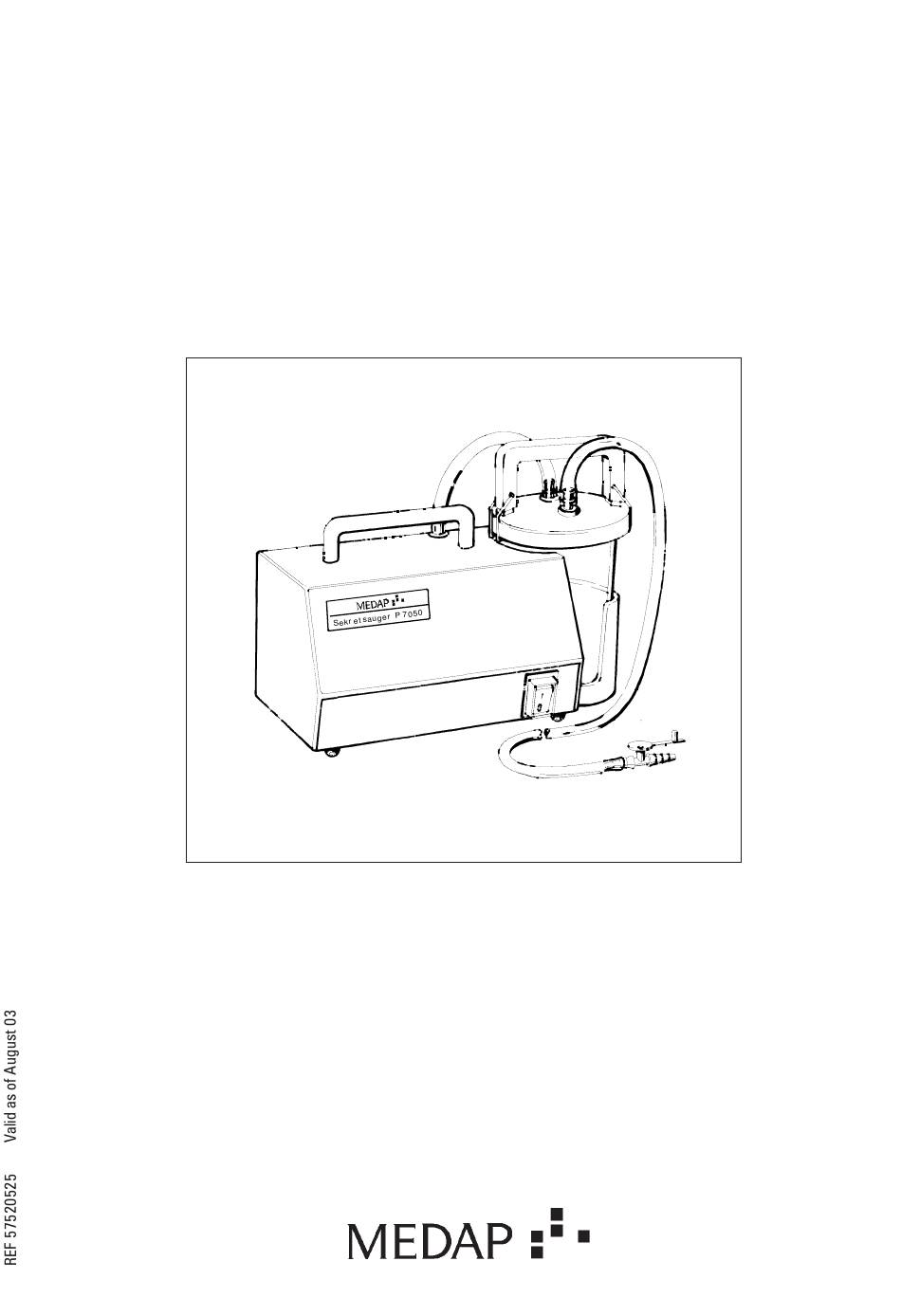

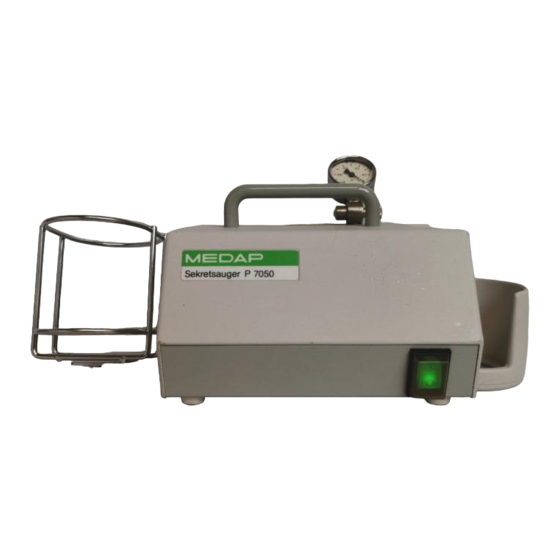

- Page 1 Septic Fluid Aspirator P 7050 (P 7050 100 01 / 57505128) Operating Instructions...
-
Page 2: Table Of Contents
Table of Contents Explanation of the pictorial signs .............. 3 What is What? (Overview) ............... 4 Safety ....................... 5 General Description ................... 6 Correct operation ...................... 6 Technical description ....................6 Accessories ......................7 Operation ....................8 Starting the operation ....................8 Preparation of accessories .................. -
Page 3: Explanation Of The Pictorial Signs
A prerequisite for handling this device is a detailed knowledge of and the compliance with these operating instructions. Explantion of the pictorial signs Pictorial signs will draw your attention to important infor- mation in this operating manual. These hints are a prerequisite for excluding potential risks for patients and operating staff as well as for the prevention of damage to the device and/or functional defects. -
Page 4: What Is What? (Overview)
What is What ? (Overview) 1 Basic aspirator Humidity filter 2 Suction tube 3 Rocker switch (on/off) 4 Finger tip control (accessory) 5 Septic fluid jar cap 6 Tube nipple 7 O-Ring 8 Gasket 9 Septic fluid jar 10 Suction unit Accessories: Manometer with overflow prevention device 11 Manometer... -
Page 5: Safety
We care about safety! These operating instructions are intended for: operating staff the user at home. The operating instructions do not replace the careful training of personnel or user. Only qualified personnel are permitted to use this device in accordance with the operating instructions. -
Page 6: General Description
Technical description In the P 7050 aspirator, the vacuum is generated by an electrically driven pumping aggregate. The vacuum is - 0,8 bar and can be regulated with a ma- nometer with regulating valve and overflow prevention device (accessory). -
Page 7: Accessories
Accessories The following basic requirements must be complied with: • Connection between aspirator and septic fluid contai- ner (connecting tube): via a humidity filter; suction tube with inner diameter 6-7 mm, vacuum-resistant to -0.8 bar (must not collap- se); must be sterilizable or disposable (already sterilized);... -
Page 8: Operation
Operation Starting the operation Before you connect the aspirator, check if the supply voltage corresponds to the information on the type label. • Place the aspirator in a vertical and safe position. • Place the septic fluid jar cap (5) onto the septic fluid jar (9). -
Page 9: Aspiration
Aspiration Comply with the relevant hygiene regulations when sep- tic fluids are aspirated. Only use the aspirator in a vertical position. • Check aspirator for visible damage prior to use, e.g. ruptures or cracks in tubes or septic fluid containers. •... -
Page 10: Cleaning, Disinfection, Sterilization
Cleaning, Disinfection, Sterilization Pull the power plug prior to each cleaning. Comply with the hygiene regulations and protect you eyes and skin when working with disinfectants. Do not clean the surfaces of the housing with solvents that contain hydrocarbon (e.g. benzene, diluent). Efficiency of disinfection and/or sterilization is likely to be impaired by trapped or encapsula- ted impurities or residual humidity. - Page 11 • Remove dirt and contaminations with washing agent and continue with the treatment of the parts as detai- led in the table on page 10. In home care, boil the removable parts at least for 20 minutes or use disinfectant. The procedures mentioned here are only valid for original Heraeus Med components.
-
Page 12: Troubleshooting
Troubleshooting / Maintenance Troubleshooting Defect Reason Corrective action No power Check fuses Power plug does not correctly fit Insert power plug correctly Aspirator does not run Power cable defective Have device repaired Motor does not run Septic fluid jar cap not correctly placed Place septic fluid jar cap correctly Humidity filter clogged Exchange filter... -
Page 13: Accessories / Consumables / Spare Parts
Accessories / Consumables / Spare Parts Accessories Article Article no. REF no. Septic fluid jar 1.0 l PE 0214 01 57505296 Manometer with regulating valve ---------------- 57521235 and overflow prevention device Consumables Tube SIL. 6x12 per meter (2) SL 6006 12 57505467 Humidity filter (page. -
Page 14: Technical Data
Technical Data Performance data Displacement 14 l/min Art. no. P 7050 100 01 / REF 57505128 Vacuum (maximum) -0.8 bar at Voltage 230 V AC M.S.L.* Frequency 50 Hz Power consumption 50 W Power rating 400 mA Connected duration 100 %... -
Page 15: Disposal
Disposal / Symbols Disposal For the manufacture of P 7050 materials are used which are utilizable or can be recycled and which do not carry a special or extraordinary risk during disposal. Heraeus Med will recycle a device which has become un- suitable for use against payment of costs. - Page 16 MAQUET GmbH & Co KG MAQUET GmbH & Co KG Kehler Straße 31 Kehler Straße 31 D-76437 Rastatt D-76437 Rastatt AUSGABE: AUGUST 2003 SECTION: AUGUST 2003 REF 5752 0525 REF 5752 0525 VERTRIEB: 0 18 03 / 21 21 33 SALES: +49 / 72 22 / 932 –...
