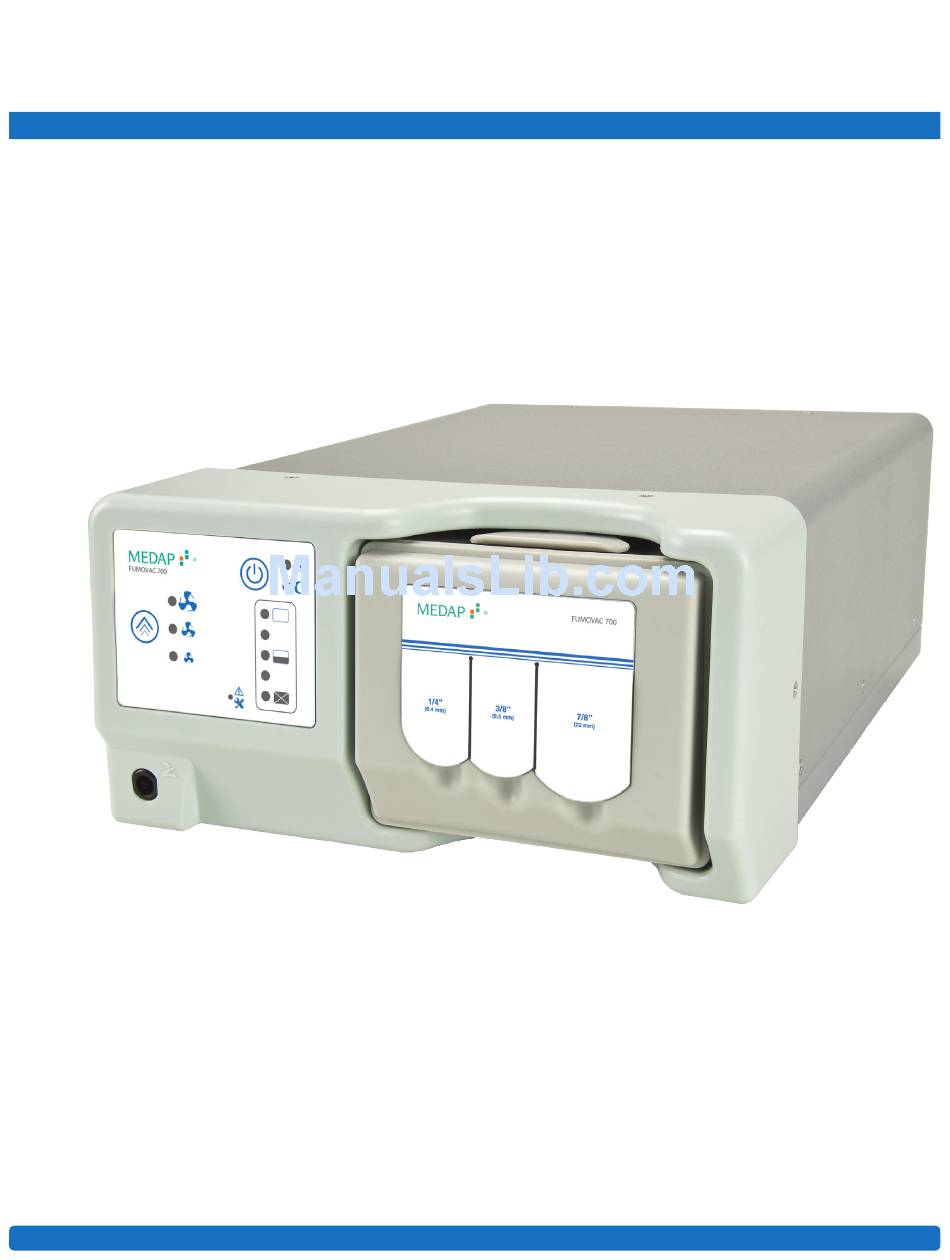

- Page 1 FUMOVAC 700 Surgical Smoke Evacuator Operator’s Manual Distributed by: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany GA 5752.5425 EN 02 www.buffalofilter.com www.atmosmedical.com 0049.7653.6890...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Title Page — DIAGRAM / CONTENTS — GLOSSARY DESCRIPTION/ INTRODUCTION Introduction Inspection Operational Information Cautions and Warnings OPERATING INSTRUCTIONS Control Panel Set-up and Operation Filter Instructions Performance References Electromagnetic Compatibility Information MAINTENANCE General Maintenance Information Cleaning Periodic Inspection Troubleshooting CUSTOMER SERVICE... -
Page 3: Diagram / Contents
“Hospital Grade” or “Hospital Only”. Power Receptacle REAR Figure 1 120 Power Cord 220 Power Cord Pneumatic Footswitch CD Electronic Manual Customer/Technical Services: 0049 7653 6890 Page 3 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 4: Glossary
Device with one or more filters designed to evacuate surgical smoke and aerosol from the operative site, filter out the contaminants, and return filtered air to the operating room. Volts Alternating Current Customer/Technical Services: 0049 7653 6890 Page 4 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 5: Description/ Introduction
6. Degree of safety of application in the presence of flammable anesthetic mixture with air or with oxygen or nitrous oxide (UL 60601-1, Clause 5.5): Not Suitable 7. Mode of operation (UL 60601-1, Clause 5.6): Continuous Customer/Technical Services: 0049 7653 6890 Page 5 905045 Rev B ATMOS MEDAP Operator’s Manual... - Page 6 -4.61dBuA/m at 10m. Hereby, Buffalo Filter declares that the Surgical Smoke Evacuator radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.buffalofilter.com/service-support/ frequently-asked-questions/. Customer/Technical Services: 0049 7653 6890 Page 6 905045 Rev B ATMOS MEDAP Operator’s Manual...
-
Page 7: Cautions And Warnings
• Changes or modifications not expressly approved by the manufacturer could void the warranty. • To avoid risk of electric shock, this equipment must only be connected to a supply mains with a grounded electrical outlet. Customer/Technical Services: 0049 7653 6890 Page 7 905045 Rev B ATMOS MEDAP Operator’s Manual... - Page 8 • There are no user serviceable components in the Surgical Smoke Evacuator. Refer routine servicing to qualified facility biomedical technical personnel or technical services. • Use only with the Power Cord provided and always plug into a grounded electrical outlet. Customer/Technical Services: 0049 7653 6890 Page 8 905045 Rev B ATMOS MEDAP Operator’s Manual...
- Page 9 PROTECTION AGAINST INGRESS OF WATER AS DETAILED IN IEC 60529 ALTERNATING CURRENT PROTECTIVE EARTH, (GROUND) EQUIPOTENTIALITY DENOTES THE DATE THE EQUIPMENT WAS MANUFACTURED DENOTES THE MANUFACTURER OF THE DEVICE NON-IONIZING RADIATION CONSULT INSTRUCTIONS REMOTE ACTIVATOR Customer/Technical Services: 0049 7653 6890 Page 9 905045 Rev B ATMOS MEDAP Operator’s Manual...
-
Page 10: Operating Instructions
Activation Device port located on the rear of the Surgical Smoke Evacuator. For directions on using the Automatic Activation Device, please see instructions that accompany that product. Customer/Technical Services: 0049 7653 6890 Page 10 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 11: Set-Up And Operation
4. Clean the Surgical Smoke Evacuator with appropriate germicide prior to re-use and follow the indicated instructions for maintenance and installation of a new Filter. Customer/Technical Services: 0049 7653 6890 Page 11 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 12: Performance References
55.0 dBA Voltage Available 100/120 VAC, 220/240 VAC Frequency, auto sensed 50/60 Hz *For reference purposes only **Using a new 7/8 in (22 mm) tubing. Customer/Technical Services: 0049 7653 6890 Page 12 905045 Rev B ATMOS MEDAP Operator’s Manual... - Page 13 CISPR 11 that supplies buildings used for domestic purposes. Harmonic Emissions Class A Not applicable. IEC 61000-3-2 Voltage Fluctuations/ Class A Not applicable. Flicker Emissions IEC 61000-3-3 Customer/Technical Services: 0049 7653 6890 Page 13 905045 Rev B ATMOS MEDAP Operator’s Manual...
- Page 14 Power frequency magnetic fields should be at levels characteristic of a typical location in a (50/60 Hz) magnetic typical commercial or hospital environment. field IEC 61000-4-8 Customer/Technical Services: 0049 7653 6890 Page 14 905045 Rev B ATMOS MEDAP Operator’s Manual...
- Page 15 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Surgical Smoke Evacuator. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Customer/Technical Services: 0049 7653 6890 Page 15 905045 Rev B ATMOS MEDAP Operator’s Manual...
- Page 16 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structure, objects, and people. Customer/Technical Services: 0049 7653 6890 Page 16 905045 Rev B ATMOS MEDAP Operator’s Manual...
-
Page 17: Maintenance
Report serious incidents involving this device to Buffalo Filter at bf.customerfeedback@filtrationgroup.com or to your local distributor. In addition, European customers should also report to europe@emergogroup.com and the competent authority in your member state. Customer/Technical Services: 0049 7653 6890 Page 17 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 18: Customer Service
Distributor/Sales Representative. Available accessories: • Replacement Filters • Fluid Trap • Automatic Activation Device • Tubing • Reducer Fittings • Electrosurgical Surgical Smoke Pencils & Adapters Customer/Technical Services: 0049 7653 6890 Page 18 905045 Rev B ATMOS MEDAP Operator’s Manual... -
Page 19: Terms & Warranty
ATMOS’s expense and shall not be used or disclosed by purchaser for any purpose other than to install, operate, and maintain the Surgical Smoke Evacuator supplied. Customer/Technical Services: 0049 7653 6890 Page 19 905045 Rev B ATMOS MEDAP Operator’s Manual... - Page 20 Purchaser hereby consents to the jurisdiction of the New York Courts with respect to any controversy or dispute arising out of this agreement or the merchandise sold hereunder. Customer/Technical Services: 0049 7653 6890 Page 20 905045 Rev B ATMOS MEDAP Operator’s Manual...
- Page 21 ® FUMOVAC 700 Surgical Smoke Evacuator against any defects in material or workmanship. ATMOS will repair or replace (at ATMOS’s option) the same without charge, provided that routine maintenance as specified in this manual has been performed using replacement parts approved by ATMOS.
