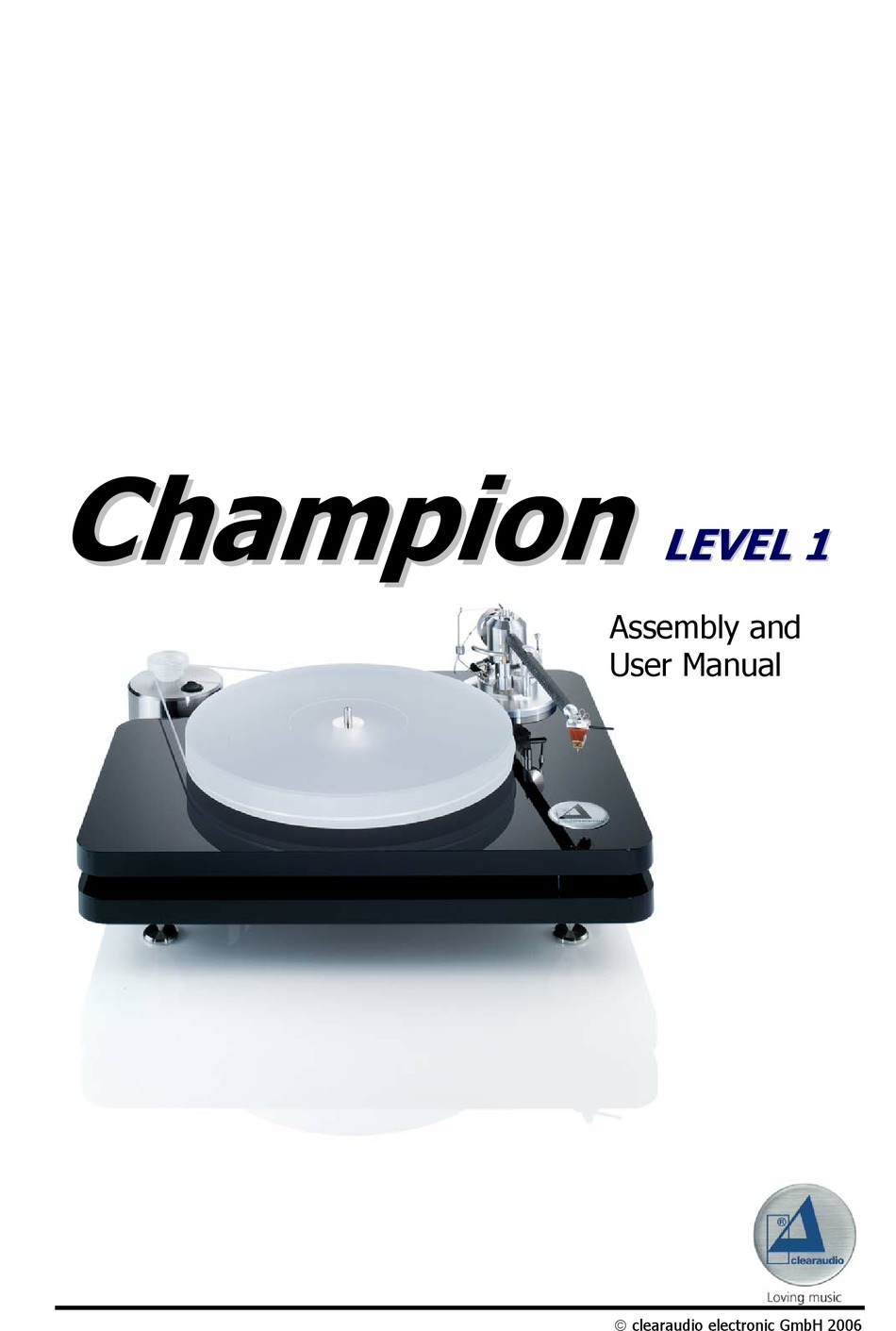

- Page 1 Assembly and User Manual Page 1 clearaudio electronic GmbH 2006...
-
Page 2: Table Of Contents
Please take a moment to read this owner’s manual to ensure correct set up, to avoid any possible damage and to learn how proper care of your clearaudio you many years of musical enjoyment and pleasure. -
Page 3: Champion Level

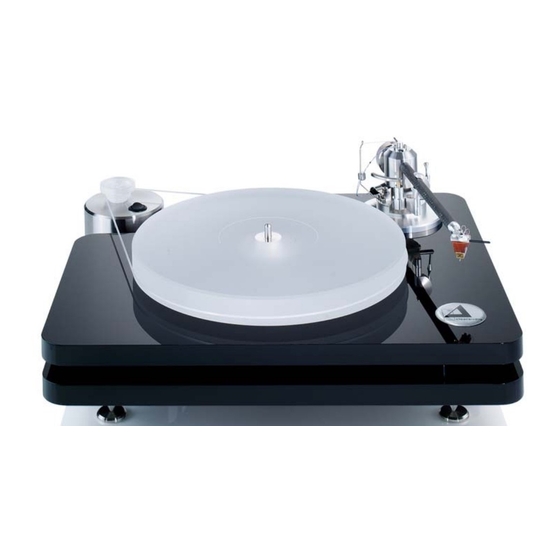

Level 1 turntable assembled and set up with the Unify tonearm. You can see the use of carefully selected materials and the resonance avoiding construction. Further the stand-alone Motor reduces any induced vibrations and resonances to the turntable chassis. Champion Level 1 assembled and set up 2. - Page 4 Champion acrylic chassis with mounted bearing Complete preassembled stand-alone motor Decuppeling device for the motor Flat Pads Three to be lawn under the Spikes Pulley made out of acrylic including fixing screws Grounding cable to ground the bearing screw clearaudio Clever Clamp...
-
Page 5: Assembly And Operation
3. Place the pulley on the motor spindle. The distance between the pulley and the motor housing should be approx. 1-2mm. Tighten the little screws inside the pulley with the aluminium screwdriver provided. Page 5 Champion Level 1 clearaudio electronic GmbH 2006 USER MANUAL... - Page 6 222mm, by turning the tonearm base. After that you can fix the six srews again. Page 6 Champion Level 1 clearaudio electronic GmbH 2006 USER MANUAL...
- Page 7 10 seconds. If the tension is too high, the motor could start to vibrate a little bit. If the tension is too loose, the turntable will not achieve a constant and correct speed.
-
Page 8: Speed Calibration
5. SPECIAL INSTRUCTIONS Please take the time to fill out the enclosed warranty card and return it to Clearaudio or your local distributor / dealer. If you do not return this card within 14 days of purchase the guarantee will only be for a period of two years from the date of purchase. -
Page 9: Service
If any service or repair on all clearaudio products is necessary, please contact your dealer / distributor or contact clearaudio directly. We will inform you about your nearest service location. -
Page 10: Technical Data
Patented, inverted bearing with polished ball inside Silicon acrylic, surface absolutely plain ±0,1 % Approx. 14 Kg, with motor Approx. 470 mm x 390 mm x 180 mm 5 Years (see chapter 5) clearaudio electronic GmbH 2006 Level 1 USER MANUAL...
