Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture, Customer Service Free Call
1800 351 084

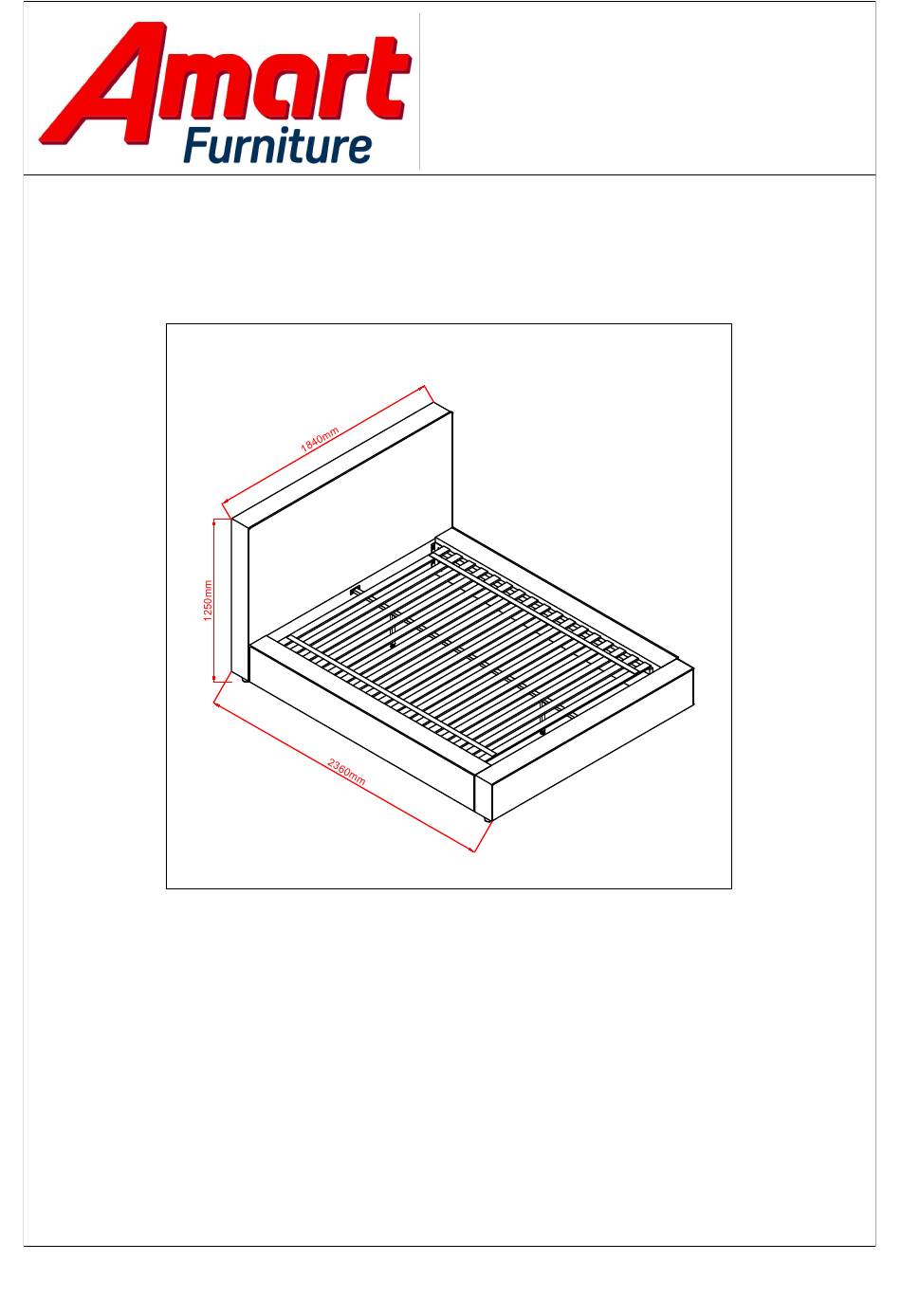

ASSEMBLY INSTRUCTION
TREASURE QUEEN BED
ITEM CODE 73930
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart furniture, Customer Service Free call 1800 351 084
1
73930
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture TREASURE 73930
Summary of Contents for Amart Furniture TREASURE 73930
- Page 1 ASSEMBLY INSTRUCTION TREASURE QUEEN BED ITEM CODE 73930 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST 1PCS 1PCS 1PCS 1PCS Left Side Rail Right Side Rail Footboard Headboard 2PCS 4PCS 1PCS 1PCS Centre Support leg Slat Centre slat rail M8X19mm x8pcs M5X100mm x1pcs M4X30mm x6pcs M8X35mm x8pcs M8X12mm x4pcs M12mm x1pcs Wench Flat washer Bolt Allen key Screw... - Page 4 STEP 1 Align the legs (6) to the screw hole of the headboard (1) and tighten it. STEP 2 Align the legs (6) to the screw hole of the footboard (4) and tighten it. 73930...
- Page 5 Attach Rails (2,3) to Metal brackets on Headboard (1) and STEP 3 Footboard (4), then tighten with allen key (B). STEP 4 Attach Centre slat rail(7)to Headboard and Footboard,using flat washer(A)and bolt(C)as shown below,then tighten with allen key(B). 73930...
- Page 6 Attach Centre support legs(5)to centre slat rail(7),using STEP 5 flat washer(A)nut(E),and bolt(C)as shown below,then tighten with allen key(B)and wench(F). Attach Slats (8) to side rails(2,3),using screw(D). STEP 6 73930...
- Page 7 ASSEMBLY IS COMPLETE CAUTION: ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE CENTRE SUPPORT LEGS TO BEND/BREAK. 73930...
-
Page 8: Spot Cleaning
Fabric Care and Maintenance REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: • Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •...
