Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture, Customer Service Free Call
1800 351 084

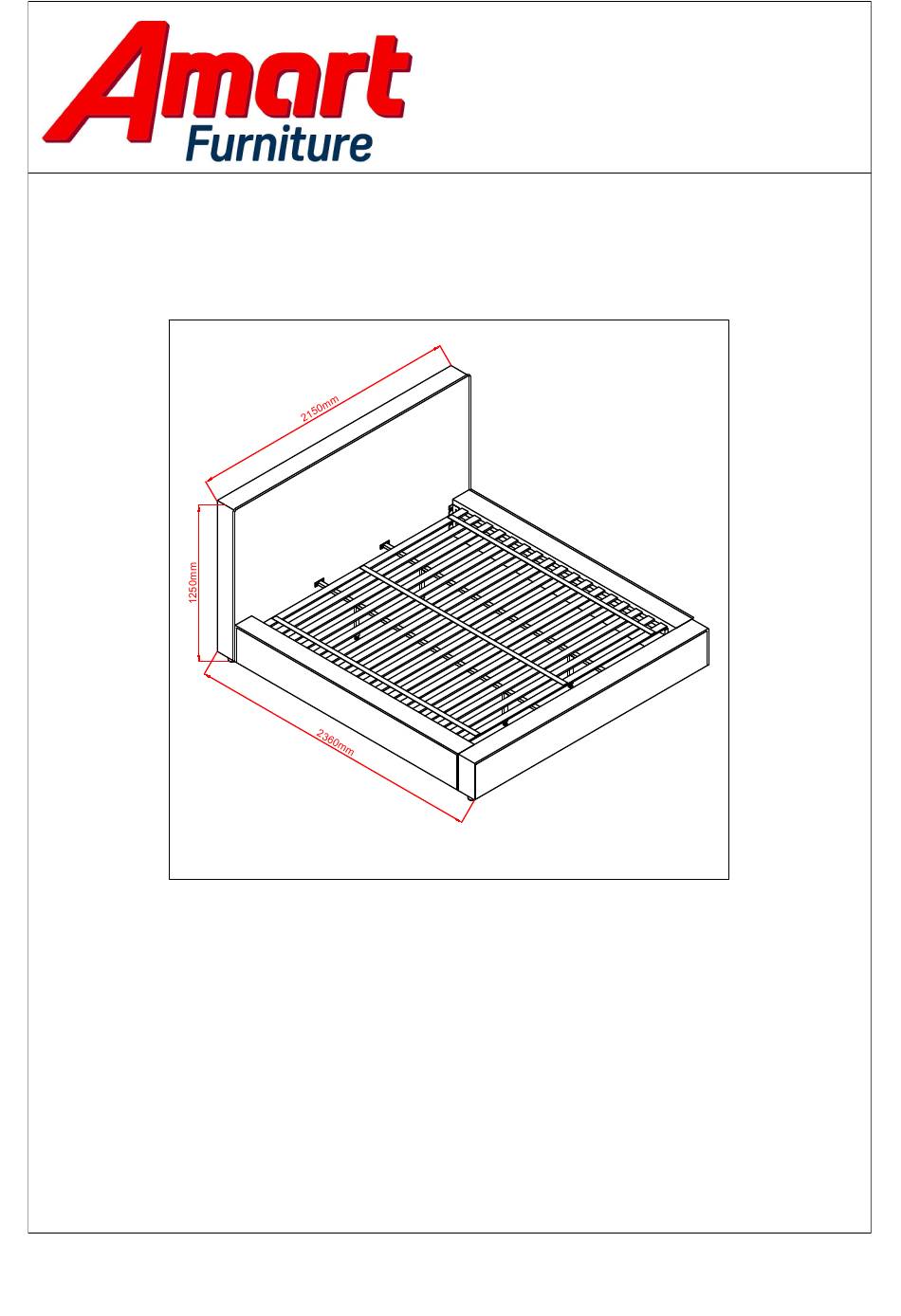

ASSEMBLY INSTRUCTION
TREASURE KING BED
ITEM CODE 73933
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart furniture, Customer Service Free call 1800 351 084
1
73933
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture TREASURE 73933
Summary of Contents for Amart Furniture TREASURE 73933
- Page 1 ASSEMBLY INSTRUCTION TREASURE KING BED ITEM CODE 73933 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST 1PCS 1PCS 1PCS 1PCS Footboard Left Side Rail Right Side Rail Headboard 4PCS 4PCS 2PCS 1PCS Centre Support leg Slat Centre slat rail M8X19mm x16pcs M5X100mm x1pcs M4X30mm x6pcs M8X35mm x16pcs M8X12mm x8pcs M12mm x1pcs Wench Flat washer Allen key Bolt Screw...
- Page 4 STEP 1 Align the legs (6) to the screw hole of the headboard (1) and tighten it. STEP 2 Align the legs (6) to the screw hole of the footboard (4) and tighten it. 73933...
- Page 5 STEP 3 Attach Rails (2,3) to Metal brackets on Headboard (1) and Footboard (4), then tighten with allen key (B). Attach Centre slat rail(7)to Headboard and Footboard,using STEP 4 flat washer(A)and bolt(C)as shown below,then tighten with allen key(B). 73933...
- Page 6 STEP 5 Attach Centre support legs(5)to centre slat rail(7),using flat washer(A)nut(E),and bolt(C)as shown below,then tighten with allen key(B)and wench(F). STEP 6 Attach Slats (8) to side rails(2,3),using screw(D). 73933...
- Page 7 ASSEMBLY IS COMPLETE CAUTION: ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE CENTRE SUPPORT LEGS TO BEND/BREAK. 73933...
- Page 8 Fabric Care and Maintenance REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: • Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •...
