Imported by Amart Furniture Pty Ltd,
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

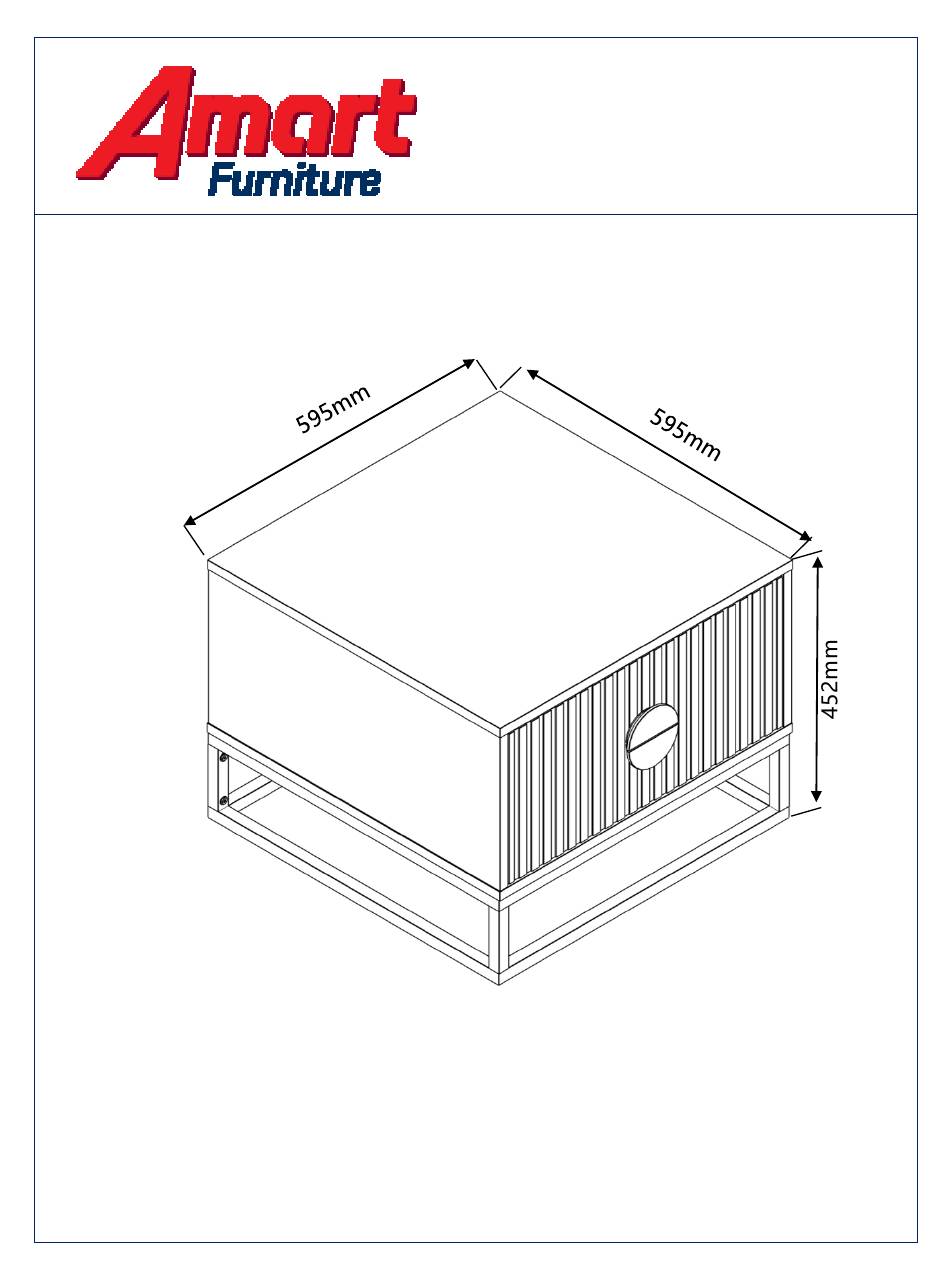

ASSEMBLY INSTRUCTION

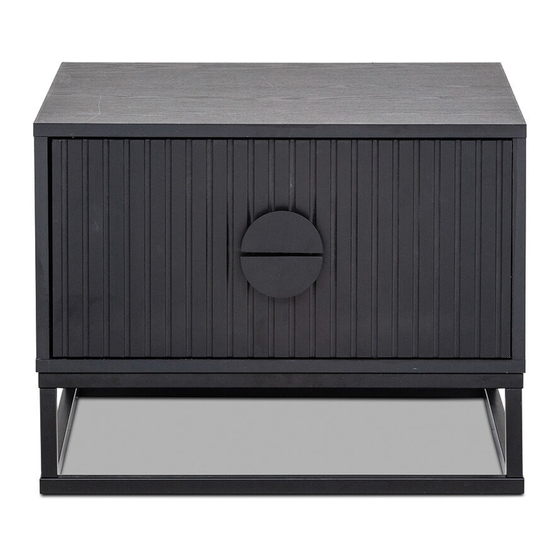

Valdis Lamp Table
ITEM CODE
73827
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
,Brisbane,
Qld, Australia.
1
ITEM CODE
73827
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture Valdis 73827
Summary of Contents for Amart Furniture Valdis 73827
- Page 1 ITEM CODE 73827 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, ,Brisbane, Qld, Australia.
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Drawer Handle Drawer Support Barr Bottom Board Support Bar Drawer Bottom Board Back Board Top Board Drawer Back Board Drawer Front Board Side Board Frame Drawer Side Board Frame Side Board Drawer Side Board ITEM CODE 73827... - Page 4 A. Ø15X12mm C. Ø8X40 D. M5X50 B. M6X39mm CX12 BX15 AX15 F. M3.5X15 E. M4X40mm FX10 I. L350mm J. L350mm K. L350mm L. L350mm M. M6X15mm MX12 ITEM CODE 73827...
- Page 5 STEP:1 1. Fix cam pin (B) to drawer front board (8) 2. Attach drawer side board (9)(10) drawer A. Ø15X12mm B. M6X39mm support bar (11) to drawer front board (8) with cam locks (A) 1. Put bottom board (12) into groove of board (8)(9)and (10).
- Page 6 STEP:3 E. M4X40 F. M3.5X15 J. L350mm L. L350mm 1. Attach the drawer back board (13) with screws (E) 2. Install runner(J)(L) to the bottom of drawer with screws(F). ITEM CODE 73827...
- Page 7 STEP:4 Fix handle (1) to the drawer front board (8) with screws (H) STEP:5 Insert dowel (C) to side board (4)(5) and back board (7) C. Ø8X40 CX12 ITEM CODE 73827...
- Page 8 STEP:6 I. L350mm F. M3.5X15 K. L350mm Install runner(I)(K) to the side board(4) (5) with screws (F) STEP:7 Fix cam pin (B) to the side board(4) (5) B. M6X39mm ITEM CODE 73827...
- Page 9 STEP:8 Attach the side board(4) (5) to the back board (7) with cam locks (A). A. Ø15X12mm STEP:9 Fix handle (1) to back board (7)with screws (H) ITEM CODE 73827...
- Page 10 STEP:10 Fix cam pin (B) to the top board (3) B. M6X39mm Attach the top board (3) to the body with cam locks(A) STEP:11 A. Ø15X12mm ITEM CODE 73827...
- Page 11 STEP:12 Attach the bottom board (6) to the body with the screws (D) D. M5X50 STEP:13 M. M6X15mm Attach frame (14) to the bottom board (6) with bolt (M) ITEM CODE 73827...
- Page 12 STEP:14 M. M6X15mm Fix support bar (2) to frame (14) with bolt (M) STEP:15 Attach frame (16) to the body with bolt (M) M. M6X15mm ITEM CODE 73827...
- Page 13 STEP:16 ASSEMBLY COMPLETE ITEM CODE 73827...
- Page 14 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
- Page 15 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
