ASSEMBLY INSTRUCTION

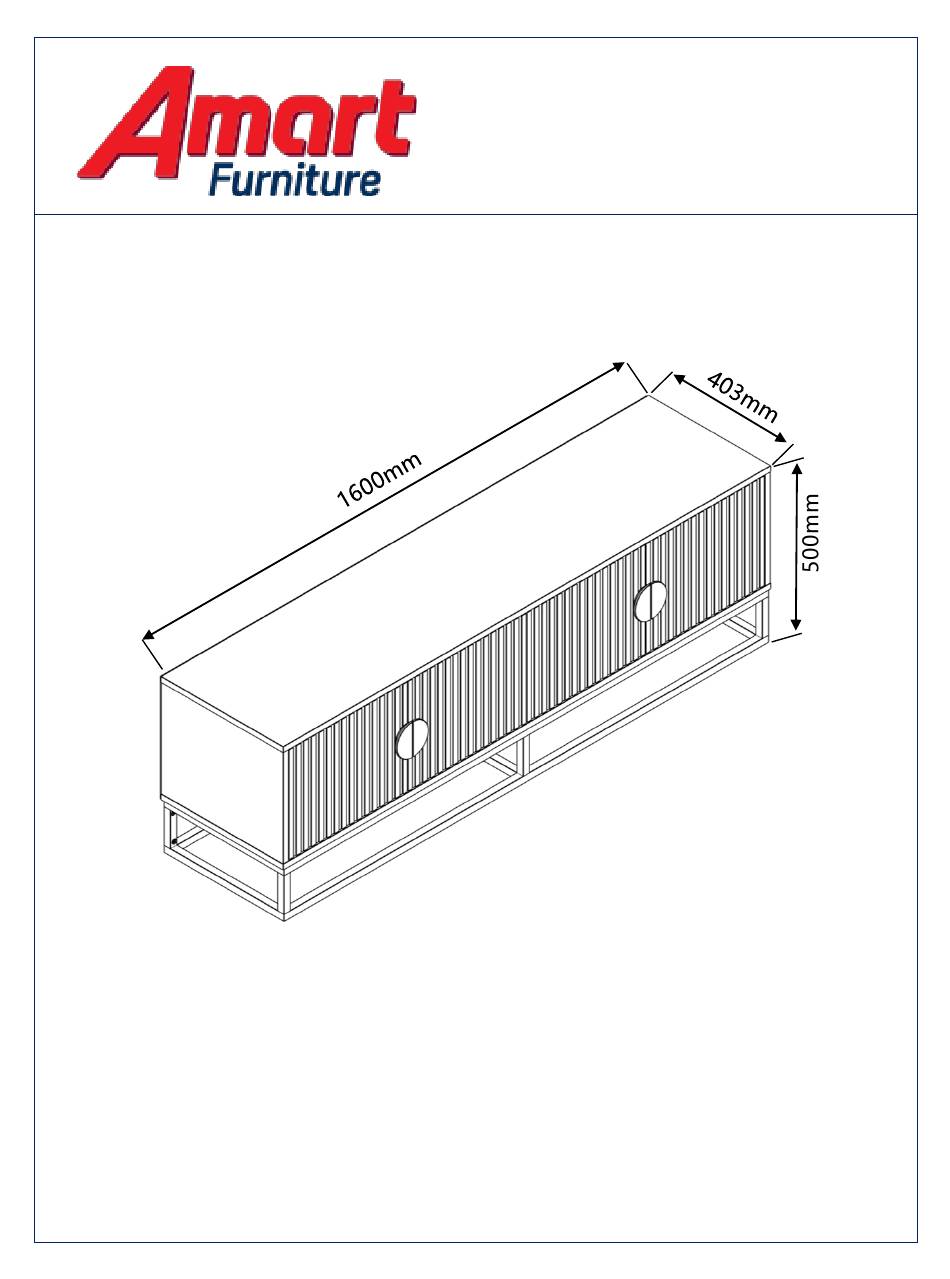

Valdis ETU BLK
ITEM CODE
73829
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
,Brisbane,
Qld, Australia.
1
ITEM CODE
73829
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture 73829
Summary of Contents for Amart Furniture 73829
- Page 1 ITEM CODE 73829 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, ,Brisbane, Qld, Australia.
-
Page 2: Before You Start
ALLOW 60 MINITES 2 PEOPLE REQUIRED together. However if you choose to use a power drill it must be used on LOW SPEED (LOW TORQUE) as too much pressure could damage the product ITEM CODE 73829... -
Page 3: Parts List
PARTS LIST Door Handle Middle Board Support Bar Back Board Left Door Top Board Right Door Side Board Side Board Frame Bottom Board Frame ITEM CODE 73829... - Page 4 A. Ø15X12mm C. Ø8X40 D. M5X50 B. M6X39mm CX12 F. M3.5X15 G. M4*14 E. M3.5*16mm GX24 FX40 M. M6X15mm MX16 ITEM CODE 73829...
- Page 5 STEP:1 C. Ø8X40 Insert dowel（C）to side board (4)、(5) and middle board (7) CX12 STEP:2 Fix door catch (I) to top board (3) with E. M3.5*16mm screw (E) ITEM CODE 73829...
- Page 6 STEP:3 Fix cam pin（B）to top board（3） B. M6X39mm STEP:4 Attach side board (4)(5) and middle board (7) to top board (3) with cam locks(A) A. Ø15X12mm ITEM CODE 73829...
- Page 7 STEP:5 D. M5X50 Attach bottom board (6) to the body with screws (D) STEP:6 Attach frame (11) to bottom board (6) M. M6X15mm with bolt (M) ITEM CODE 73829...
- Page 8 STEP:7 M. M6X15mm Fix support bar (2) to frame (11) with bolt (M) STEP:8 Attach frame (12) to the body with bolt (M) M. M6X15mm ITEM CODE 73829...
- Page 9 STEP:9 Attach back board (8) to the body with screws (G) G. M4*14 GX24 Fix stopper (J) to door board (9)(10) with screws (F) STEP:10 F. M3.5X15 ITEM CODE 73829...
- Page 10 STEP:11 F. M3.5X15 FX16 Fix hinge (K)(L) to door board (9)(10) with screws (F) STEP:12 Fix handle (1) to door board (9)(10) with screws (H) ITEM CODE 73829...
- Page 11 STEP:13 Attach door (9)(10) to the body with screws (F) F. M3.5X15 FX16 ITEM CODE 73829...
- Page 12 ASSEMBLY COMPLETE ITEM CODE 73829...
- Page 13 4. Make sure that the Mounting Plates are firmly attached to the wall and furniture and that the Wall Strap is snug. HARDWARE Mounting Plate x 2 Wall Strap x 1 Large Screw x2 Small Screw x2 TEM ICODE 73829...
- Page 14 finish damage if not cleaned immediately. • Use a clean, soft, dry, lint free absorbent cloth to clean your furniture. Do not use any detergent as they may contain ingredients that may react and damage the finish. TEM ICODE 73829...
