Amart Furniture Valdis 73828 Assembly Instruction Manual

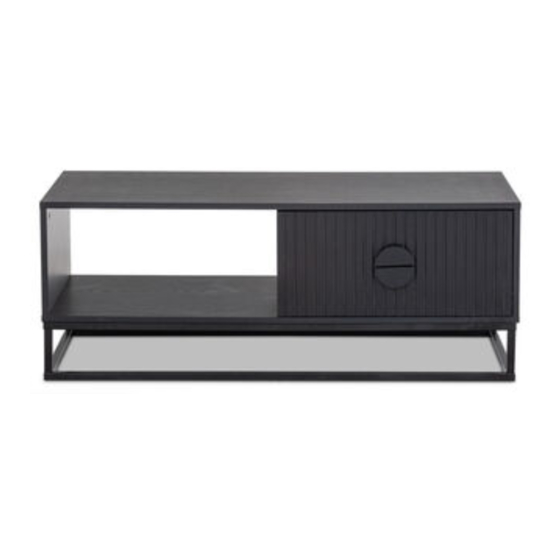

Coffee table
Hide thumbs

Advertisement

Quick Links

Download this manual
Imported by Amart Furniture Pty Ltd,
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

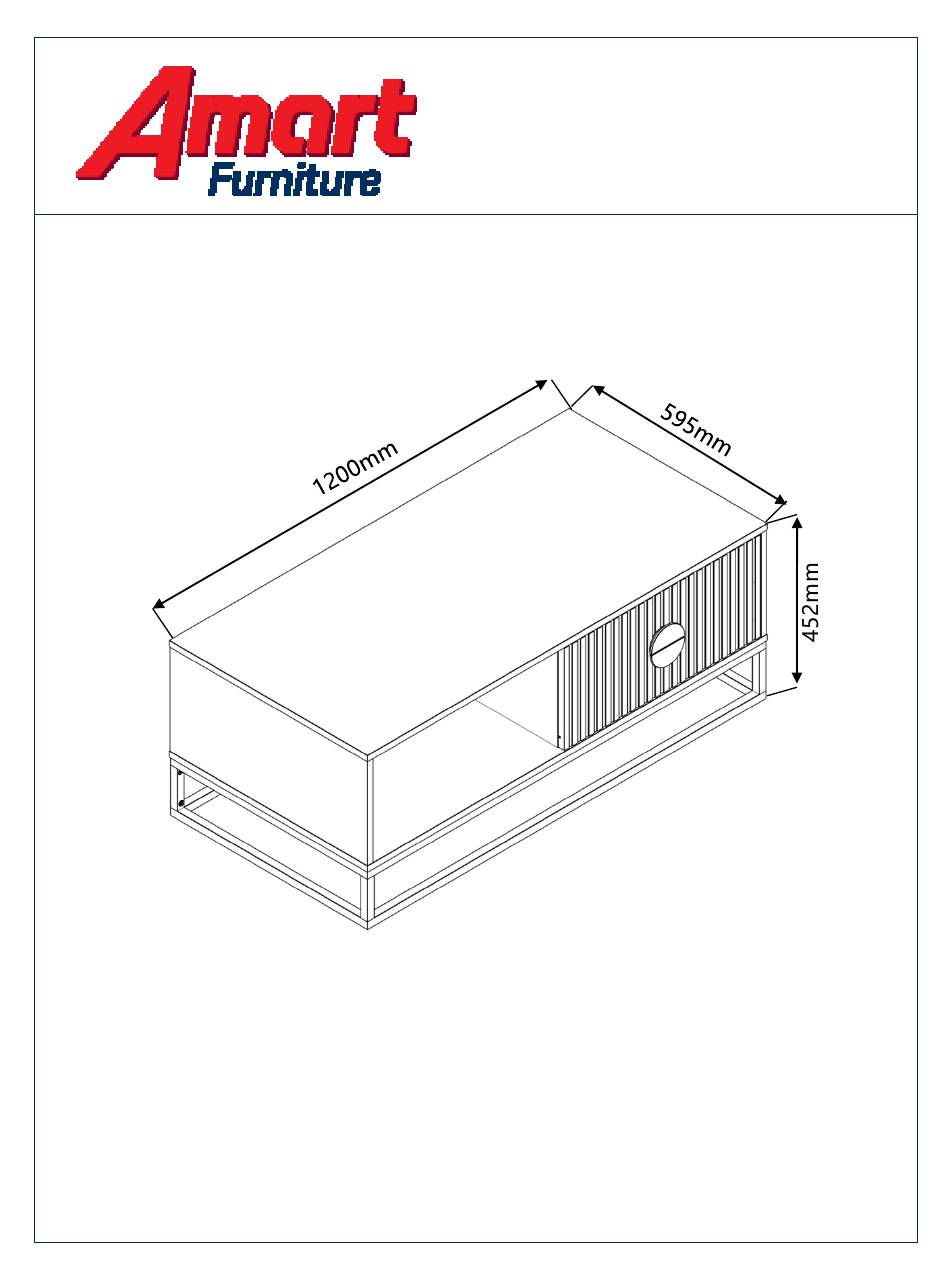

ASSEMBLY INSTRUCTION
Valdis Coffee Table
ITEM CODE
73828
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
,Brisbane,
Qld, Australia.
1
ITEM CODE
73828

Advertisement

loading
Need help?

Need help?

Do you have a question about the Valdis 73828 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amart Furniture Valdis 73828

Summary of Contents for Amart Furniture Valdis 73828

  • Page 1 ITEM CODE 73828 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, ,Brisbane, Qld, Australia.

  • Page 2: Before You Start

    PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST Middle Board Drawer Bottom Board Drawer Handle Support Bar Back Board Drawer Back Board Top Board Frame Drawer Front Board Frame Side Board Drawer Side Board Side Board Drawer Side Board Bottom Board Drawer Support Bar ITEM CODE 73828...
  • Page 4 A. Ø15X12mm C. Ø8X40 D. M5X50 B. M6X39mm CX16 BX18 AX18 F. M3.5X15 E. M4X40mm FX10 I. L350mm J. L350mm K. L350mm L. L350mm M. M6X15mm MX12 ITEM CODE 73828...
  • Page 5 STEP:1 1. Fix cam pin (B) to drawer front board A. Ø15X12mm B. M6X39mm (9). 2. Attach drawer side board (10)(11) drawer support bar (12) to drawer front board (9) with cam locks (A) 1. Put bottom board (13) into groove STEP:2 of board (9)(10)and (11).
  • Page 6 STEP:3 E. M4X40 F. M3.5X15 J. L350mm L. L350mm 1. Attach the drawer back board (14) with screws (E) 2. Install runner(J)(L) to the bottom of drawer with screws(F). ITEM CODE 73828...
  • Page 7 STEP:4 Fix handle (1) to the drawer front board (9) with screws (H) STEP:5 C. Ø8X40 Insert dowel (C) to side board (4)(5) middle board (7) and back board (8) DX16 ITEM CODE 73828...
  • Page 8 STEP:6 I. L350mm F. M3.5X15 K. L350mm Install runner(I)(K) to the side board (5) and the middle board (7) with screws (F) STEP:7 Fix cam pin (B) to the side board (5) and the back board (8) B. M6X39mm ITEM CODE 73828...
  • Page 9 STEP:8 Attach the side board (5) and the middle board (7) to the back A. Ø15X12mm board (8) with cam locks (A). STEP:9 Fix handle (1) to back board (8)with screws (H) ITEM CODE 73828...
  • Page 10 STEP:10 Fix cam pin (B) to the top board (3) B. M6X39mm STEP:11 A. Ø15X12mm Attach the top board (3) to the side board (4) and the body with cam locks(A) ITEM CODE 73828...
  • Page 11 STEP:12 D. M5X50 Attach the bottom board (6) to the body with the screws (D) STEP:13 Attach frame (15) to the bottom board M. M6X15mm (6) with bolt (M) ITEM CODE 73828...
  • Page 12 STEP:14 Fix support bar (2) to frame (15) with M. M6X15mm bolt (M) STEP:15 Attach frame (16) to the body with bolt (M) M. M6X15mm ITEM CODE 73828...
  • Page 13 STEP:16 ASSEMBLY COMPLETE ITEM CODE 73828...
  • Page 14 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
  • Page 15 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
