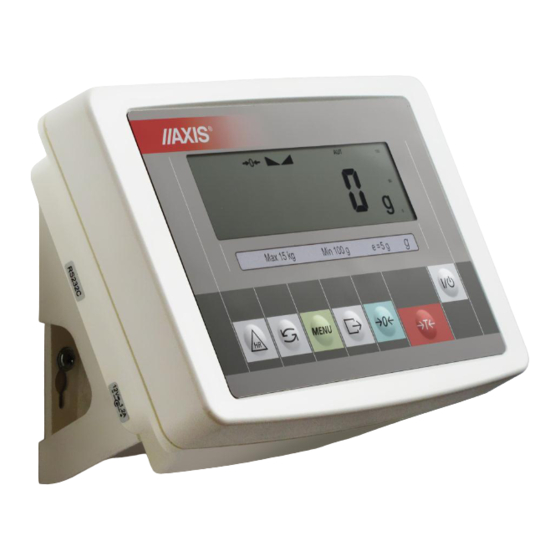

ME-01/P METER
Engineering documentation
FILE: 2016-04-19 DTR-ME-01-P-146 bC0109 GB
AXIS, 80-125 Gdańsk, ul.Kartuska 375B, www.axis.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME-01/P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis ME-01/P

Summary of Contents for Axis ME-01/P

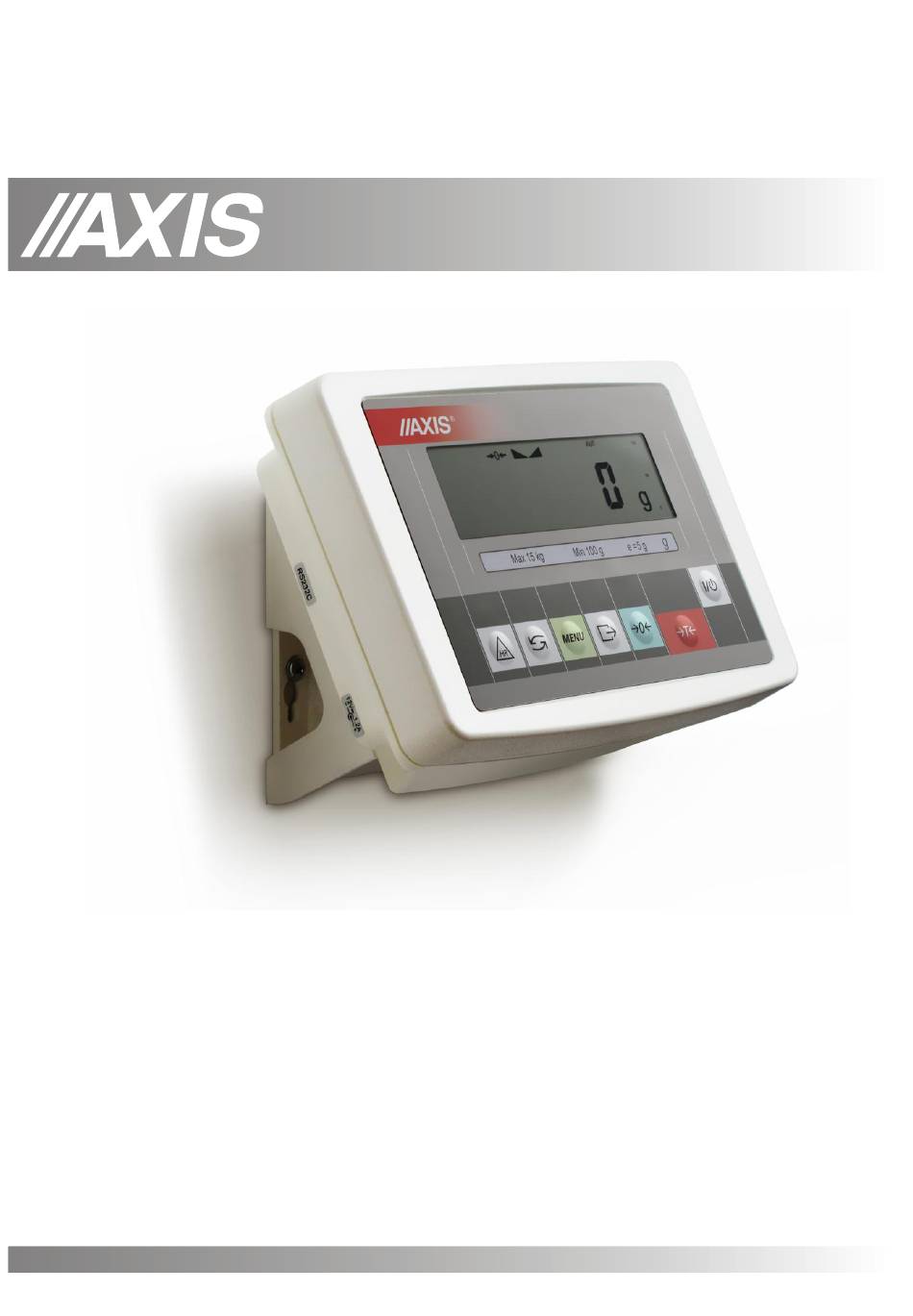

  • Page 1 ME-01/P METER Engineering documentation FILE: 2016-04-19 DTR-ME-01-P-146 bC0109 GB AXIS, 80-125 Gdańsk, ul.Kartuska 375B, www.axis.pl...

  • Page 2: Table Of Contents

    USER MANUAL ME-01 Content: General information ....................................3 Set ........................................... 3 Technical data ......................................4 Assembly ......................................... 5 Keys and indicators ....................................6 Security rules ......................................8 Rules proceeding with used up scales ..............................8 Assembly and connecting external devices ............................9 Meter external outputs ..................................

  • Page 3: General Information

    USER MANUAL ME-01 1. General information ME-01/P meter in housing made from antistatic plastic designed to build 1- or 2-range scales using extensometer force sensors. ME-01/P/LCD – antistatic plastic, 18mm display (LCD) ME-01/P/25 – antistatic plastic, 25mm display (LED) ME-01/P meters are used in platform scales produced by AXIS.

  • Page 4: Technical Data

    USER MANUAL ME-01 3. Technical data Meter type ME-01/P Number of verification plots <6000e (two-range work possibility) Internal resolution 1:16 mln Applied error fraction (p) Readout plot (d) 1, 2, 5, 10, ... (g, kg, t) Verification plot (e) arbitrary from 1, 2, 5, 10, ...

  • Page 5: Assembly

    USER MANUAL ME-01 4. Assembly Meter assembly ME-01/P Mounting system Mounting 2 wholes 5/10mm, spacing 104mm...

  • Page 6: Keys And Indicators

    USER MANUAL ME-01 5. Keys and indicators special function metrological threshold function zero stability nett weight indicator indicators indicator indicator indicator data scale keys Keys: switch-on / switch-off (standby),   " tare, menu position confirmation, next digit (when inscribing), ...
  • Page 7 USER MANUAL ME-01 LED display version: threshold function weighing zero stabilization net weight metrological indicators indicator indicator result data indicator Max= units indicators functions indicators scale keys - switch-on / switch-off (standby),   " - tare, menu position confirmation, next digit (when inscribing), ...

  • Page 8: Security Rules

    USER MANUAL ME-01 6. Security rules To avoid electrical shock, scale or other connected peripheral devices damage, it is necessary to follow the security rules below.  To supply the scale use power outlet with protective contact (not for scales with external feeder). ...

  • Page 9: Assembly And Connecting External Devices

    Installation Guide delivered with the indicator (other brochure). 2. The manufacturer gives a full guaranty for ME-01/P indicator only when the indicator was mounted by AXIS Sp. z o.o. In other cases the guaranty obligation is taken over by the final contractor of the weighing device.

  • Page 10: Meter External Outputs

    USER MANUAL ME-01 Diagram of common wires and shields in the platform balances: Caution: The galvanic connection of sensors and adder housing is necessary. 9. Meter external outputs RS232C TxD (transmission) RxD (reception) enclosure Feeder socket...

  • Page 11: Transmitter Connection

    There are opto-isolators of an open collector type with 100mA / 24V maximum load. They can be connected directly to transmitters inputs or to MS3K/P board offered by AXIS separately or in ST 3K/P control box (3 transmitters, own power supply).

  • Page 12: External Key Connection

    USER MANUAL ME-01 Outputs are adapted for direct connection RM96P transmitter of DC24V input voltage and AC250V 8A output. Transmitter’s coil has to be secured with diode e.g. 1N4148. It is recommended to use MS 3K/P electronic board (3 transmitters of RM96P type –...

  • Page 13: 4-20M Connection

    USER MANUAL ME-01 External keys connecting: Standard Option with interface Scale External keys External keys Scale +24V +24V MENU MENU transoptor 9.3 4-20m connection Way of connecting analogue output 4-20mA (0-20mA, 0-10V): Scale External device +4-20mA Attention: Rwe<510Ω -4-20mA...

  • Page 14: Connecting A Computer, Printer Or Label Printer

    If the scale is equipped with two serial joints (interfaces) Print and SErIAL function is set independently for both interfaces. If scale cooperates with a computer then the computer must have a special program. Dedicated programs are also offered by AXIS. Needed drivers and instructions can be found on the CD supplied with Axis scales.

  • Page 15: Detailed Long Protocol Description

    02h scale number command. To log the scale out use 03h command. For example: Using a program to test RS232 interface ( program is available in www.axis.pl / programy komputerowe ) for scale number 1 please write: $0201 to log in, then SI, and write: $03 to close communication.
  • Page 16 KomputerWaga: SM D1...DN CR LF (53h 4Dh D1...DN 0Dh 0Ah), gdzie: D1...DN – threshold value, maximum 8 characters WagaKomputer: without response. Connecting cable WK-1 (scale – computer / 9-pin interface): SCALE COMPUTER Connection cable WD-1 (connects scale with AXIS printer): SCALE KAFKA PRINTER...

  • Page 17: Detailed Epl Protocol Description

    USER MANUAL ME-01 Setting of internal switches of AXIS printer: SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8 9.6 Detailed EPL protocol description Transmission parameters: 8 bits, 1 stop bit, no parity, baud rate 9600bps,  After using key in scale: ...

  • Page 18: Optional Interfaces

    USER MANUAL ME-01 Optional interfaces External devices connecting options: RS232C RS232C RS485 Wi-Fi PEN-01 4-20mA (0-10V) Notes Printer Label pr. Barcode reader Printer Label pr. Barcode reader Printer Network Label pr. Network Barcode Network reader Printer Network Label pr. Network Barcode Network reader...

  • Page 19: General Rules

    USER MANUAL ME-01 General rules 1. Before each measurement make sure that zero indicator is displayed. If zero indicator does not displayed or “----“ communicate appears, press 0 key and wait until zero indication and zero indicator appears. 2. The scale is equipped with a tare equal to its range. To tare the scale press T key (left or right). Storing a tare value does not extend measuring range, but only subtracts it from a load placed on a pan.

  • Page 20: Balance Checking And Adjustment

    USER MANUAL ME-01 Balance checking and adjustment It is advised to check scale indication accuracy before and after series of measurement using any load with known weight. To check the scale with legal verification use a calibration weight with valid calibration certificate. In case permissible error is exceeded it is advised to contact the nearest service to calibrate the scale.

  • Page 21: Start-Up

    USER MANUAL ME-01 Start-up Leave the pan empty, plug a scale to the mains with a ground contact The scale proceeds with following start-up actions: Display test. Meter type displaying Program version The scale is now ready to work. Attention: Displaying program version means positive result of all tests.

  • Page 22: Weighing With Tare

    USER MANUAL ME-01 Weighing with tare   If the scale is not loaded and indicator   doesn’t indicate, press key.   Zero indication and indicator mean that the scale is ready to work. After putting container (package) tare the scale ...

  • Page 23: Scale Menu

    USER MANUAL ME-01 Scale menu All scales except for basic metrological functions: weighing and taring, have many special functions and configuration options. In order to ease using functions user can create his own (personalized) menu. Creating personalized menu: In „out of the box” scale after pressing MENU key only SEtuP option (it contains all configuration options) is available.

  • Page 24: Menu Navigation Rules

    USER MANUAL ME-01 Menu navigation rules Choosing menu options: First position of scale menu shows up after pressing Menu key. The position is displayed for about 7 seconds and then the scale sequentially displays next menu positions. Choosing menu position (option) is done by ...
  • Page 25 USER MANUAL ME-01 key working method:  During standard weighing key is used to  switch between net and gross indication. When special function e.g. PCS is turned on, using key enables to go back to standard  weighing mode. Sign „o”...
  • Page 26 USER MANUAL ME-01 HR key working method: During normal weighing temporary (5s) readout resolution increase is possible. Return normal indication made automatically. Inscribing numerical values: Inscribing numerical values is needed in some special functions e.g. tArE function requires to inscribe tare values. Keys: 0...
  • Page 27 USER MANUAL ME-01 Menu diagram: MENU (PCS) (totAL) - personalized function menu created using SEtUP / MEnu - settings SEtUP - creating menu (” “- added to menu) MEnu - choosing product Prod ( ) o ( ) o - choosing user USEr - pieces counting function - actual unit selection...
  • Page 28 USER MANUAL ME-01 - serial ports settings settings SErIAL - port - 1 Port-1 - transmission speed (1200, ... ,115 200 bps) bAUd - bits quantity (7 or 8) bItS - parity control PArItY - transmission type (Stab, no StAb, Auto,Cont.,rEMoVE) SEndInG - protocol (LonG, EPL, EPL_A, EPL-d, PEn-01) Prot...
  • Page 29 USER MANUAL ME-01 - turn on/off accumulator charging (if the scale is equipped with accumulator) (bAttEry) - automatic turning off - saving accumulator power (as above) (AUto OFF) - scale start zero inscribing (factory zero) (ZEro) - restore default settings for all options dEFAULt - options only for service SErVICE...

  • Page 30: Scale Setup (Setup)

    USER MANUAL ME-01 Scale setup (SEtUP) SEtUP contains all options used for setting scale work mode: MEnu – creating personalized user menu  CALIb – scale sensitivity calibration  AutoZEro(ing) – self-maintaining zero indication  (unloaded scale) UnIt – weight unit selection ...

  • Page 31: Scale Calibration (Calib)

    USER MANUAL ME-01 17.1 Scale calibration (CALIb) Press MENU key.   Press key when CALIb function appears. The following options will be displayed: -CAL on – calibration with external recommended standard of mass (see technical data). -CAL StP – calibration with external weight, confirmation of succesive steps - MENU key, out –...

  • Page 32: Autozeroing Function (Autozer)

    USER MANUAL ME-01 17.2 Autozeroing function (AutoZEr) When the function is activated, the scale automatically ensures stable zero indication if the pan is empty or if zero indication was   acquired by pressing key. To turn on the function use MENU key and using ...

  • Page 33: Weight Unit Selection (Unit)

    USER MANUAL ME-01 17.3 Weight unit selection (UnIt) The function allows selecting weighing unit: - CarAt (1 ct= 0,2 g) - carat, - MGrAM (1mg=0,001g) milligram, - KGrAM (1kg=1000g) kilogram, - Pound (1 lb=453,592374g) English pound, - OunCE (1oz=28,349523g) - ounce, - OunCEt(1ozt=31,1034763g) pharmaceutical ounce, - GrAIn (1gr=0,06479891g) - grain - PennYW (1dwt=1,55517384g) jewellery mass unit,...

  • Page 34: Serial Port Parameters Setting (Serial)

    USER MANUAL ME-01 17.4 Serial port parameters setting (SErIAL) function allows setting independently communication parameters of both of serial ports Port-1 and Port-2 (executed in RS232C, RS485, USB or LAN standard): - transfer protocol (Prot): LonG – cooperation with printer or computer, EPL –...

  • Page 35: Printout Configuration (Print)

    USER MANUAL ME-01 17.5 Printout configuration (PrInt) Function is used for printing additional information stored in scale memory, weighed product identification data and scale operator id. That information is inscribed using scale keys or scanner. After entering selected port (scale can have two ports) user may activate printout positions: - HEAdEr –...
  • Page 36 USER MANUAL ME-01 Sample printout during normal weighing (all printout positions deactivated): 20.07 kg 20.04 kg 20.04 kg Sample printout during normal weighing with clock option (all printout positions deactivated): 20.07 kg 2012-11-08 10:01 20.04 kg 2012-11-08 10:01 20.04 kg 2012-11-08 10:01 Sample printout during normal weighing ( some printout positions activated): BA30 MAX: 30kg e=d=0.01kg...

  • Page 37: Setting Backlight Function (B_Light)

    USER MANUAL ME-01 17.6 Setting backlight function (b_LIGHt) The function is used for choosing the work mode of scale display backlight: - b_L OFF – switch backlight off, - b_L on – switch backlight permanently on, - b_L ECO – switch off after 30 seconds of inactivity (no load changes and no key operation), - b_L bAt –...

  • Page 38: Analog Out Configuration (Analog)

    USER MANUAL ME-01 17.7 Analog out configuration (AnALoG) This option enables to set-up analog out (4-20mA or 0-10V) working method used e.g. in PLC regulators: AnG rnG – inscribing Max value AnG CFG – working mode configuration (PLUS – workmode for only positive values, MinuS – only for negative values, both –...

  • Page 39: Entering Reference Zero Value (Zero)

    USER MANUAL ME-01 17.8 Entering reference zero value (ZErO) Note: This function is enabled in non-legalized scales only. ZEr0 function allows entering new value of reference zero (value referred to empty pan) without need of contacting with authorised service centre. Press MENU key.

  • Page 40: Special Functions Description

    USER MANUAL ME-01 Special functions description All scales besides basic metrological functions: weighing and taring, have a set of special functions. Depending on meter type functions set differs. Below a list of functions available in standard ME-01 type meters: Products data base (Prod), ...

  • Page 41: Products And Users Database (Prod I User)

    This way created database, saved in *.csv extension with semicolons can be send to scale using Scale Database software and scale’s serial interface. Scale Database is available on our webpage www.axis.pl/en. Database and possibility to cooperate with external devices: printer, label printer, barcode reader and computer enables to built product identification and product archiving systems.
  • Page 42 USER MANUAL ME-01 Inscribing data to base Prod and USEr options enables adding and deleting product and user data. For products database available options are: - Prod Id – searching for product in database by inscribing (or scanning) id number or barcode, - ProdCLr (shows up if product was selected earlier) –...
  • Page 43 USER MANUAL ME-01 Users database is edited by similar function named USEr and consists of several options: - USEr Id – user identification number, - USErCLr (shows up if user was selected earlier) – turns off actual user selection, - USEr nA – user name (inscribed from PC or scanner), - Prn_U –...
  • Page 44 USER MANUAL ME-01 Weighing results and data transmission from scale to computer or to printer To fully use database capabilities other options must also be used: SeriaL, LabeL (for label printer) and Print. Serial option enables to select proper transmission protocol for each port. Thereby label printer can work independently.

  • Page 45: Pieces Counting Function (Pcs)

    USER MANUAL ME-01 18.2 Pieces counting function (PCS) This function enables to count identical pieces, e.g. turnbuckles or buttons. A measurement is performed in two phases: - first phase - single piece weight calculation on the basis of defined pieces amount (5, 10, 20, 50, 100, 200 or 500 pieces), - second phase –...

  • Page 46: Percentage Weighing Function (Perc)

    USER MANUAL ME-01 18.3 Percentage weighing function (PErC) 100% This function allows displaying weighing result in percents. A measurement is performed in two phases: - first phase – weighing a reference sample (100%), - second phase – measuring specific sample as a percentage of the reference sample.

  • Page 47: Label Choosing Function (Label)

    USER MANUAL ME-01 18.4 Label choosing function (LAbEL) This function is used in scale with EPL (SErIAL function) data protocol. This protocol enables label printout with actual scale indication and chosen data from PrInt special function (variable data), for example date and time.

  • Page 48: Weighing Animals Function (Loc)

    USER MANUAL ME-01 18.5 Weighing animals function (LOC) The function allows weighing animal moving on the scale. Press MENU key.   When LOC function is displayed press key. following options appear display successively: - LOC oFF – leave the function, - LOC on –...

  • Page 49: Maximum Value Indication Function (Up)

    USER MANUAL ME-01 18.6 Maximum value indication function (UP) This function allows holding maximum (or minimum) value that is indicating at the moment. Before measurement scale should be tared. Function has following options: -UP oFF – function off, -HIGH – holding maximum value, -LOW –...

  • Page 50: Force Measuring Function (Newton)

    USER MANUAL ME-01 18.7 Force measuring function (nEWton) Function activation causes displaying result in force units (N). Press MENU key.   Using key choose NEWto function. Function has several options: - nEW oFF – function off, - nEW on – measurement in Newtons, - ArM –...

  • Page 51: Total Weight Function (Total)

    USER MANUAL ME-01 18.8 Total weight function (totAL) The function allows calculating total weight for series of measurements, which can be greater than scale capacity. It allows calculating total weight as well as average value. Press MENU key.   When totAL is displayed press key.
  • Page 52 USER MANUAL ME-01 To leave the function with clearing total register, select totAL function from menu and choose tot oFF option. Scale prints the communicate informing about clearing registers. The form of standard receipt (measurement number and weight) after each measurement: Print configuration option (chapter 17.5) enables to extend standard receipt form.

  • Page 53: Checkweighing Function (Thr)

    USER MANUAL ME-01 18.9 Checkweighing function (thr) This function allows comparing weighing result with two programmed reference values: lower and upper threshold. Comparison result is signalled with indicators (MIN, OK, MAX) and sound signal generated when threshold values are exceeded. If comparison result is: - smaller than zero threshold –...
  • Page 54 USER MANUAL ME-01 Operation sequence:   Press MENU key and choose thr pressing key. The following options are displayed successively: - thr oFF – deactivate the function, - thr on – activate the function, - thr Prn – check last threshold values (press key several times), - thr CFG –...
  • Page 55 USER MANUAL ME-01 Relays connection diagram: Imax < 25mA Relays output is the open collector transoptor output with load capacity 25mA / 24V. Transmitter inputs must be protected with diodes, e.g. 1N4148. It is advised to use MS3K/P electronic board (sold separately), consisting of RM96P transmitters, with DC24V input voltage and AC250V, 3A output.

  • Page 56: Setting Date And Time Function (Date)

    USER MANUAL ME-01 18.10 Setting date and time function (dAtE) The function allows setting current date and time of scale internal clock and mode of its use. The function has the following options: - dAt oFF – deactivate date and time during printout of current weighing result, - dAt on –...

  • Page 57: Radio Communication Channel Choice Function (Rf Chn)

    USER MANUAL ME-01 18.11 Radio communication channel choice function (rF CHn) Function enables choosing radio communication channel between the scale and a pilot. In scale and in pilot the same radio channels must be chosen. Function should be used when communication is disturbed by other devices that use the same communication channel.

  • Page 58: Charging Accumulators Function (Battery)- Option

    USER MANUAL ME-01 18.12 Charging accumulators function (bAttErY)- option bAttErY function allows switching on or off charging accumulators during work with feeder and checking their power level. The function has the following options: - bAt OFF – charging off (option required if ordinary batteries are used !!!), - bAt on –...

  • Page 59: Automatic Switching Off The Scale Function (Autooff)

    USER MANUAL ME-01 18.13 Automatic switching off the scale function (AutoOFF) The function is helpful in scales supplied from accumulators. The function causes scale to switch off automatically. Press MENU key.   When AutoOFF is displayed press key. The following options appear successively on display: - AOF oFF –...

  • Page 60: Statistical Calculations Function (Stat)

    USER MANUAL ME-01 18.14 Statistical calculations function (StAt) This function evaluates from series of measurements (max 1000) statistical parameters of weighting process. Adding successively measurements to register is automatic and it occur after the scale is loaded and its indications stabilize. After each loading printout is made with: number of measurements, result, date and time (if clock is installed and the function is activated).
  • Page 61 USER MANUAL ME-01 Order of operations: Press MENU key.   When StAt is displayed press key. The following options are displayed: - StA Prn – monitoring and printout of statistical data, - StA oFF – deactivate function, - StA –...
  • Page 62 USER MANUAL ME-01 Pressing key printouts estimated values and histogram : Nominal - nominal value, Tolerance - accepted value in percentage. N - number of sample IN TOL. – number of samples in toleranc -TOL – amount of measurements under allowable lower value +TOL –...

  • Page 63: Paperweight Calculation (Pap)

    USER MANUAL ME-01 18.15 Paperweight calculation (PAP) This function enables to calculate paperweight of 1m of paper basing on samples of known area. For quick access, the function is accessible directly by pressing MENU key. The balance must be tared just before the measurement.

  • Page 64: Troubleshooting And Maintenance

    USER MANUAL ME-01 Troubleshooting and maintenance 1. The scale should be kept clean. The balance must be kept clean and protected from dust, and aggressive liquids. In order to clean it is recommended to wipe the scale with cloth soaked in soapy water and then dry.

  • Page 65: Declaration Of Conformity Ce

    USER MANUAL ME-01 Declaration of Conformity CE The last two digits of the year in which the CE marking was affixed: 16 AXIS Spółka z o.o. 80-125 Gdańsk, ul. Kartuska 375B confirm with all responsibility that weighing meters: ME-01 marked with CE mark comply with the following: 1.
