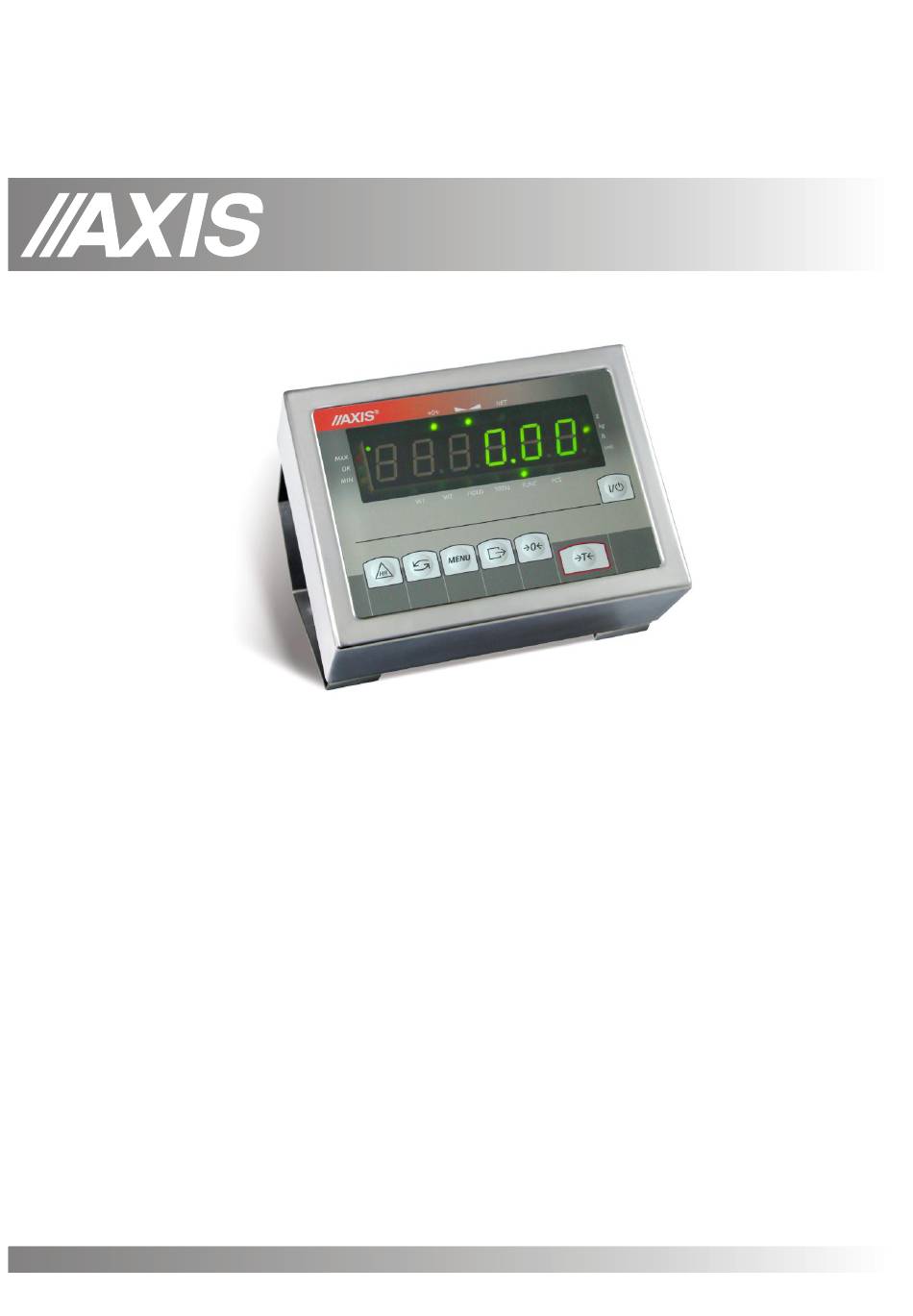

- Page 1 ME-01 METER Engineering documentation FILE: 2016-04-19 DTR-ME-01-146 bC0109 GB AXIS, 80-125 Gdańsk, ul.Kartuska 375B, www.axis.pl...
-
Page 2: Table Of Contents
USER MANUAL ME-01 Content: General information ....................................3 Completeness ......................................5 Technical data ......................................6 Assembly ......................................... 7 Keys and indicators ....................................8 Security rules ......................................10 Rules proceeding with used up scales ..............................10 Assembly and connecting external devices ............................11 Meter external outputs .................................. -
Page 3: General Information
USER MANUAL ME-01 1. General information The ME-01 meter is ready subassembly, designed for single- or double-range balances, using the extensometer force sensors. Meter versions: ME-01/A/18 (LED) – housing made of painted aluminum, – LED18mm display, ME-01/A/LCD – housing made of painted aluminum, –... - Page 4 USER MANUAL ME-01 ME-01/N/18 (LED) – housing made of stainless steel, – LED18mm display, ME-01/N/LCD – housing made of stainless steel, – LCD18mm display, ME-01/N/25 (LED) – housing made of stainless steel, – wyświetlacz LED25mm,...
-
Page 5: Completeness
Each meter has the set of special functions: automatic zeroing, pieces counting, comparing with threshold values, etc., which may be available for the user or not – according to the order. In the further manual part the ME-01 meter operation is described, as the part of complete balance. 2. Completeness A standard set consists of: 1. -
Page 6: Technical Data
USER MANUAL ME-01 3. Technical data Parameter ME-01/A ME-01/N ME-01/N/25 Destination to III class scales one and two-ranged with verification units number n 6000 Max verification units number 6000 Internal resolution 1:16 777 216 Power supply AC: 230V 50Hz DC: 12V or AC: 230V 50Hz accumulator 6V ÷... -
Page 7: Assembly
USER MANUAL ME-01 4. Assembly Assembly ME-01/A ME-01/N ME-01/N/25 Meter grip assembly 3 ways to mount the meter to wall Mounting to wall or 2 holes Ф5, 2 holes Ф5, 2 holes Ф5, spacing desktop spacing 59mm spacing 160mm 203mm... -
Page 8: Keys And Indicators

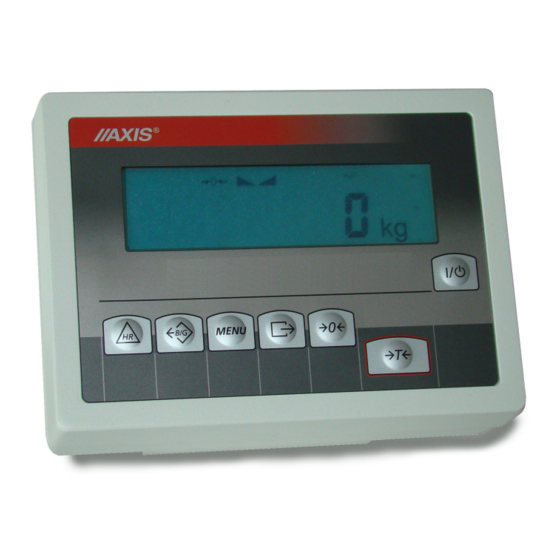

USER MANUAL ME-01 5. Keys and indicators LCD display version: weighing zero stabilization net weight metrological result indicator indicator indicator data Max= indicator scale keys Keys: switch-on / switch-off (standby), " tare, menu position confirmation, next digit (when inscribing), ... - Page 9 USER MANUAL ME-01 LED display version: zero stabilization weight metrological net weight result indicator indicator indicator data Max= scale keys klawisz - switch-on / switch-off (standby), " - tare, menu position confirmation, next digit (when inscribing), ...
-
Page 10: Security Rules
USER MANUAL ME-01 6. Security rules To avoid electrical shock, scale or other connected peripheral devices damage, it is necessary to follow the security rules below. To supply the scale use power outlet with protective contact (not for scales with external feeder). -
Page 11: Assembly And Connecting External Devices
Installation Guide delivered with the indicator (other brochure). 2. The manufacturer gives a full guaranty for ME-01 indicator only when the indicator was mounted by AXIS Sp. z o.o. In other cases the guaranty obligation is taken over by the final contractor of the weighing device. - Page 12 USER MANUAL ME-01 EXC- black IN+ green IN- white REF+ brown REF- yellow 3. Connect the external devices cables to the meter sockets. All devices should be powered from the same line (phase) 230V. Diagram of common wires and shields in the platform balances:...
-
Page 13: Meter External Outputs
USER MANUAL ME-01 9. Meter external outputs ME-01 meter in aluminium housing: RS232C RxD (receive) Feeder Extensometer RS232C WY TxD (transmission) mass housing 12V 1,2A WY (option) P1 (threshold I) P2 (threshold 2) P3 (threshold ) housing ground... - Page 14 USER MANUAL ME-01 ME-01 meter in stainless steel housing: RS232C housing Feeder Extensometer RS232C Power unit 12V Ground Separate ground connection (scales in stainless steel version) must be connected using additional conductor. Extensometers are connected permanently.
-
Page 15: Transmitter Connection
There are opto-isolators of an open collector type with 100mA / 24V maximum load. They can be connected directly to transmitters inputs or to MS3K/P board offered by AXIS separately or in ST 3K/P control box (3 transmitters, own power supply). -
Page 16: External Key Connection
The input of external keys allows to place (make double) selected scale keys into control box or operator’s workstation. As a standard the input is taken out with a wire for direct connect to a control panel. ME-01 indicators can be equipped with external key interfaces (as an option on demand). -
Page 17: 4-20M Connection
USER MANUAL ME-01 External keys connecting: Standard Option with interface Scale External keys External keys Scale +24V +24V MENU MENU transoptor 9.3 4-20m connection Way of connecting analogue output 4-20mA (0-20mA, 0-10V): Scale External device +4-20mA Attention: Rwe<510Ω -4-20mA... -
Page 18: Connecting A Computer, Printer Or Label Printer
Computer must have a special program for cooperation with data from a scale. Dedicated programs are also offered by AXIS. Except RS232C joint, the scale can be equipped with USB or Wi-Fi interface. Needed controllers and instruction can be found on a CD supplied with Axis scales. -
Page 19: Detailed Long Protocol Description
USER MANUAL ME-01 Detailed LonG protocol description Standard communication parameters: 8 bits, 1 stop bit, no parity, baud rate 9600bps, After using key, measurement data is send together with text description (NET, TARE, GROSS) – all set by using Print option. If Print isn’t set then only scale indication is send (as below). - Page 20 D1...DN – threshold value, maximum 8 characters WagaKomputer: without response. Connecting cable WK-1 (scale – computer / 9-pin interface): SCALE COMPUTER Connection cable WD-1 (connects scale with AXIS printer): SCALE KAFKA PRINTER Setting of internal switches of AXIS printer: SW-1...
-
Page 21: Detailed Epl Protocol Description
USER MANUAL ME-01 Detailed EPL protocol description Transmission parameters: 8 bits, 1 stop bit, no parity, baud rate 9600bps, After using key in scale: ScaleLabel printer : set of instruction in EPL-2 language that initialize label printing: - Steering instruction FR"0001"... -
Page 22: Accumulator Change In Aluminium Meters
USER MANUAL ME-01 10. Accumulator change in aluminium meters 1. Remove screws 11 holding plate 12, remove the plate. Take out container with accumulators 13 and place 4 AA format accumulators. The way of packing accumulators into the container is shown on the figure on the left and is also shown on the container. -
Page 23: General Rules Of Using Scale
USER MANUAL ME-01 11. General rules of using scale 1. Before each measurement make sure that zero indicator is displayed. If zero indicator does not display or “----“ communicate appears, press 0 key and wait until zero indication and zero indicator appears. -
Page 24: Balance Checking And Adjustment
USER MANUAL ME-01 12. Balance checking and adjustment It is advised to check scale indication accuracy before and after series of measurement using any load with known weight. To check the scale with legal verification use a calibration weight with valid calibration certificate. In case permissible error is exceeded it is advised to contact the nearest service to calibrate the scale. -
Page 25: Start-Up
USER MANUAL ME-01 13. Start-up Leave the pan empty, plug a scale to the mains with a ground contact The scale proceeds with following start-up actions: Display test. Meter type displaying Program version The scale is now ready to work. -
Page 26: Weighing With Tare
USER MANUAL ME-01 14. Weighing with tare If the scale is not loaded and indicator doesn’t indicate, press key. Zero indication and indicator mean that the scale is ready to work. After putting container (package) tare the scale ... -
Page 27: Scale Menu
USER MANUAL ME-01 15. Scale menu All scales except for basic metrological functions: weighing and taring, have many special functions and configuration options. In order to ease using functions user can create his own (personalized) menu. Creating personalized menu: In „out of the box” scale after pressing MENU... -
Page 28: Menu Navigation Rules
USER MANUAL ME-01 16. Menu navigation rules Choosing menu options: First position of scale menu shows up after pressing Menu key. The position is displayed for about 7 seconds and then the scale sequentially displays next menu positions. Choosing menu position (option) is done by ... - Page 29 USER MANUAL ME-01 key working method: During standard weighing key is used to switch between net and gross indication. When special function e.g. PCS is turned on, using key enables to go back to standard weighing mode.
- Page 30 USER MANUAL ME-01 HR key working method: During normal weighing temporary (5s) readout resolution increase is possible. Return normal indication made automatically. Inscribing numerical values: Inscribing numerical values is needed in some special functions e.g. tArE function requires to inscribe tare values.
- Page 31 USER MANUAL ME-01 Menu diagram: MENU (PCS) (totAL) - personalized function menu created using SEtUP / MEnu - settings SEtUP - creating menu (” “- added to menu) MEnu - choosing product Prod ( ) o ( ) o - choosing user...
- Page 32 USER MANUAL ME-01 - serial ports settings settings SErIAL - port - 1 Port-1 - transmission speed (1200, ... ,115 200 bps) bAUd - bits quantity (7 or 8) bItS - parity control PArItY - transmission type (Stab, no StAb, Auto,Cont.,rEMoVE)
- Page 33 USER MANUAL ME-01 - turn on/off accumulator charging (if the scale is equipped with accumulator) (bAttEry) - automatic turning off - saving accumulator power (as above) (AUto OFF) - scale start zero inscribing (factory zero) (ZEro) - restore default settings for all options...
-
Page 34: Scale Setup (Setup)
USER MANUAL ME-01 Scale setup (SEtUP) SEtUP contains all options used for setting scale work mode: MEnu – creating personalized user menu CALIb – scale sensitivity calibration AutoZEro(ing) – self-maintaining zero indication (unloaded scale) UnIt – weight unit selection ... -
Page 35: Scale Calibration (Calib)
USER MANUAL ME-01 17.1 Scale calibration (CALIb) Press MENU key. Press key when CALIb function appears. The following options will be displayed: -CAL on – calibration with external recommended standard of mass (see technical data). -CAL StP – calibration with external weight, confirmation of succesive steps - MENU key, out –... -
Page 36: Autozeroing Function (Autozer)
USER MANUAL ME-01 17.2 Autozeroing function (AutoZEr) When the function is activated, the scale automatically ensures stable zero indication if the pan is empty or if zero indication was acquired by pressing key. To turn on the function use MENU key and using ... -
Page 37: Weight Unit Selection (Unit)
USER MANUAL ME-01 17.3 Weight unit selection (UnIt) The function allows selecting weighing unit: - CarAt (1 ct= 0,2 g) - carat, - MGrAM (1mg=0,001g) milligram, - KGrAM (1kg=1000g) kilogram, - Pound (1 lb=453,592374g) English pound, - OunCE (1oz=28,349523g) - ounce,... -
Page 38: Serial Port Parameters Setting (Serial)
USER MANUAL ME-01 17.4 Serial port parameters setting (SErIAL) function allows setting independently communication parameters of both of serial ports Port-1 and Port-2 (executed in RS232C, RS485, USB or LAN standard): - transfer protocol (Prot): LonG – cooperation with printer or computer, EPL –... -
Page 39: Printout Configuration (Print)
USER MANUAL ME-01 17.5 Printout configuration (PrInt) Function is used for printing additional information stored in scale memory, weighed product identification data and scale operator id. That information is inscribed using scale keys or scanner. After entering selected port (scale can... - Page 40 USER MANUAL ME-01 Sample printout during normal weighing (all printout positions deactivated): 20.07 kg 20.04 kg 20.04 kg Sample printout during normal weighing with clock option (all printout positions deactivated): 20.07 kg 2012-11-08 10:01 20.04 kg 2012-11-08 10:01 20.04 kg 2012-11-08 10:01...
-
Page 41: Setting Backlight Function (B_Light)
USER MANUAL ME-01 17.6 Setting backlight function (b_LIGHt) The function is used for choosing the work mode of scale display backlight: - b_L OFF – switch backlight off, - b_L on – switch backlight permanently on, - b_L ECO – switch off after 30 seconds of inactivity (no load changes and no key operation), - b_L bAt –... -
Page 42: Analog Out Configuration (Analog)
USER MANUAL ME-01 17.7 Analog out configuration (AnALoG) This option enables to set-up analog out (4-20mA or 0-10V) working method used e.g. in PLC regulators: AnG rnG – inscribing Max value AnG CFG – working mode configuration (PLUS – workmode for only positive values, MinuS – only for... -
Page 43: Entering Reference Zero Value (Zero)
USER MANUAL ME-01 17.8 Entering reference zero value (ZErO) Note: This function is enabled in non-legalized scales only. ZEr0 function allows entering new value of reference zero (value referred to empty pan) without need of contacting with authorised service centre. -
Page 44: Special Functions Description
18. Special functions description All scales besides basic metrological functions: weighing and taring, have a set of special functions. Depending on meter type functions set differs. Below a list of functions available in standard ME-01 type meters: Products data base (Prod), ... -
Page 45: Products And Users Database (Prod I User)
(Found communicate). Barcode reader enables also to insert numerical data conveniently (standard ME-01 meter doesn’t have numerical keys). Using alphanumeric code (for example 128 code) it can be also used to insert names of products and users. - Page 46 USER MANUAL ME-01 Inscribing data to base Prod and USEr options enables adding and deleting product and user data. For products database available options are: - Prod Id – searching for product in database by inscribing (or scanning) id number or barcode, - ProdCLr (shows up if product was selected earlier) –...
- Page 47 USER MANUAL ME-01 Users database is edited by similar function named USEr and consists of several options: - USEr Id – user identification number, - USErCLr (shows up if user was selected earlier) – turns off actual user selection, - USEr nA – user name (inscribed from PC or scanner), - Prn_U –...
- Page 48 USER MANUAL ME-01 Weighing results and data transmission from scale to computer or to printer To fully use database capabilities other options must also be used: SeriaL, LabeL (for label printer) and Print. Serial option enables to select proper transmission protocol for each port. Thereby label printer can work independently.
-
Page 49: Pieces Counting Function (Pcs)
USER MANUAL ME-01 18.2 Pieces counting function (PCS) This function enables to count identical pieces, e.g. turnbuckles or buttons. A measurement is performed in two phases: - first phase - single piece weight calculation on the basis of defined pieces amount (5, 10, 20, 50, 100, 200 or 500 pieces), - second phase –... -
Page 50: Percentage Weighing Function (Perc)
USER MANUAL ME-01 18.3 Percentage weighing function (PErC) 100% This function allows displaying weighing result in percents. A measurement is performed in two phases: - first phase – weighing a reference sample (100%), - second phase – measuring specific sample as a percentage of the reference sample. -
Page 51: Label Choosing Function (Label)
USER MANUAL ME-01 18.4 Label choosing function (LAbEL) This function is used in scale with EPL (SErIAL function) data protocol. This protocol enables label printout with actual scale indication and chosen data from PrInt special function (variable data), for example date and time. -
Page 52: Weighing Animals Function (Loc)
USER MANUAL ME-01 18.5 Weighing animals function (LOC) The function allows weighing animal moving on the scale. Press MENU key. When LOC function is displayed press key. following options appear display successively: - LOC oFF – leave the function, - LOC on –... -
Page 53: Maximum Value Indication Function (Up)
USER MANUAL ME-01 18.6 Maximum value indication function (UP) This function allows holding maximum (or minimum) value that is indicating at the moment. Before measurement scale should be tared. Function has following options: -UP oFF – function off, -HIGH – holding maximum value, -LOW –... -
Page 54: Force Measuring Function (Newton)
USER MANUAL ME-01 18.7 Force measuring function (nEWton) Function activation causes displaying result in force units (N). Press MENU key. Using key choose NEWto function. Function has several options: - nEW oFF – function off, - nEW on – measurement in Newtons, - ArM –... -
Page 55: Total Weight Function (Total)
USER MANUAL ME-01 18.8 Total weight function (totAL) The function allows calculating total weight for series of measurements, which can be greater than scale capacity. It allows calculating total weight as well as average value. Press MENU key. ... - Page 56 USER MANUAL ME-01 To leave the function with clearing total register, select totAL function from menu and choose tot oFF option. Scale prints the communicate informing about clearing registers. The form of standard receipt (measurement number and weight) after each measurement: Print configuration option (chapter 17.5) enables to extend standard receipt form.
-
Page 57: Checkweighing Function (Thr)
USER MANUAL ME-01 18.9 Checkweighing function (thr) This function allows comparing weighing result with two programmed reference values: lower and upper threshold. Comparison result is signalled with indicators (MIN, OK, MAX) and sound signal generated when threshold values are exceeded. - Page 58 USER MANUAL ME-01 Operation sequence: Press MENU key and choose thr pressing key. The following options are displayed successively: - thr oFF – deactivate the function, - thr on – activate the function, - thr Prn – check last threshold values (press key several times), - thr CFG –...
- Page 59 USER MANUAL ME-01 Relays connection diagram: Imax < 25mA Relays output is the open collector transoptor output with load capacity 25mA / 24V. Transmitter inputs must be protected with diodes, e.g. 1N4148. It is advised to use MS3K/P electronic board (sold separately), consisting of RM96P transmitters, with DC24V input voltage and AC250V, 3A output.
-
Page 60: Setting Date And Time Function (Date)
USER MANUAL ME-01 18.10 Setting date and time function (dAtE) The function allows setting current date and time of scale internal clock and mode of its use. The function has the following options: - dAt oFF – deactivate date and time during printout of current weighing result, - dAt on –... -
Page 61: Radio Communication Channel Choice Function (Rf Chn)
USER MANUAL ME-01 18.11 Radio communication channel choice function (rF CHn) Function enables choosing radio communication channel between the scale and a pilot. In scale and in pilot the same radio channels must be chosen. Function should be used when communication is disturbed by other devices that use the same communication channel. -
Page 62: Charging Accumulators Function (Battery)- Option
USER MANUAL ME-01 18.12 Charging accumulators function (bAttErY)- option bAttErY function allows switching on or off charging accumulators during work with feeder and checking their power level. The function has the following options: - bAt OFF – charging off (option required if ordinary batteries are used !!!), - bAt on –... -
Page 63: Automatic Switching Off The Scale Function (Autooff)
USER MANUAL ME-01 18.13 Automatic switching off the scale function (AutoOFF) The function is helpful in scales supplied from accumulators. The function causes scale to switch off automatically. Press MENU key. When AutoOFF is displayed press key. The following options appear successively on display: - AOF oFF –... -
Page 64: Statistical Calculations Function (Stat)
USER MANUAL ME-01 18.14 Statistical calculations function (StAt) This function evaluates from series of measurements (max 1000) statistical parameters of weighting process. Adding successively measurements to register is automatic and it occur after the scale is loaded and its indications stabilize. - Page 65 USER MANUAL ME-01 Order of operations: Press MENU key. When StAt is displayed press key. The following options are displayed: - StA Prn – monitoring and printout of statistical data, - StA oFF – deactivate function, - StA –...
- Page 66 USER MANUAL ME-01 Pressing key printouts estimated values and histogram : Nominal - nominal value, Tolerance - accepted value in percentage. N - number of sample IN TOL. – number of samples in toleranc -TOL – amount of measurements under allowable lower value +TOL –...
-
Page 67: Paperweight Calculation (Pap)
USER MANUAL ME-01 18.15 Paperweight calculation (PAP) This function enables to calculate paperweight of 1m of paper basing on samples of known area. For quick access, the function is accessible directly by pressing MENU key. The balance must be tared just before the measurement. -
Page 68: Troubleshooting And Maintenance
USER MANUAL ME-01 19. Troubleshooting and maintenance 1. The scale should be kept clean. The balance must be kept clean and protected from dust, and aggressive liquids. In order to clean it is recommended to wipe the scale with cloth soaked in soapy water and then dry. -
Page 69: Declaration Of Conformity Ce
USER MANUAL ME-01 Declaration of Conformity CE The last two digits of the year in which the CE marking was affixed: 16 AXIS Spółka z o.o. 80-125 Gdańsk, ul. Kartuska 375B confirm with all responsibility that weighing meters: ME-01 marked with CE mark comply with the following: 1.
