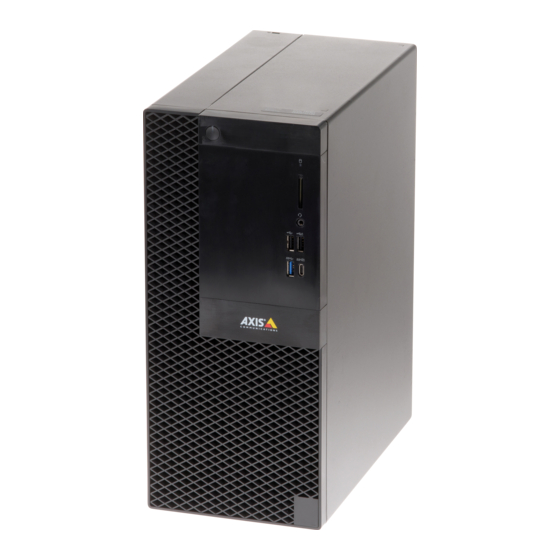

AXIS Camera Station S1116 MT Recorder
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1116 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis S1116

Summary of Contents for Axis S1116

  • Page 1 AXIS Camera Station S1116 MT Recorder User Manual...

  • Page 2: Table Of Contents

    Configure AXIS Camera Station ........

  • Page 3: About Your Device

    Camera Station video management software including licenses plus all necessary system software. The system configuration can easily be imported from AXIS Site Designer, and AXIS Camera Station lets you take full advantage of Axis wide range of video surveillance devices. With redundant enterprise-grade hard disks, operating system stored on solid-state drive (SSD), the recorder series provides high-performance and reliability for your system.

  • Page 4: Get Started

    License a system with Internet connection on page 14 License a system without Internet connection on page 14 6. Connect your system to the AXIS Camera Station mobile viewing app. See Configure AXIS Secure Remote Access To watch this video, go to the web version of this document.

  • Page 5: Install Your Device

    AXIS Camera Station S1116 MT Recorder Install your device Install your device...
  • Page 6 AXIS Camera Station S1116 MT Recorder Install your device...
  • Page 7 AXIS Camera Station S1116 MT Recorder Install your device...
  • Page 8 AXIS Camera Station S1116 MT Recorder Install your device...
  • Page 9 AXIS Camera Station S1116 MT Recorder Install your device...

  • Page 10: Configure Your Device

    AXIS Camera Station Service Control automatically starts after the installation is complete. Double-click the AXIS Camera Station Client icon to start the AXIS Camera Station client. When starting the client for the first time, it automatically attempts to log in to the AXIS Camera Station server installed on the same computer as the client.
  • Page 11 AXIS Camera Station S1116 MT Recorder Configure your device Configure recording method 1. Go to Configuration > Recording and events > Recording method. 2. If you want to enable motion detection recording: 2.1 Select a camera. 2.2 Turn on Motion detection.
  • Page 12 Click Browse to select the location to export the recordings. Select Include Axis File Player, Include notes, and Add digital signature. 7. Click Export. 8. Select Use password and enter your password for the digital signature. Click OK.
  • Page 13 AXIS Camera Station S1116 MT Recorder Configure your device In this example, the exported files include the recordings in the .asf format, the notes in the .txt format, and AXIS File Player. 2. Double-click AXIS File Player. The exported recordings will be automatically played.

  • Page 14: License A System With Internet Connection

    License a system with Internet connection Both the AXIS Camera Station client and the server must be connected to the internet. 1. In the AXIS Camera Station client, go to Configuration > Licenses > Management and click Go to AXIS Camera Station License Portal.
  • Page 15 AXIS Camera Station S1116 MT Recorder Configure your device 3.3 Check that your license keys are shown in Configuration > Licenses > Keys. To watch this video, go to the web version of this document. www.axis.com/products/online-manual/48503#t10129682 AXIS Camera Station offline license registration...

  • Page 16: Manage Windows® User Accounts

    AXIS Camera Station S1116 MT Recorder Manage Windows® user accounts Manage Windows® user accounts Create a user account To help keep your personal data and information more secure, we recommend that you add a password for each local account. Important Once you create a password for a local account, don't forget it.

  • Page 17: Change A User Account's Password

    AXIS Camera Station S1116 MT Recorder Manage Windows® user accounts 1. Go to Settings > Accounts > Other people. 2. Go to the account you want to remove and click Remove. Change a user account's password 1. Log in with an administrator account.

  • Page 18: Manage Axis Camera Station User Accounts

    Manage AXIS Camera Station user accounts Manage AXIS Camera Station user accounts Configure user permissions Go to Configuration > Security > User permissions to view a list of the users and groups that have been added to AXIS Camera Station. Note Administrators of the computer on which the AXIS Camera Station server is installed are automatically given administrator privileges to AXIS Camera Station.

  • Page 19: User Or Group Privileges

    4. Select Users or Groups to search for only users or groups. 5. The list of users or groups is displayed. Users and groups that have already been added to AXIS Camera Station are not listed. If there are too many users or groups, the search result is not displayed. Use the Type to search field to refine the search and find a specific user or group.
  • Page 20 The following access privileges are available for users or groups with the Operator or Viewer role. You can select multiple views and set the access privileges. • Access: Allow access to the views in AXIS Camera Station. • Edit: Allow to edit the views in AXIS Camera Station.

  • Page 21: Manage Your Device

    AXIS Camera Station S1116 MT Recorder Manage your device Manage your device Update Windows® Windows® 10 periodically checks for updates. When an update is available, your device automatically downloads the update but you've to install it manually. Note Recording will be interrupted during a scheduled system restart.

  • Page 22: Configure Raid

    Enable RAID for AXIS S1116 MT recorders Note You don’t need to enable RAID for AXIS S1116 Racked recorders. This is only necessary for AXIS S1116 MT recorders. 1. Power on your device and rapidly press F12 until the Axis logo appears.

  • Page 23: Add An Additional Storage

    Physical Disks. Note Only RAID 0 and RAID 1 are available on the AXIS S1116 MT recorders because there is only physical space for an additional single drive. 2. In the Intel(R) Rapid Storage Technology menu, select Create RAID Volume and press ENTER.

  • Page 24: Troubleshooting

    4. After the ISO to USB tool is complete, take the USB drive and plug it into your device. 5. Start your device and before the AXIS splash screen appears press F12. We recommend that you tap the F12 key repeatedly as the device boots fast.

  • Page 25: Product Overview

    AXIS Camera Station S1116 MT Recorder Product overview Product overview Front and rear sides Audio line out PS2 keyboard port Serial port PS2 mouse port DisplayPort™ 1.2 USB 3.1 USB 2.0 Ethernet (RJ45) 1 GbE Power connector 10 System power LED...
  • Page 26 AXIS Camera Station S1116 MT Recorder Product overview 14 USB 2.0 15 USB 3.1 16 USB 3.1 Type-C...

  • Page 27: Need More Help

    AXIS Camera Station S1116 MT Recorder Need more help? Need more help? Useful links • AXIS Camera Station user manual • Configure AXIS Secure Remote Access • What to include in an Antivirus allowlist for AXIS Camera Station Contact support Contact support at axis.com/support.
  • Page 28 User Manual Ver. M3.3 AXIS Camera Station S1116 MT Recorder Date: June 2021 © Axis Communications AB, 2019 - 2021 Part No. T10140200...
