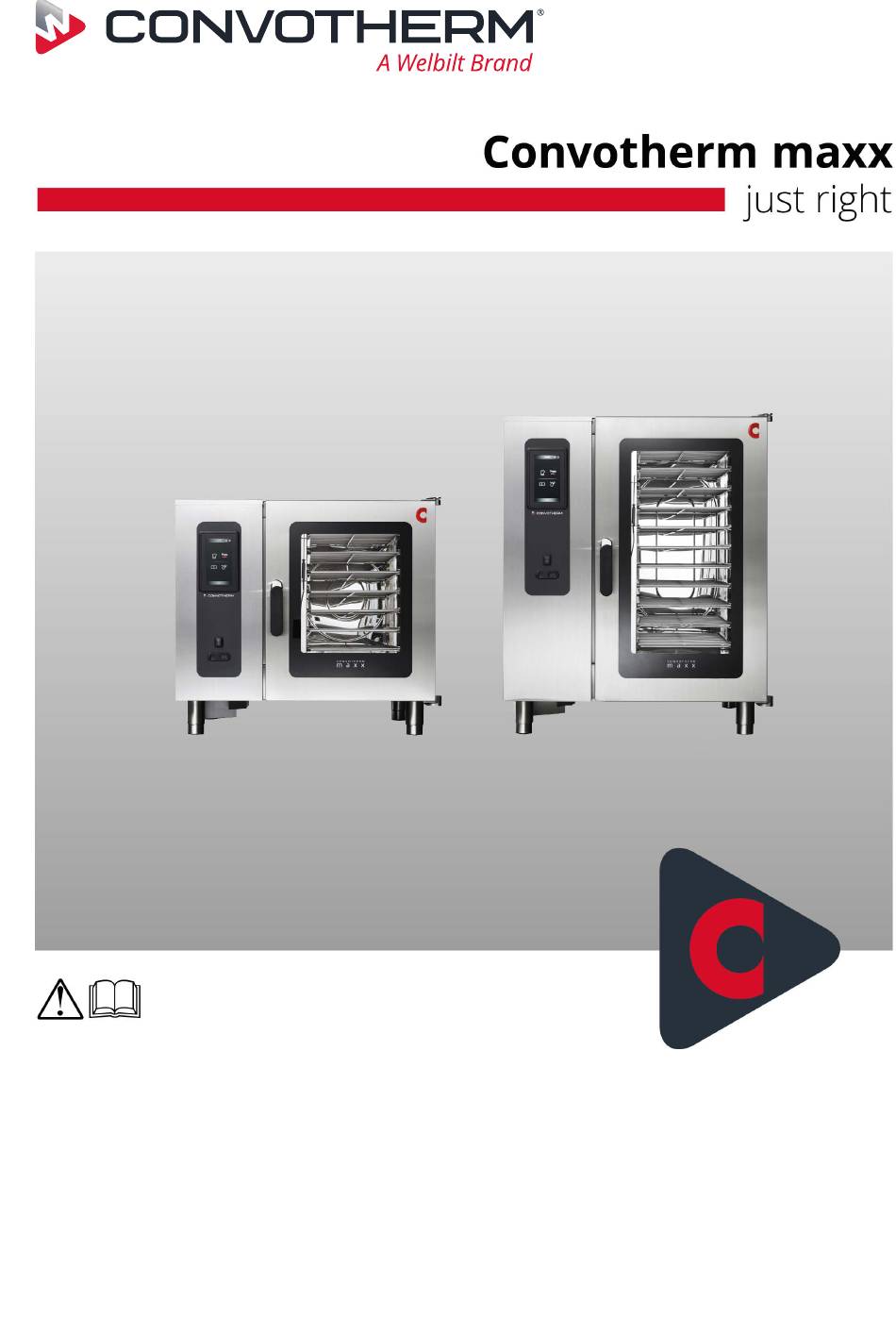

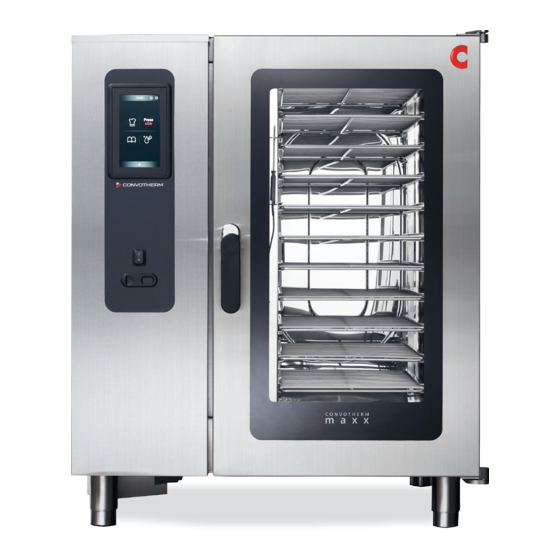

  • Page 1 Combi oven Cmx eT 6.10 ES / Cmx eT 10.10 ES Operating instructions - Original, ENG Advancing Your Ambitions...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents General information About these operating instructions Essential reading relating to safety The user interface at a glance How the user interface works The basic layout of the software The Home Screen Power-save mode Quick-select cooking with Press&Go How Press&Go works The 'Press&Go' menu Selecting shelves in Press&Go...

  • Page 4: General Information

    1 General information 1  General information 1.1  About these operating instructions Purpose These operating instructions are intended to provide all those people who use the combi oven with an overview of the easyTouch software and how to use it, and to enable them to perform essential tasks using the software.

  • Page 5: Essential Reading Relating To Safety

    1 General information 1.2  Essential reading relating to safety Safety information in the customer documentation Safety information relating to the combi oven appears only in the installation manual and the user manual. The installation manual contains the safety information for the tasks covered by the manual and which are performed when moving, setting up and installing the appliance and when putting the appliance into service and removing the appliance from service.

  • Page 6: The User Interface At A Glance

    2 The user interface at a glance 2  The user interface at a glance 2.1  How the user interface works Principle of operation easyTouch is the name of the user interface for your combi oven. You can operate this software easily with one finger via a touch screen. All the combi-oven functions can be accessed from various menus of this easyTouch user interface.

  • Page 7: The Basic Layout Of The Software

    2 The user interface at a glance 2.2  The basic layout of the software The software layout Header Main area Footer The buttons and indicators in the header The header displays various buttons and indicators depending on the menu and function selected. Current menu Indicates the current menu e.g.
  • Page 8 2 The user interface at a glance The main area The main area displays various buttons and indicators depending on the menu and function selected. Dark grey button Function available or selected e.g. core temperature Light grey button Function unavailable or not selected Close the menu Closes the menu Close the window...

  • Page 9: The Home Screen

    2 The user interface at a glance 2.3  The Home Screen Access to the Home Screen Access to this menu is password-protected and available only to certain users, for instance in order to edit existing cooking profiles. The functions in the Home Screen Access to all the available operating modes ■...

  • Page 10: Power-Save Mode

    2 The user interface at a glance The Navigation menu buttons The navigation menu displays all the operating modes currently available for selection. Home Screen Opens the Home Screen Access is password-protected and for certain user profiles Cleaning Opens the 'Cleaning' menu Selection of oven cleaning profiles 2.4  Power-save mode The power-save mode screen...

  • Page 11: Quick-Select Cooking With Press&Go

    3 Quick-select cooking with Press&Go 3  Quick-select cooking with Press&Go 3.1  How Press&Go works Quick-select cooking with Press&Go In 'Press&Go' you can provide the user with specific preset cooking profiles, which the user can now simply select but not modify. The user selects the cooking profile required and the cooking operation starts running immediately.

  • Page 12: The 'Press&Go' Menu

    3 Quick-select cooking with Press&Go 3.2  The 'Press&Go' menu The functions in the 'Press&Go' menu Open tried and-tested cooking profiles and start cooking immediately ■ Select shelf levels; see page 14 to find out how ■ Layout of the 'Press&Go' menu Indicates selected cooking profile Shelf levels Operating instructions...
  • Page 13 3 Quick-select cooking with Press&Go The shelf buttons Number identifying the available shelves Empty Shelf unoccupied Selected Shelf selected Indicates the cooking profile by Photo ■ Name of cooking profile ■ Cooking Shelf occupied and cooking operation in progress Indicates the cooking profile by Photo ■...

  • Page 14: Selecting Shelves In Press&Go

    3 Quick-select cooking with Press&Go 3.3  Selecting shelves in Press&Go This is how you select the shelves for cooking in Press&Go Select a product group from the 'Press&Go' menu. Select a cooking profile. Select one or more shelves. Caution: The next step of loading the food onto the shelves will start the cooking operation immediately.

  • Page 15: The 'Press&Go' Cooking Workflow

    3 Quick-select cooking with Press&Go 3.4  The 'Press&Go' cooking workflow Requirements You have consulted the user manual to acquaint yourself with the hazards and safety precautions ■ and also with the tasks and cooking workflows. You have selected a cooking profile in the 'Press&Go' menu, selected the shelves, and followed ■...

  • Page 16: Cancelling A Cooking Operation

    3 Quick-select cooking with Press&Go 3.5  Cancelling a cooking operation This is how you cancel the cooking operation Select one or more shelves. Confirm within 5 seconds. Operating instructions...

  • Page 17: Custom Cooking - Nice And Easy

    4 Custom cooking - nice and easy 4  Custom cooking - nice and easy 4.1  Custom cooking at a glance Access to the 'Custom cooking' menu Access to this menu is password-protected and available only to certain users, for instance in order to edit existing cooking profiles.

  • Page 18: The 'Custom Cooking' Menu

    4 Custom cooking - nice and easy 4.2  The 'Custom cooking' menu The functions in the 'Custom cooking' menu Manual input of cooking data for your custom cooking profile; see page 21 to find out how ■ Making changes to cooking data for a cooking profile opened from the cookbook ■...
  • Page 19 4 Custom cooking - nice and easy The Cooking parameters buttons Cooking temperature Enter the cooking temperature in C° or °F Cooking time Enter the cooking time in hh:mm:ss Core temperature Enter the core temperature in C° or °F Fan speed Regulate the flow speed in the cooking chamber, 3 levels HumidityPro...
  • Page 20 4 Custom cooking - nice and easy The buttons for cooking step navigation Delete cooking step Delete all data for the current cooking step Go back one cooking step Scroll back one step in the cooking profile Cooking steps view Indicates current cooking step / total number of cooking ■...

  • Page 21: Principles Of Entering A Cooking Profile

    4 Custom cooking - nice and easy 4.3  Principles of entering a cooking profile This is how you enter a cooking profile via the 'Custom cooking' menu Select a cooking mode e.g. convection Enter the cooking temperature. Enter the cooking time. Select a level for the fan speed.

  • Page 22: Save Cooking Profile In The Cookbook

    4 Custom cooking - nice and easy 4.4  Save cooking profile in the cookbook Requirements You have entered a new cooking profile in the 'Custom cooking' menu. ■ This is how you save a new cooking profile in the cookbook Press the 'Save' button In the 'Custom cooking' menu. Enter a new cooking profile name.

  • Page 23: The 'Custom Cooking' Process Menu

    4 Custom cooking - nice and easy 4.5  The 'Custom cooking' process menu The functions available during the cooking process Adjust the cooking temperature ■ Use TrayTimer ■ Cancel a cooking operation ■ Layout of the 'Custom cooking' process menu Area showing target or set value Progress and action indicator Action area The cooking settings buttons...
  • Page 24 4 Custom cooking - nice and easy The Progress and action indicator buttons Preheat Preheats the cooking chamber to the set cooking tempera‐ ture Cool down Cools the cooking chamber to the set cooking temperature Hold Holds the temperature inside the oven for a specified time after preheating or cooling down Hold time can be adjusted, preset to 20 s Loading...
  • Page 25 4 Custom cooking - nice and easy Cooking steps indi‐ Displays the number of cooking steps cator Active cooking step Indicates which cooking step is in progress Cooking step finish‐ Indicates which cooking step has finished The Action area buttons Stop Stop a cooking operation that is running Confirm...

  • Page 26: The Cooking Workflow For 'Custom Cooking

    4 Custom cooking - nice and easy 4.6  The cooking workflow for 'Custom cooking' Requirements You have consulted the user manual to acquaint yourself with the hazards and safety precautions ■ and also with the tasks and cooking workflows. You have entered a cooking profile in the 'Custom cooking' menu; see page 21 to find out how. ■...

  • Page 27: Working With The Cookbook

    5 Working with the cookbook 5  Working with the cookbook 5.1  How the cookbook works Access to the 'Cookbook' menu Access to this menu is password-protected and available only to certain users, for instance to edit ex‐ isting cooking profiles, product groups and favourites. The cooking profiles in the cookbook A cooking profile is a combination of cooking parameters such as cooking temperature and cooking time.

  • Page 28: The 'Cookbook' Menu

    5 Working with the cookbook 5.2  The 'Cookbook' menu The functions in the 'Cookbook' menu Open cooking profiles and then edit and re-save them via the 'Custom cooking' menu. ■ Group and manage similar cooking profiles in product groups ■ Define favourites for cooking with Press&Go ■...
  • Page 29 5 Working with the cookbook The buttons in the area for selecting product groups / cooking profiles Product group e.g. Crois‐ Icons of all available product groups sants Cooking profile e.g. Crois‐ Icons of all available cooking profiles sants Tick Tick your selection Scroll bar Scroll vertically to display more menu content...

  • Page 30: Creating A New Product Group

    5 Working with the cookbook 5.3  Creating a new product group This is how you create a new product group in the cookbook In the 'Cookbook' menu in the 'Product groups' main selection area, press the 'Edit' button. Press the 'Add' button. Enter a new product name.

  • Page 31: Deleting A Cooking Profile From The Cookbook

    5 Working with the cookbook 5.4  Deleting a cooking profile from the cookbook This is how you delete a cooking profile from the cookbook In the 'Cookbook' menu, in the 'Cooking profiles' main selection area, press the 'Edit' button. Select the cooking profile. Press the 'Delete' button.

  • Page 32: Cleaning

    6 Cleaning 6  Cleaning 6.1  Summary of the cleaning operations What do I need in order to clean? In order to clean the cooking chamber of your combi oven, you need a cleaning profile suitable for the level of soiling. You can select this cleaning profile in the 'Cleaning' menu. Before starting a cleaning process, you must always be familiar with the rules and hazard warnings in the user manual that relate to safe working during cleaning, and you must follow the instructions given there.

  • Page 33: The 'Cleaning' Menu

    6 Cleaning 6.2  The 'Cleaning' menu The functions in the 'Cleaning' menu Select and run cleaning profiles ■ Layout of the 'Cleaning' menu Cleaning profiles The Cleaning profiles buttons Quick Rinse Rinse with water only Express Express cleaning Light Light cleaning level Heavy Intense cleaning level Care Step...

  • Page 34: The 'Cleaning' Process Menu

    6 Cleaning 6.3  The 'Cleaning' process menu The functions available during the cleaning process Cancel the cleaning operation ■ Layout of the 'Cleaning' process menu Indicators area Progress and action indicator Action area The Progress and action indicator buttons Remove food Prompt to check the cooking chamber and remove any food it may contain Cleaning operation...
  • Page 35 6 Cleaning The Action area buttons Stop Stop a cleaning operation that is in progress Confirm Confirm action Operating instructions...

  • Page 36: The Cleaning Workflow For Fully Automatic Oven Cleaning

    6 Cleaning 6.4  The cleaning workflow for fully automatic oven cleaning Requirements You have consulted the user manual to acquaint yourself with the hazards and safety precautions ■ and also with the tasks and cleaning workflows. The appliance door is closed. ■...

  • Page 37: Error Indicators During The Cleaning Process

    6 Cleaning 6.5  Error indicators during the cleaning process The error indicators Caution Warning indicator during the cleaning operation Rinse out Indicates that automatic safety rinsing is being carried out e.g. after cancelling a cleaning operation Operating instructions...

  • Page 38: Making Settings In The Settings Menu

    7 Making settings in the Settings menu 7  Making settings in the Settings menu 7.1  The Settings at a glance Appliance settings and access permissions You can make appliance settings for your combi oven via the 'Settings' menu. Access to appliance settings can be linked to access permissions for different user groups, in other words they can only be accessed with a password.

  • Page 39: The 'Settings' Menu

    7 Making settings in the Settings menu 7.2  The 'Settings' menu Layout of the 'Settings' menu Settings Operating instructions...
  • Page 40 7 Making settings in the Settings menu The Settings buttons Device information Information about the appliance and the software version General Settings Language setting for the user interface ■ Date and time settings ■ Selection of °C or °F for the temperature display ■...

  • Page 41: Operating The Appliance In The Event Of A Fault

    8 Operating the appliance in the event of a fault 8  Operating the appliance in the event of a fault 8.1  Working in the event of a fault The procedure in the event of a fault If the 'System error' indicator is displayed, this indicates that a system fault has occurred during opera‐ tion of your combi oven.

  • Page 42: The 'Error Messages' Menu

    8 Operating the appliance in the event of a fault 8.2  The 'Error messages' menu Layout of the 'Error messages' menu Display area for errors Action area Operating instructions...
